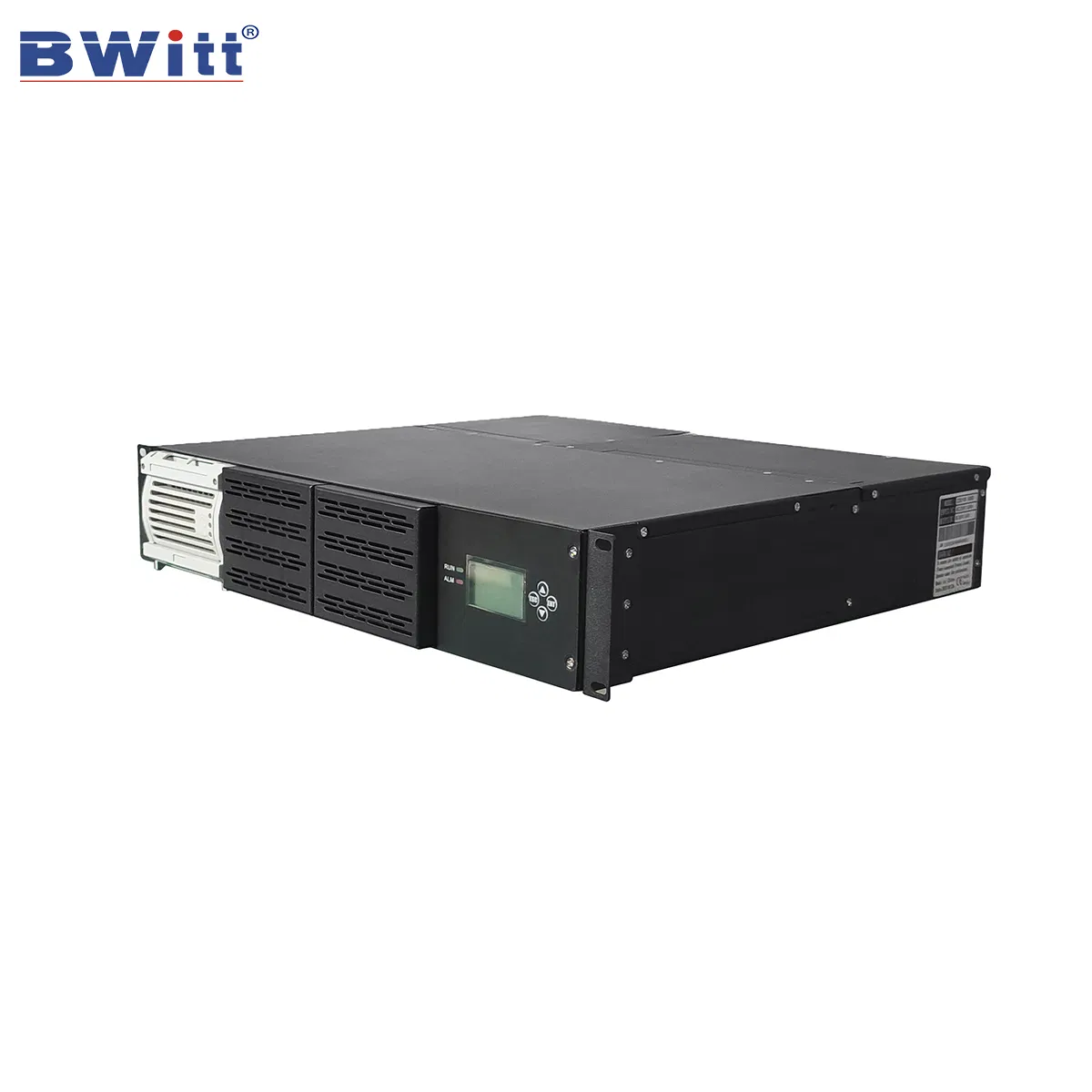

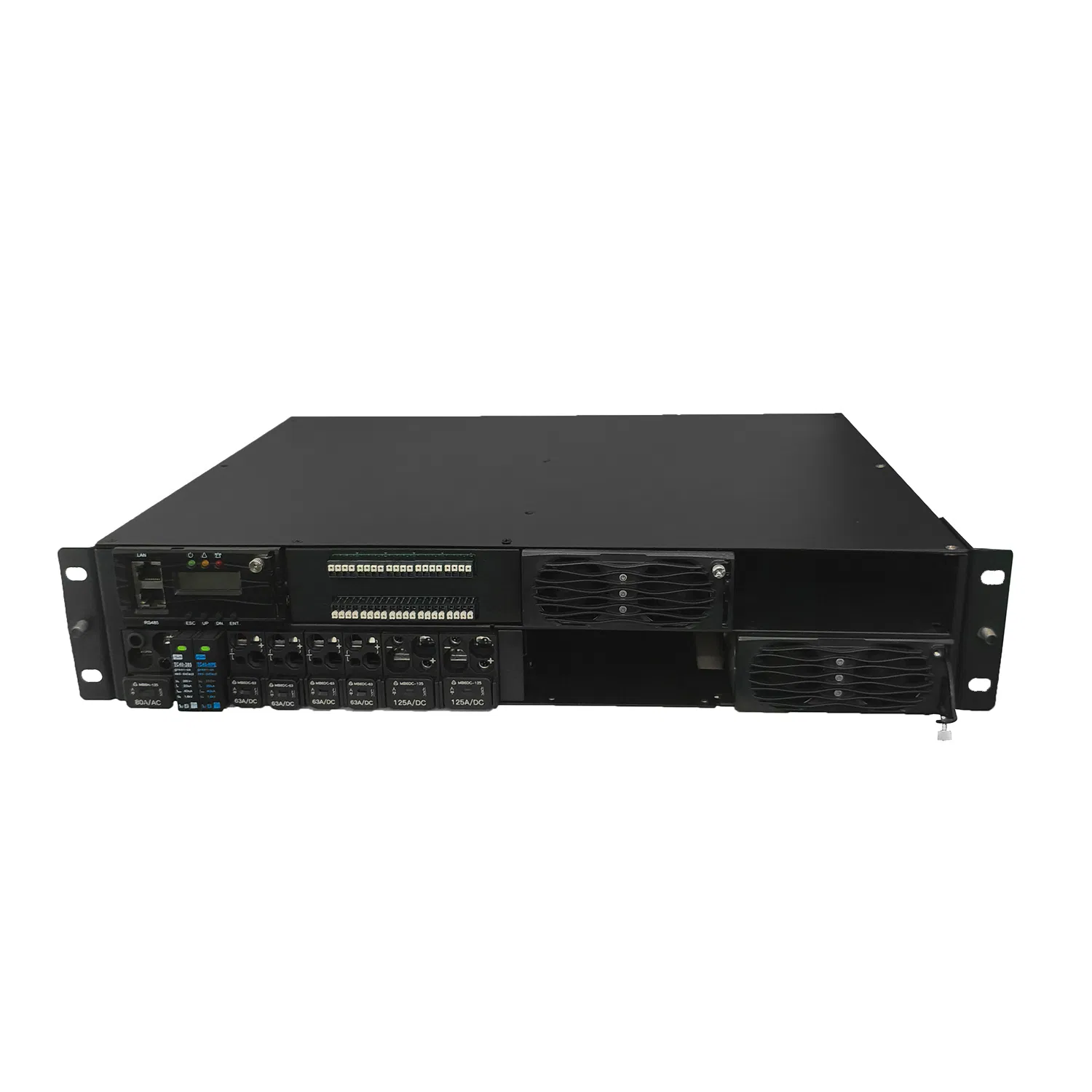

2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
1 / 5
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System
2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System

2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

✓ Basic Information
Model NO.
BVT220/24-60AS
Output Power
1800W
Input Voltage
220V
Connection Mode
Parallel Switching Power Supply
Starting Mode
Self-excited Switching Power Supply
Modulation System
PWM
Certification
CE, ISO
Product Name
Rectifier System
Specification
482*410*88mm
Origin
China
★ Product Features
RCT2000 Series Rectifier System (24Vdc)
Wide Range
Operating range of AC input voltage: 90~290Vac.
Compact Design
19-inch rackmount shelf for easy integration.
Smart Monitoring
Real-time status detection with sound-light alarms.
Battery Management
Advanced battery management with temperature detection.

Embedded DC Power System is widely deployed in Telecom and Industrial environments. The system consists of power distribution units, rectifier modules, and monitoring modules. Configurations can be fully customized to meet specific power requirements.

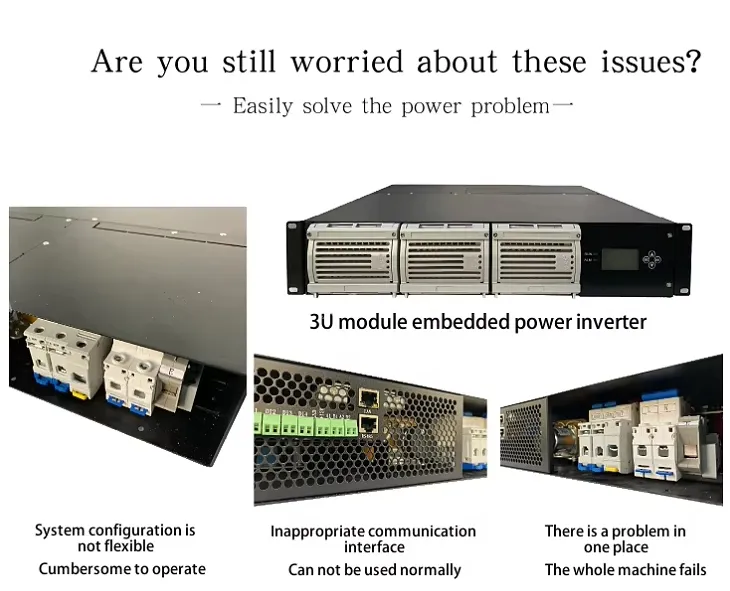

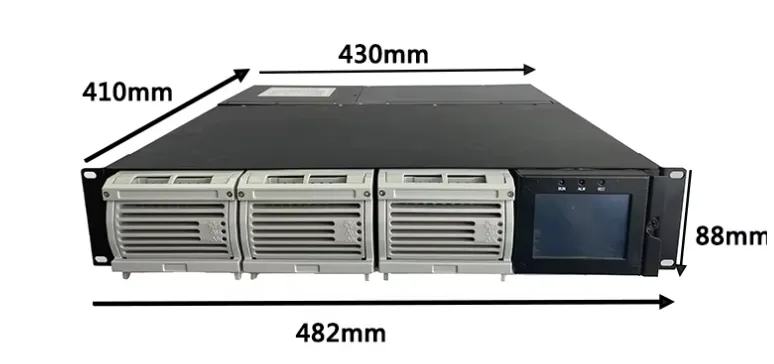

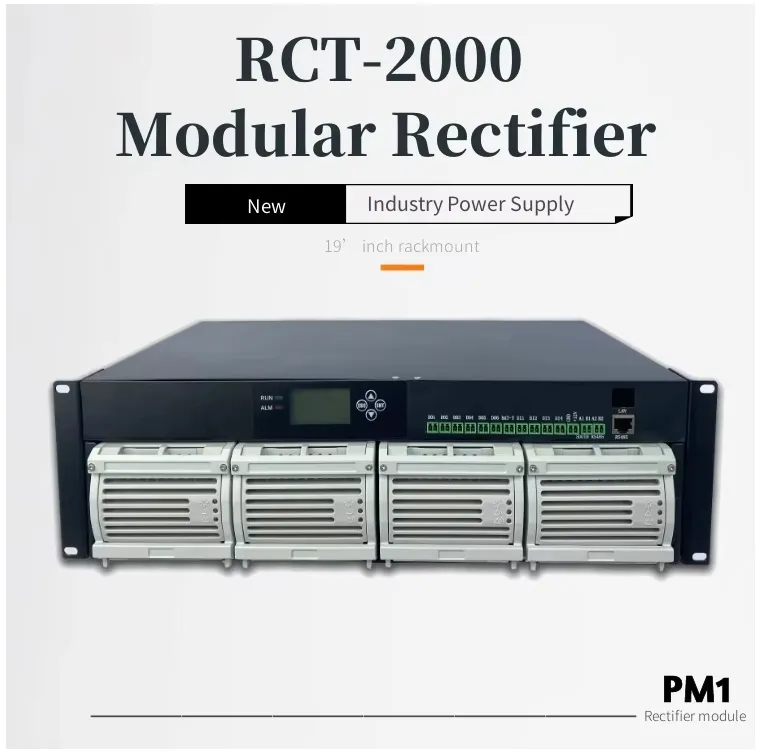

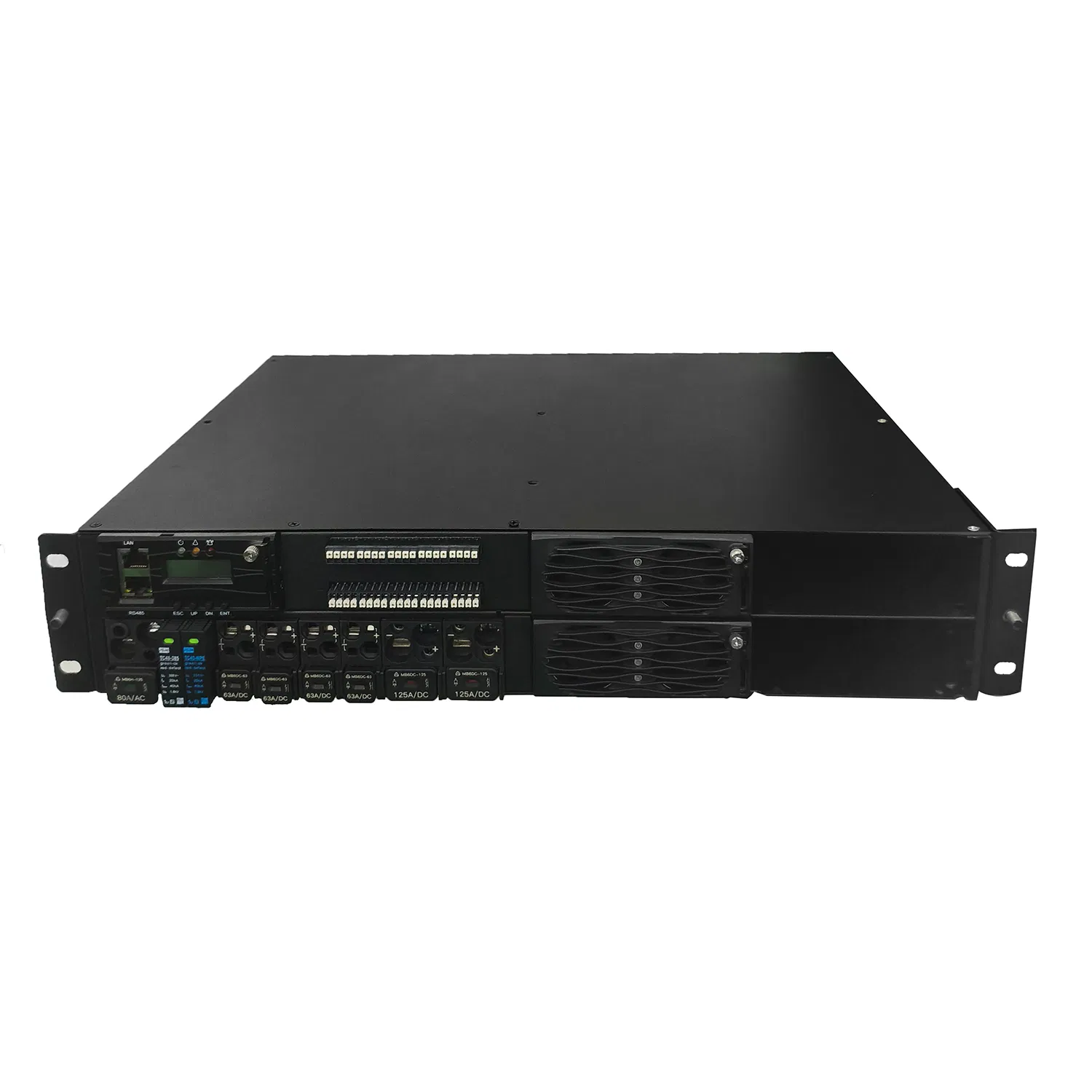

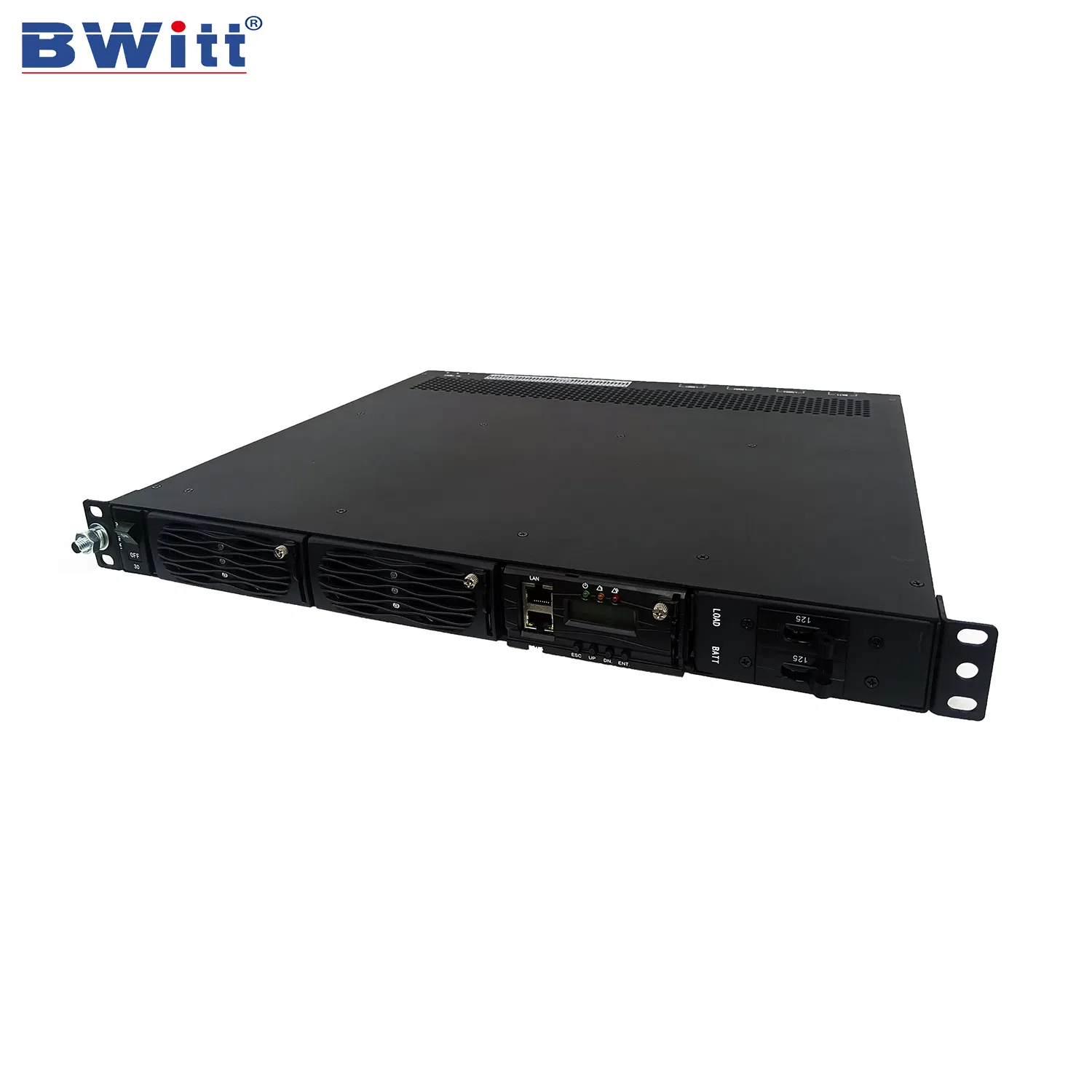

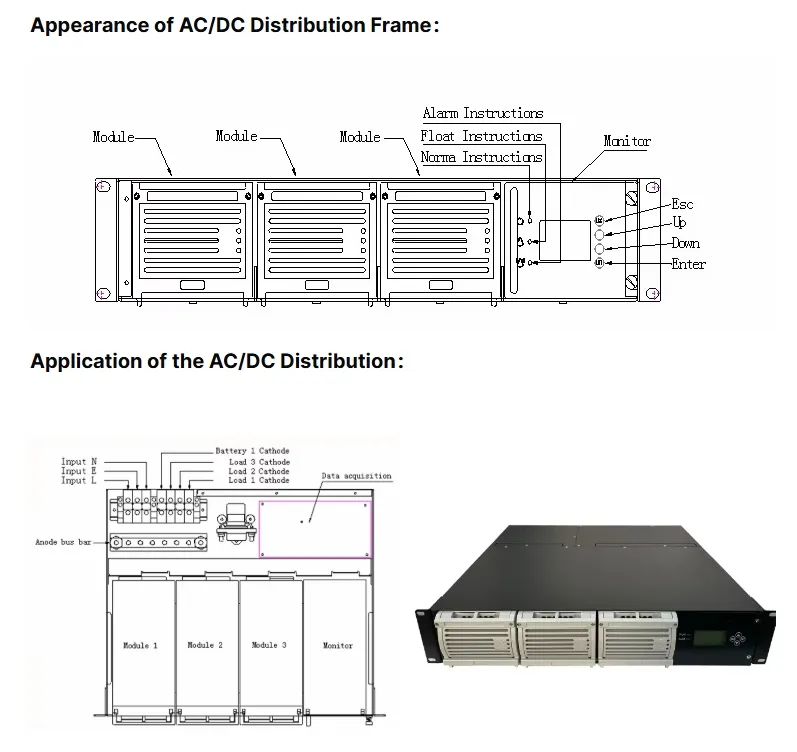

Rectifier System Front View Rectifier System Details Rack Mount System Interface View
⚙ Technical Specifications
Parameter Specification
Rectifier ModuleBR481800 1PCS
Efficiency93.2%
Power Capacity (Max)1800W
Output Voltage21-29VDC (26.7Vdc nom)
Output Current (Max)66A (Adjustable 1-120A)
Input Voltage Range85Vac-300Vac
Operating Temp.-40 to +55°C
Dimensions482mm * 380mm * 88mm (2RU)
WeightApprox. 14KG
☰ Manufacturing Excellence

The manufacturer specializes in the production of rack inverters, STS, and switching power supplies. Products are known for exceptional performance and reliability, used extensively in telecommunications, data centers, and energy storage industries globally.

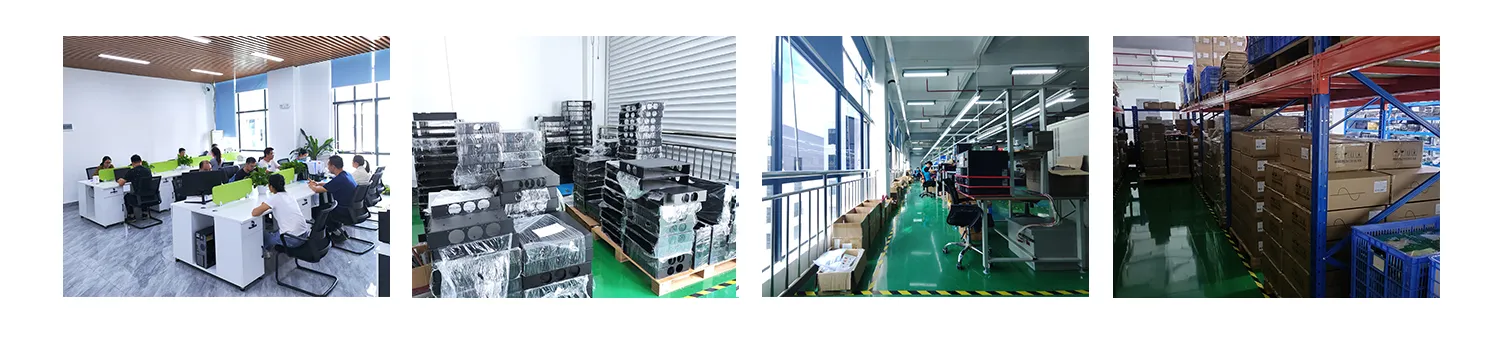

Factory Floor Production Line

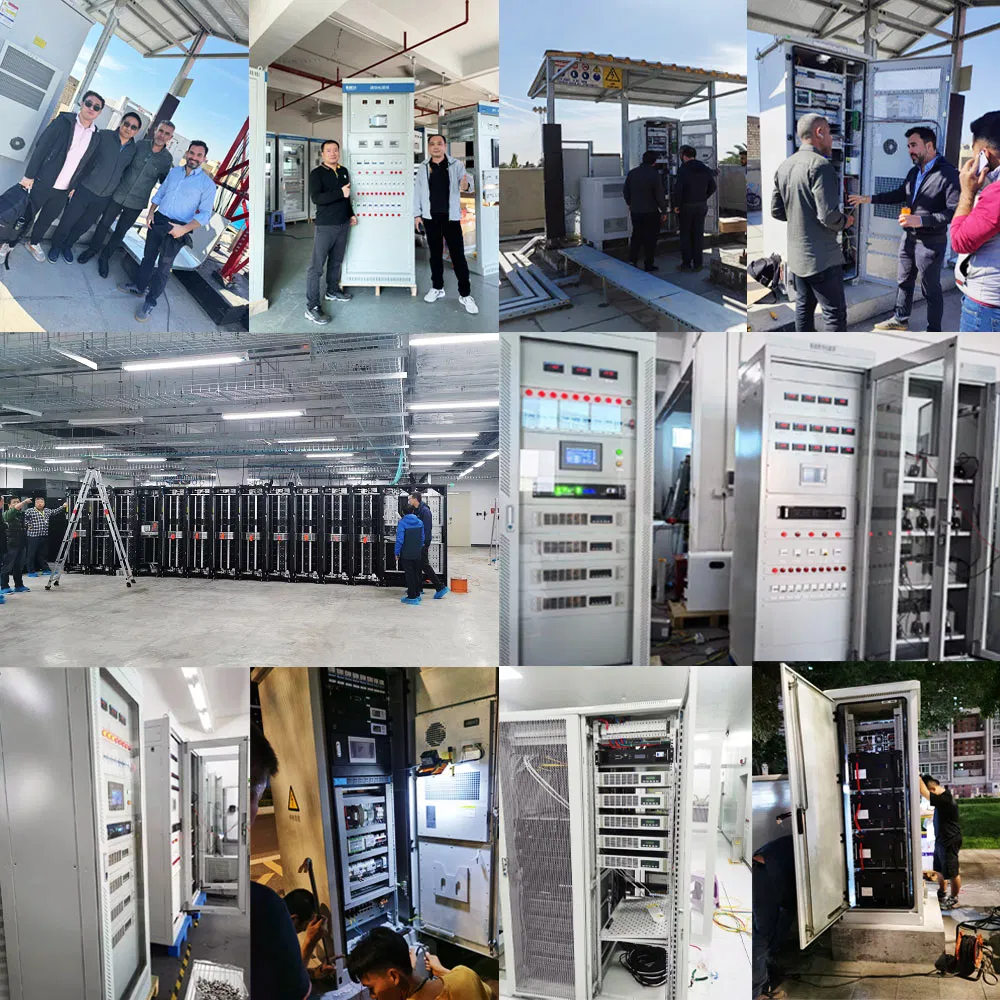

Certifications Quality Control
Frequently Asked Questions
Do you have a charging solution for this system?
Yes, this system is highly suitable for battery charging usage. It is widely used for N+1 power supply and integrated battery charging management.
Does the product support SNMP functions?
Yes, 90% of our products support SNMP. Additionally, all products come with built-in RS485 communication as a standard feature.
Can the system operate in high-temperature environments?
The system supports a temperature range of -20°C to 60°C. For extreme conditions, configuring air conditioning cooling will significantly increase the product's lifespan.
What is the overload capacity of the system?
It features superior overload capacity and can withstand full load startups. It includes a bypass switch to transition to bypass power when overloaded.
What protection functions are included?
The system includes input under-voltage protection, anti-DC input reverse connection, buffer protection, over-voltage protection, overload protection, short-circuit protection, and over-temperature protection.
What is the noise level of the high-frequency inverter?
The operating noise level is efficiently maintained at ≤55dB.
