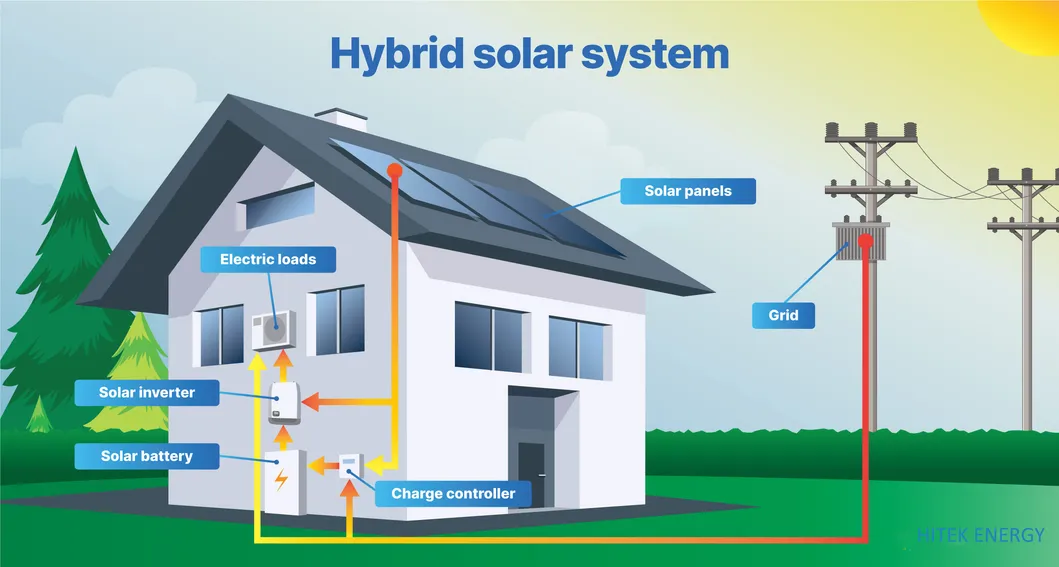

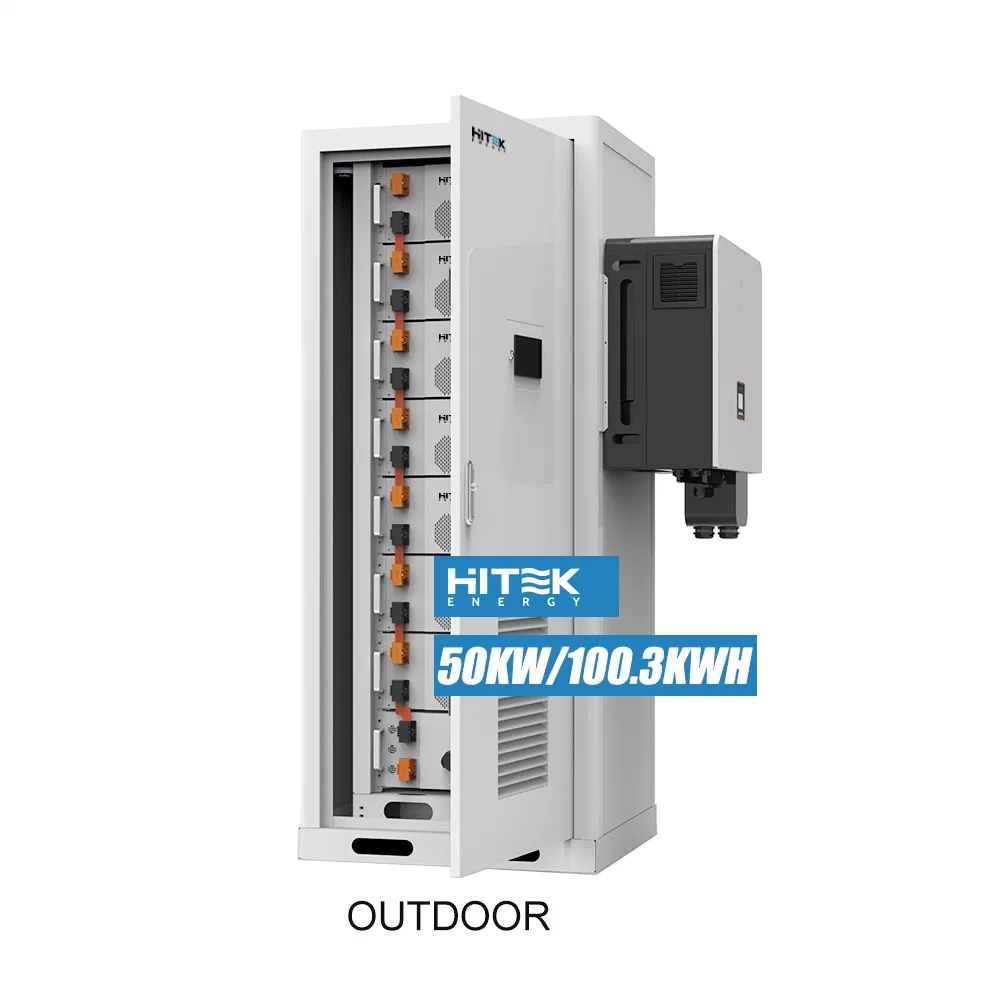

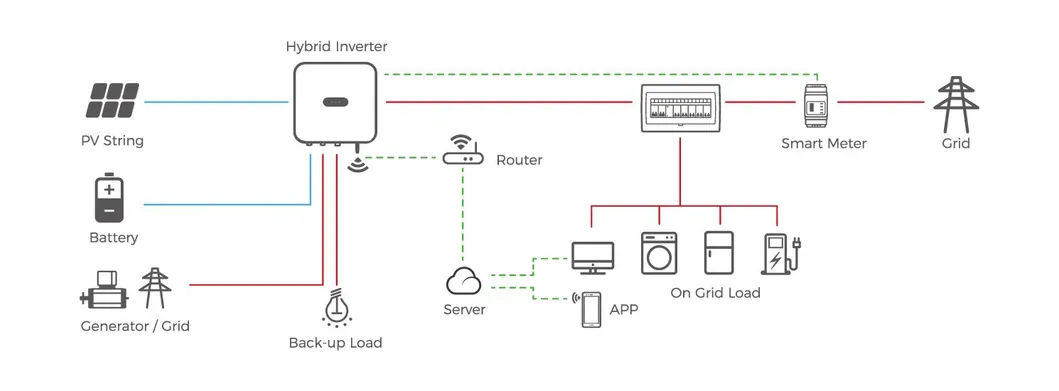

This hybrid system is a professional combination of solar energy storage with grid connection. It features battery backup to store power and the ability to feed surplus electricity into the main grid, ensuring maximum energy independence for residential and commercial users.
| No. | Product Name | Specification | Qty | Remark |
|---|---|---|---|---|
| 1 | Solar Module | BSM560M10-72HPH (560W) | 96 pcs | Total 53.76KW |

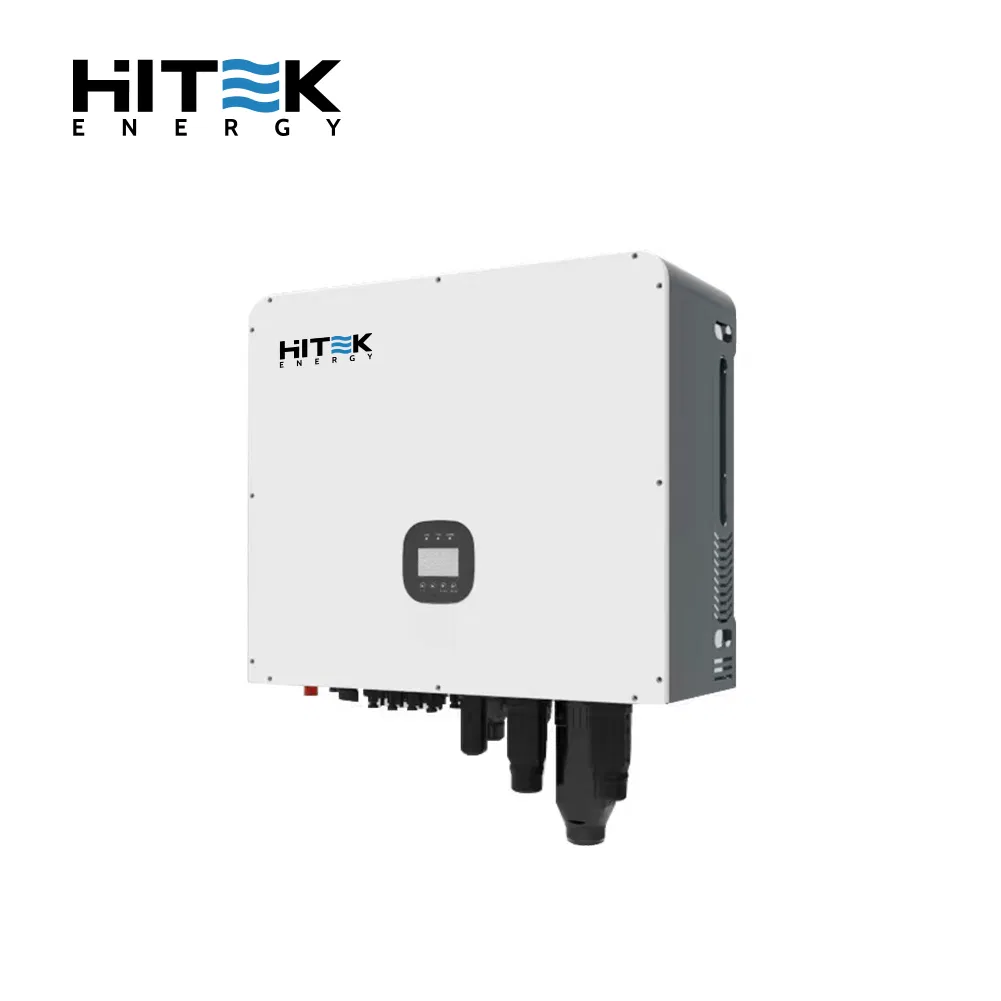

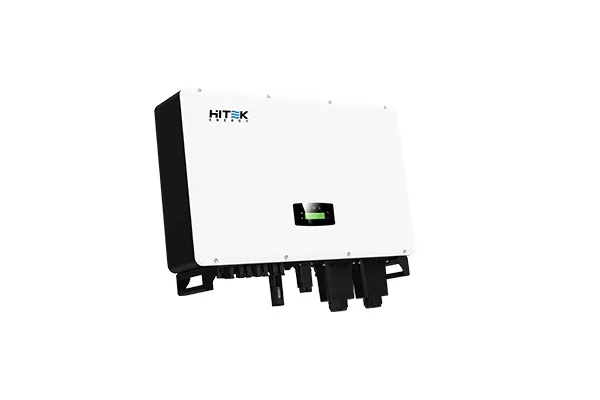

| 2 | Hybrid Inverter | BSE50KH3 (3 Phase) | 1 pc | 4 groups of MPPT |
| 3 | Lithium Battery | 51.2V 280Ah Pack | 7 packs | Total 100.352KWH |
| 4 | Monitoring | WiFi / App Station | 1 set | Remote Access |
| 5 | Mounting Kits | Roof/Ground Customized | 1 set | Full Support |

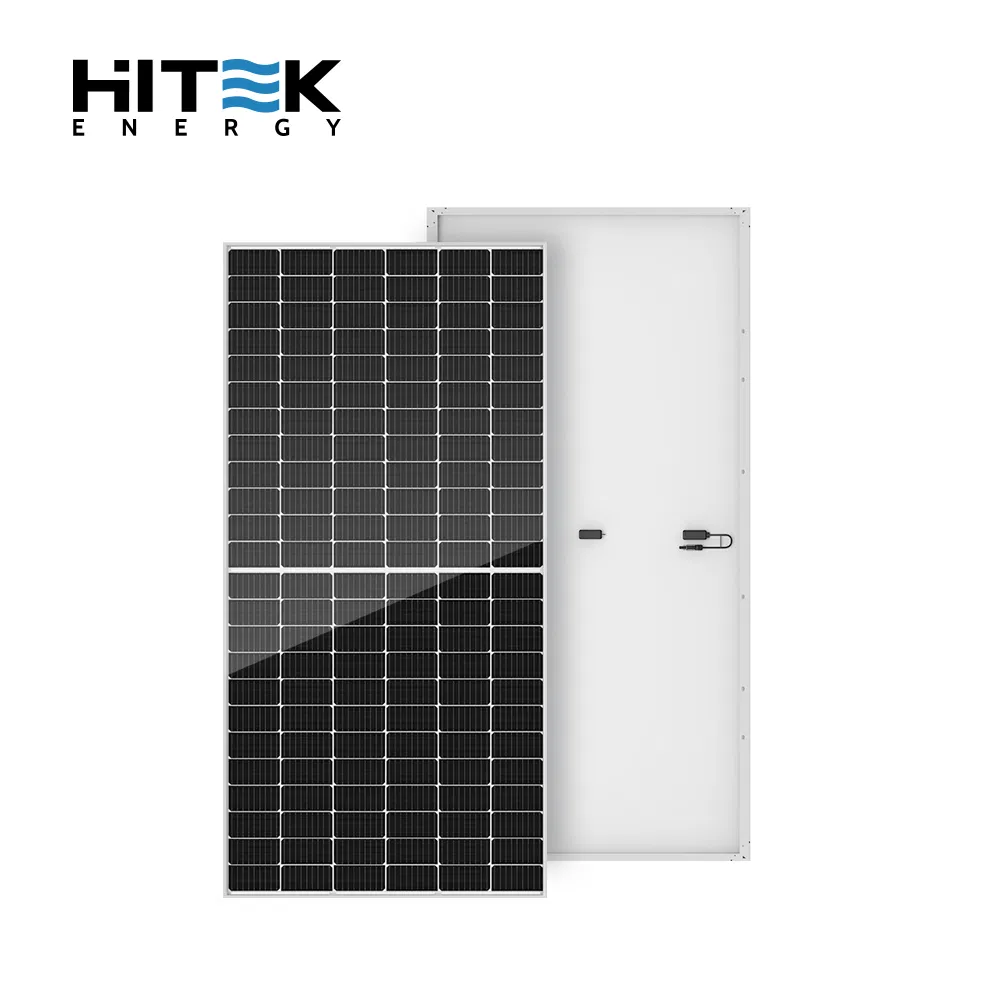

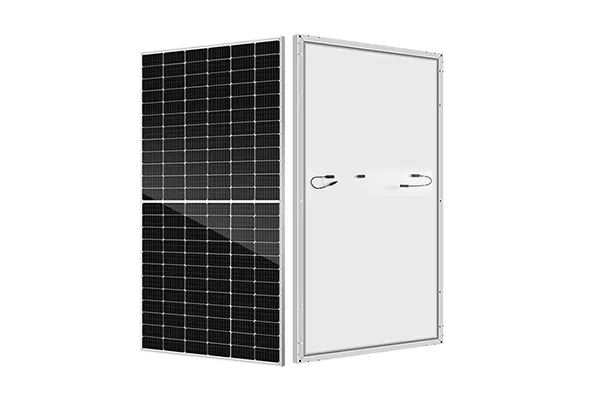

Peak Power: 560Wp
Efficiency High-performance Monocrystalline cells.
Dimensions: 2279*1134*35mm

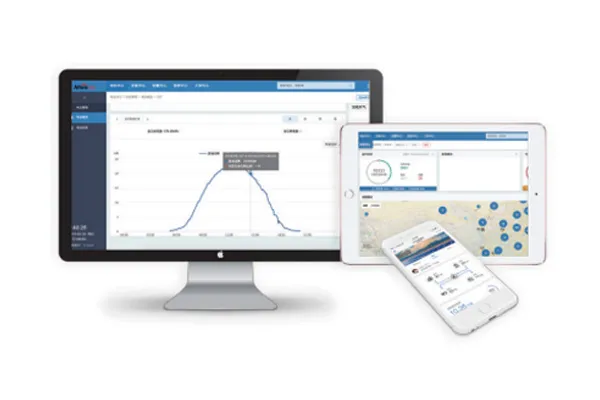

Smart monitoring & remote firmware upgrade. Built-in anti-feed-in function and time-of-use optimization.

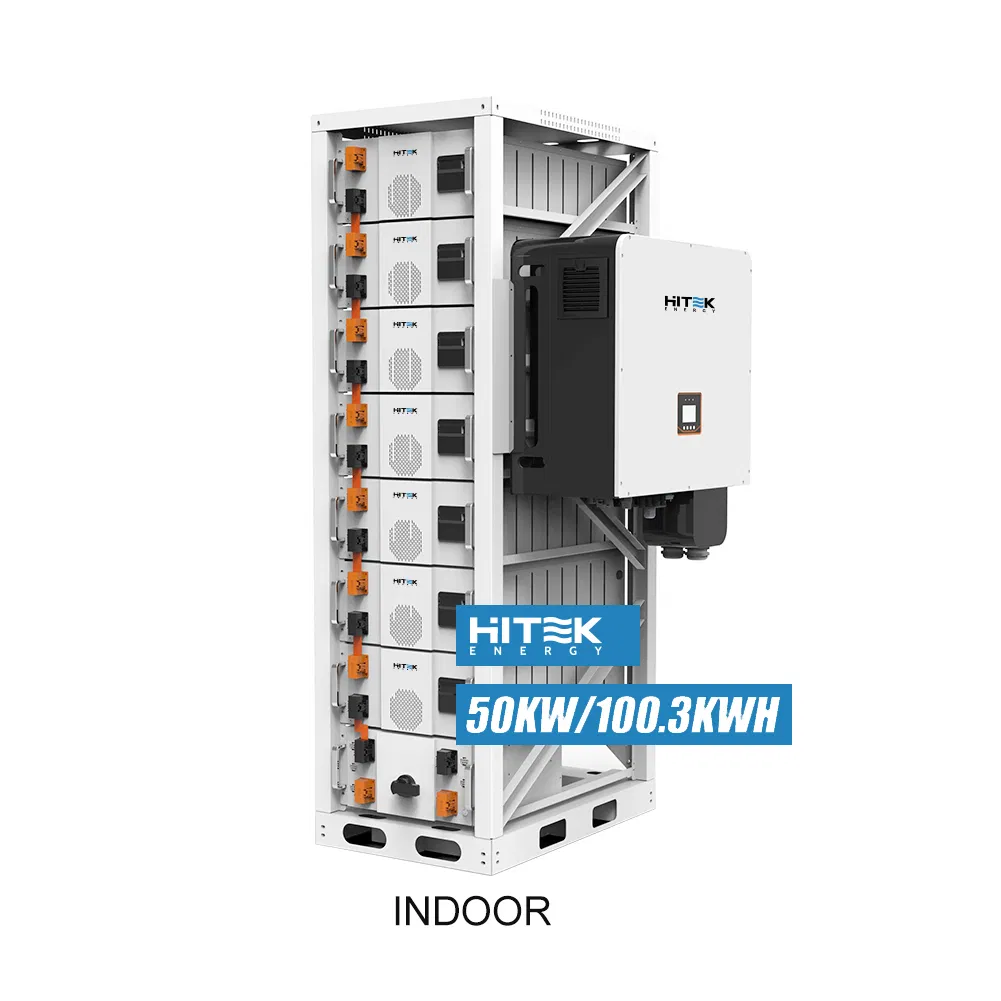

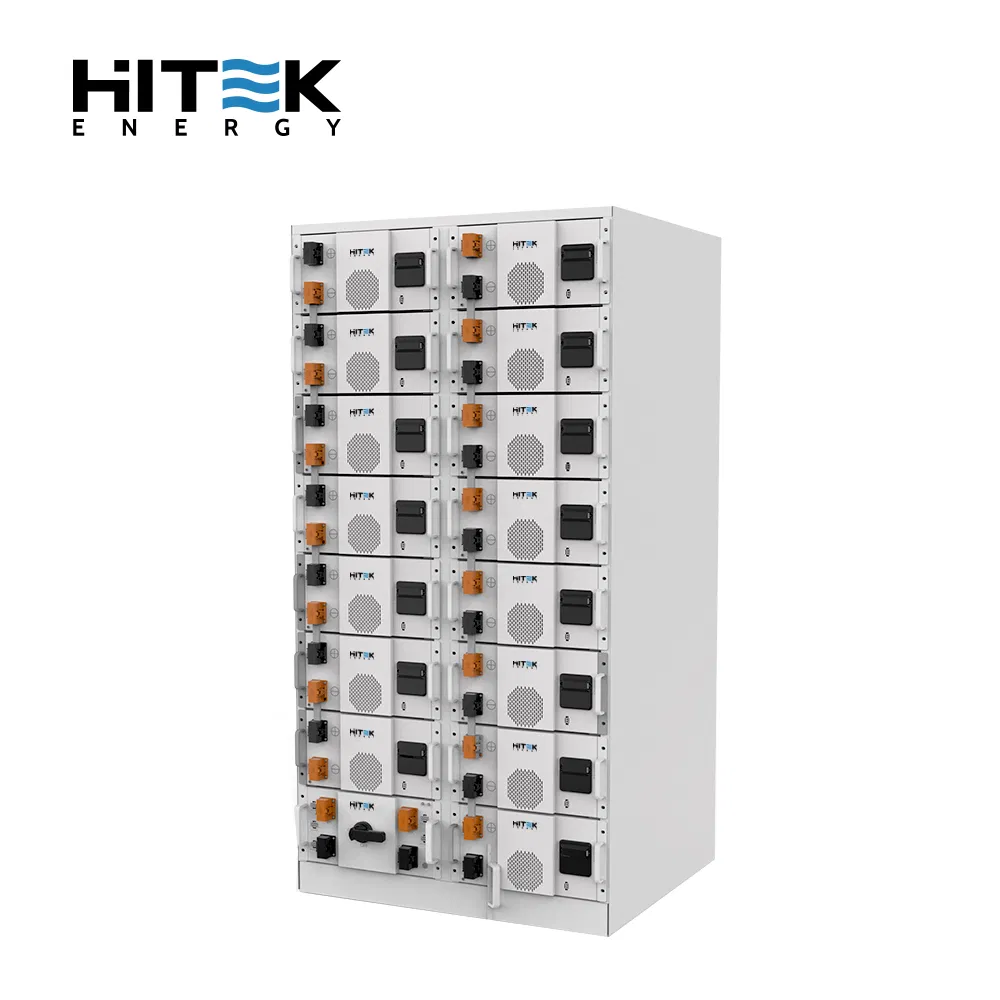

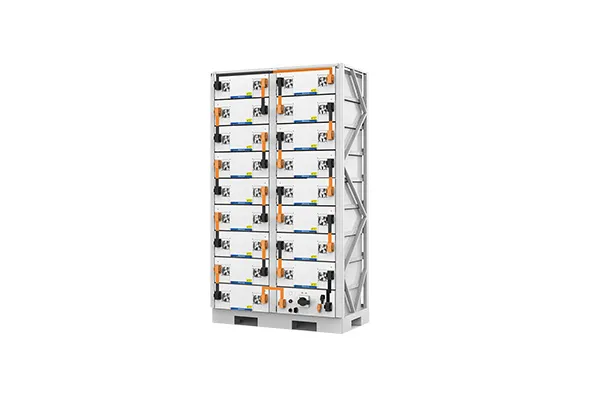

LiFePO4 Lithium Ion. More than 6000 cycles at 90% DOD. Rack-mounted design for easy maintenance.
