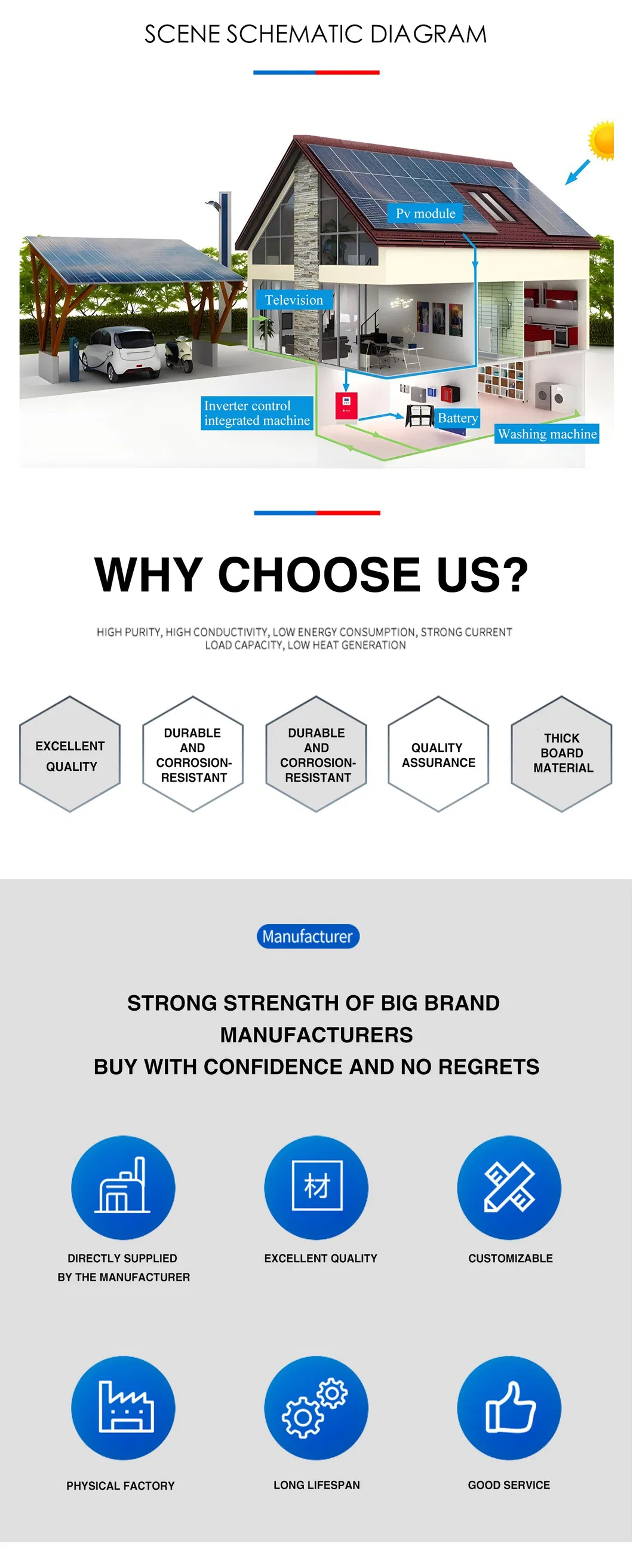

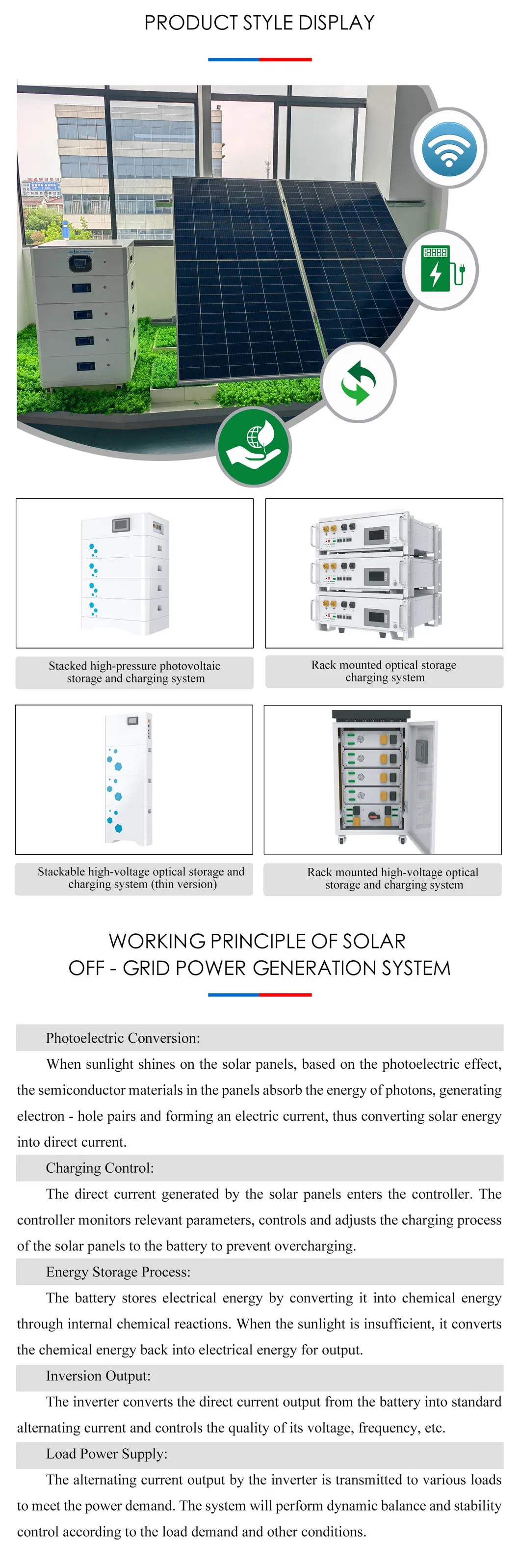

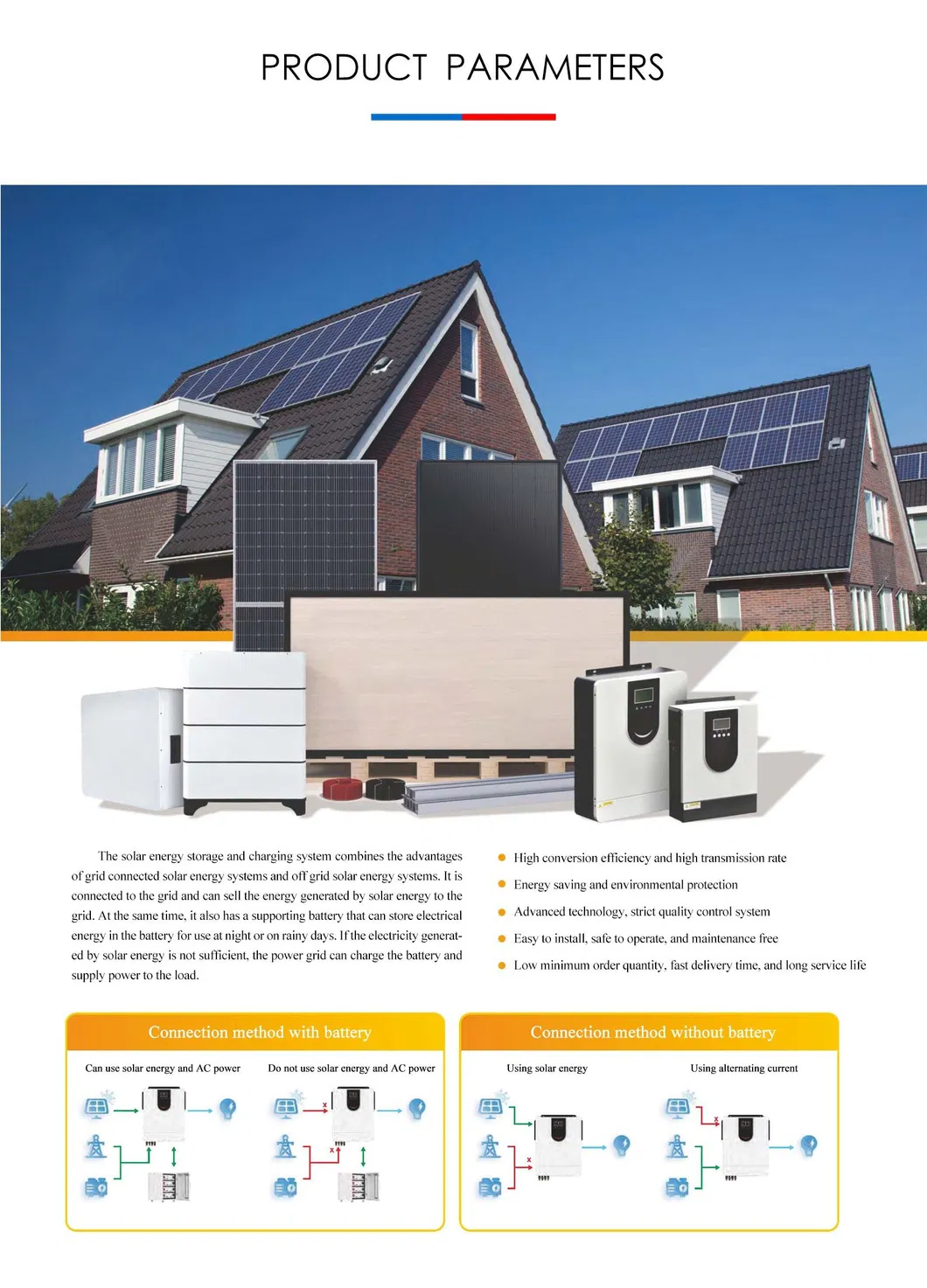

When sunlight irradiates solar panels, based on the photovoltaic effect, semiconductor materials in the panels absorb photon energy, generating electron-hole pairs that form an electric current. This process converts solar energy into direct current (DC).
The DC power generated by the solar panels enters a controller, which monitors parameters (such as voltage and current) and adjusts the charging process from the panels to the battery. This ensures safe charging and prevents overcharging.
The battery stores electrical energy through internal chemical reactions, converting it into chemical energy for storage. When sunlight is insufficient, it reverses the process, converting chemical energy back into electrical energy for output.
An inverter transforms the DC power from the battery into standard alternating current (AC). It also controls the quality of the output by regulating parameters like voltage and frequency to meet grid-standard requirements.
The AC power generated by the inverter is transmitted to various electrical loads to meet their power demands. The system dynamically balances and stabilizes the power supply according to real-time load requirements, ensuring stable operation.
| SPECIFICATIONS | PARAMETER |
|---|---|

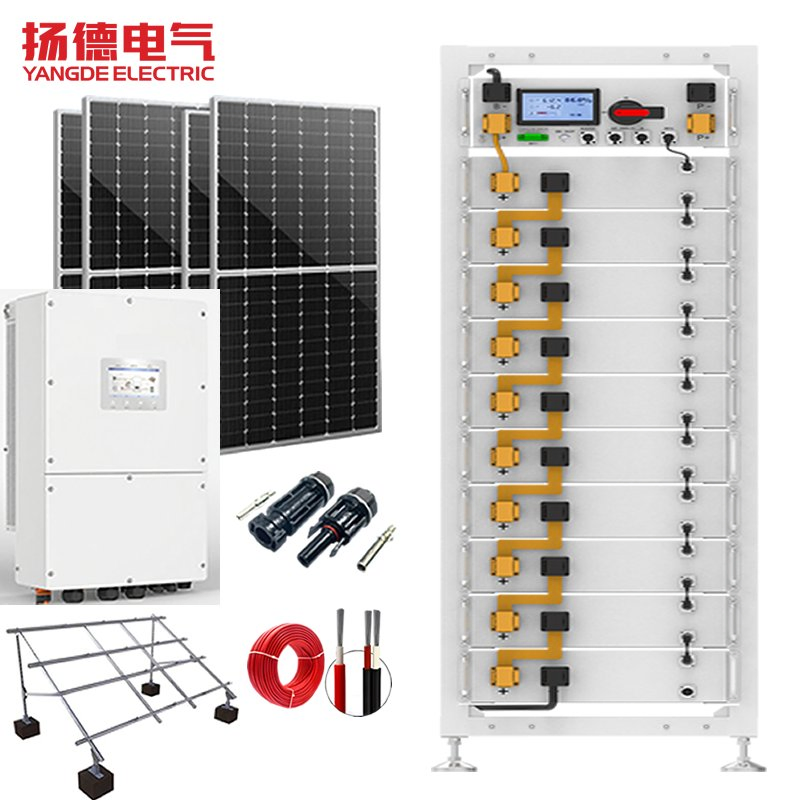

| Model | OMS-51K (512V100AH) |
| Nominal Voltage | 512V |
| Nominal Capacity | 100AH / 51.2 KWH |
| Rack Dimensions (mm) | 560*510*1780 |
| Weight (kg) | 520 |
| Discharge Cut-Off Voltage | 440V |
| Charge Cut-Off Voltage | 568V |
| Rec. Charge/Discharge Current | 60A |
| Max. Working Current | 100A |
| Communication | RS485 / RS232 / CAN |
| Working Temperature | 0ºC~50ºC (Charge) / -10ºC~50ºC (Discharge) |
| Certification | CE / IEC / UL / UN38.3 / MSDS |
| Design Life | 15 Years+ |
| Cycle Life | > 6000 times (0.5C/0.5C - 80% DOD) |
Cell Type: Mono N-Type | 132 pieces
Dimensions: 2382*1134*30mm | Weight: 28.2KG
Pmax: 625W | Vmpp: 41.4V | Impp: 16.61A
Voc: 48.6V | Isc: 17.54A

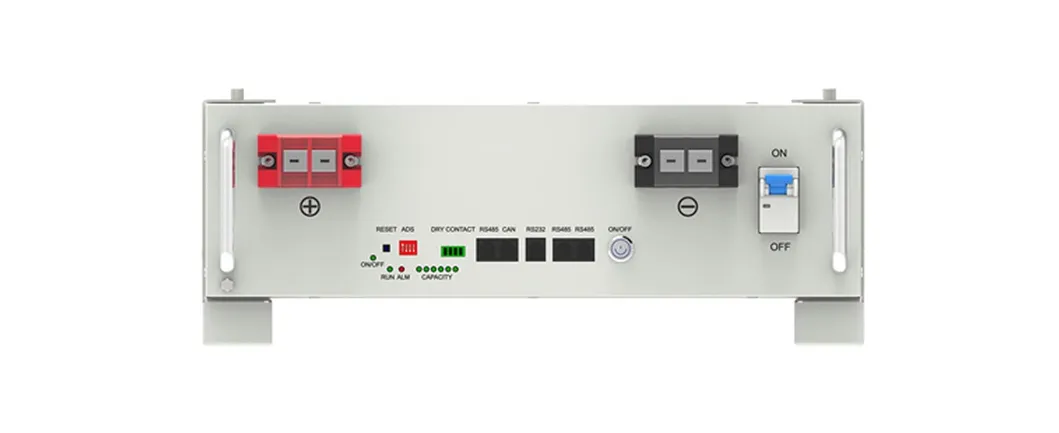

Model: 51.2V 100AH
Size: 450*133*500mm | DOD: 80%
Cycle Life: 6000 | Design Life: >10 years
Features: 19-inch standardized design, 3U height; Intelligent system control; High energy density aluminum core.

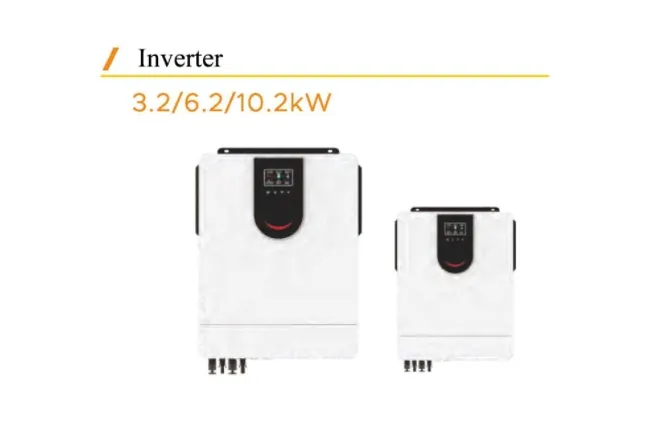

Specs: 10KW / 48V
Parallel Capability: 1 to 6 units
Protection: IP65 | Weight: 37KG
Cooling: Heat sink + intelligent air cooling
PV Cable: PV1-F1*4mm²
Distribution Box: 20KW

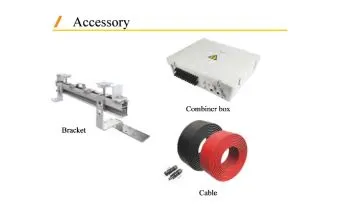

Includes: Grounding systems, wire threading pipes, MC4 connectors.
A: The system provides a nominal capacity of 50kWh, designed specifically for high-demand home energy storage and off-grid applications.
A: The system uses high-quality Lithium (LFP) cells with a cycle life of over 6,000 times at 80% Depth of Discharge (DOD).
A: Yes, the hybrid storage inverter supports paralleling from 1 to 6 units to meet increased power requirements.

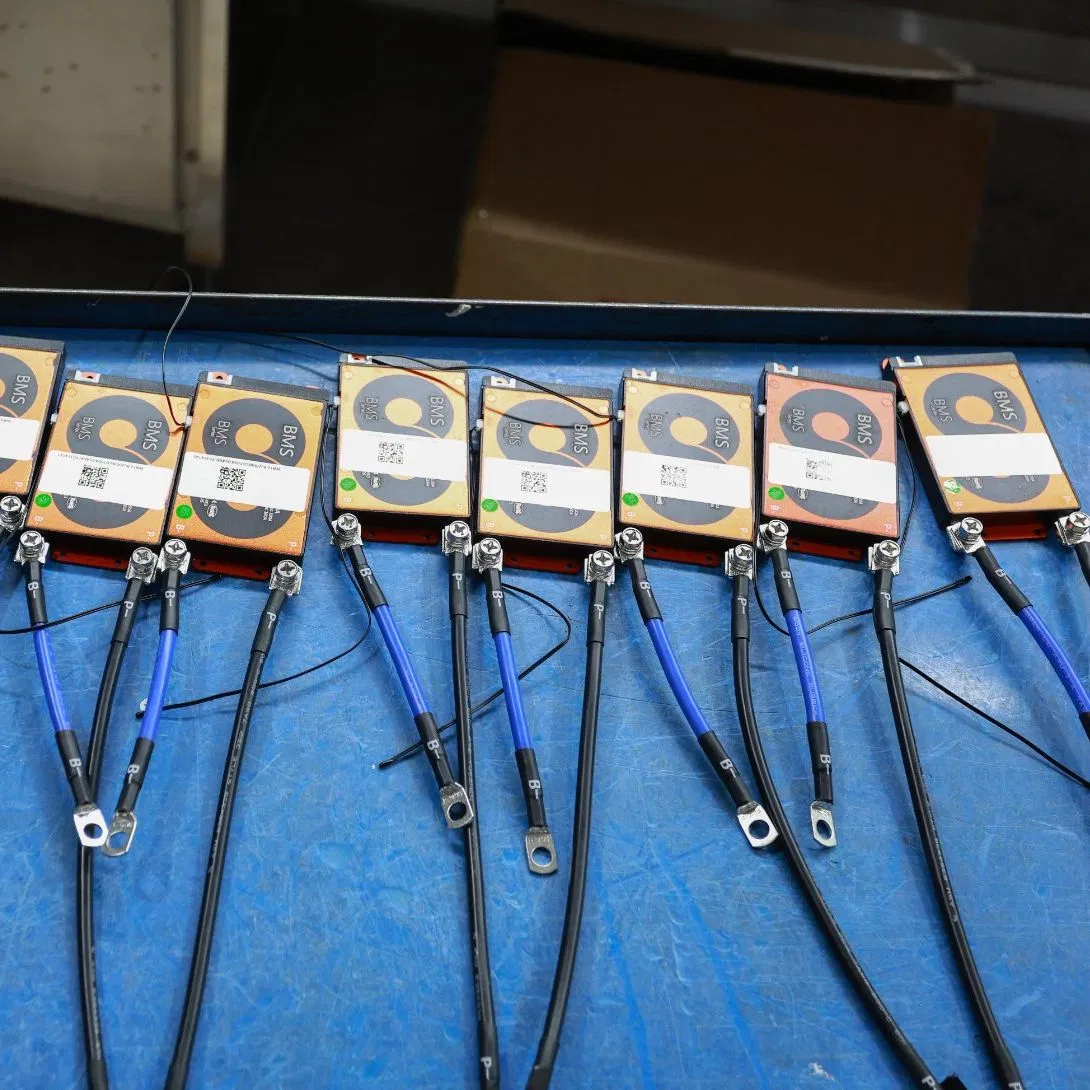

A: The intelligent Battery Management System (BMS) supports RS485, RS232, and CAN communication protocols for seamless integration with inverters and monitoring systems.
A: The inverter features an IP65 protection level, but for the overall rack system and batteries, it is recommended to install in a temperature-controlled environment between 0ºC and 50ºC for optimal performance.

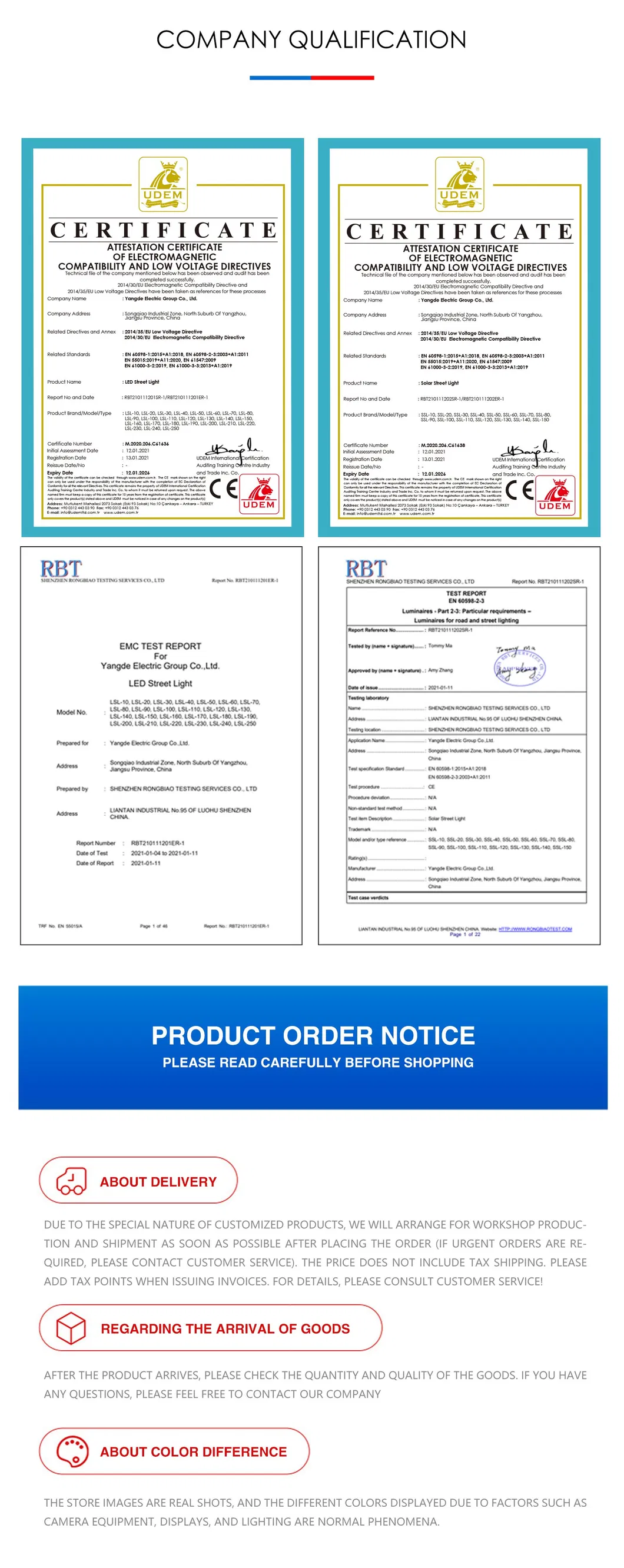

A: The system is fully certified with CE, IEC, UL, UN38.3, and MSDS, ensuring compliance with international safety and transport standards.
