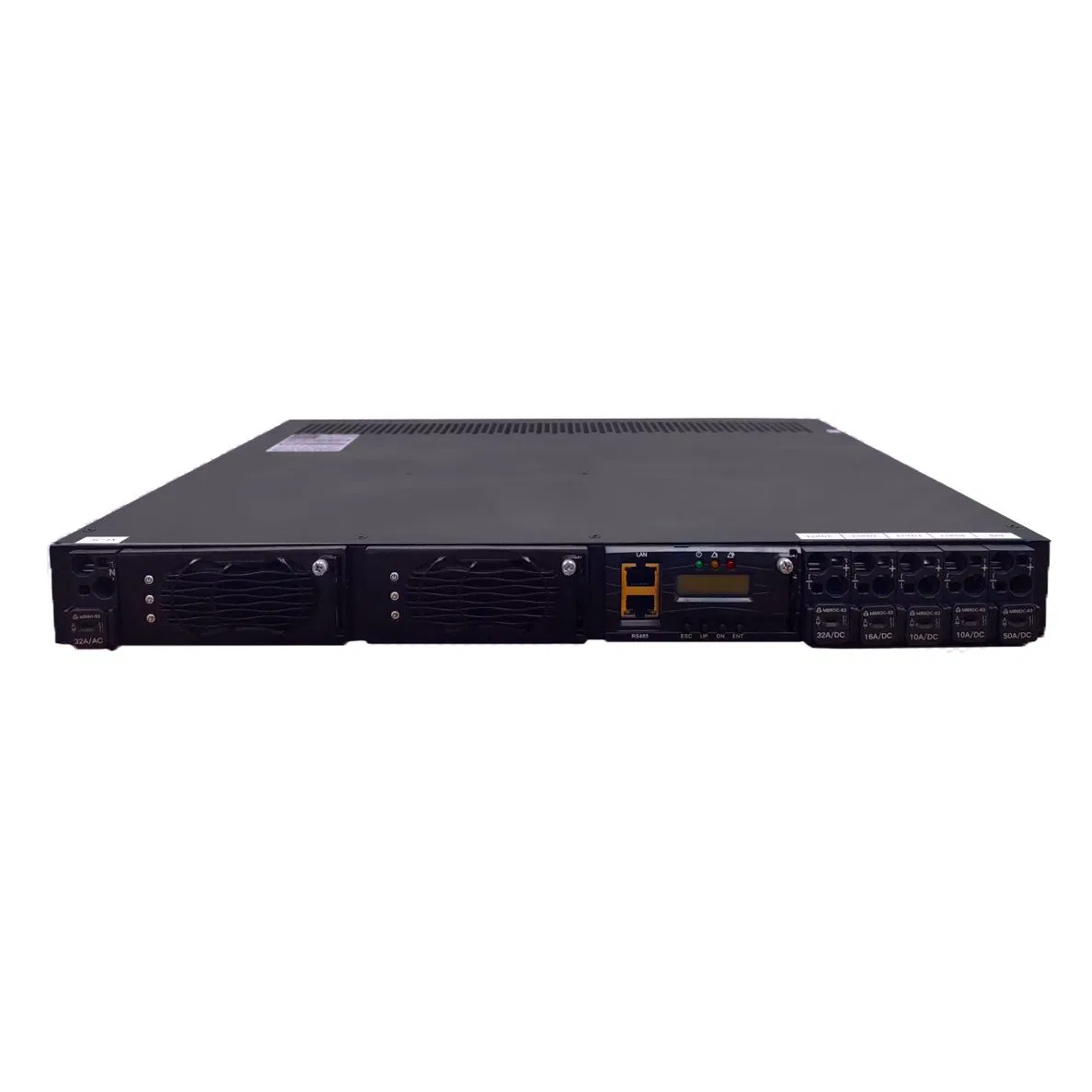

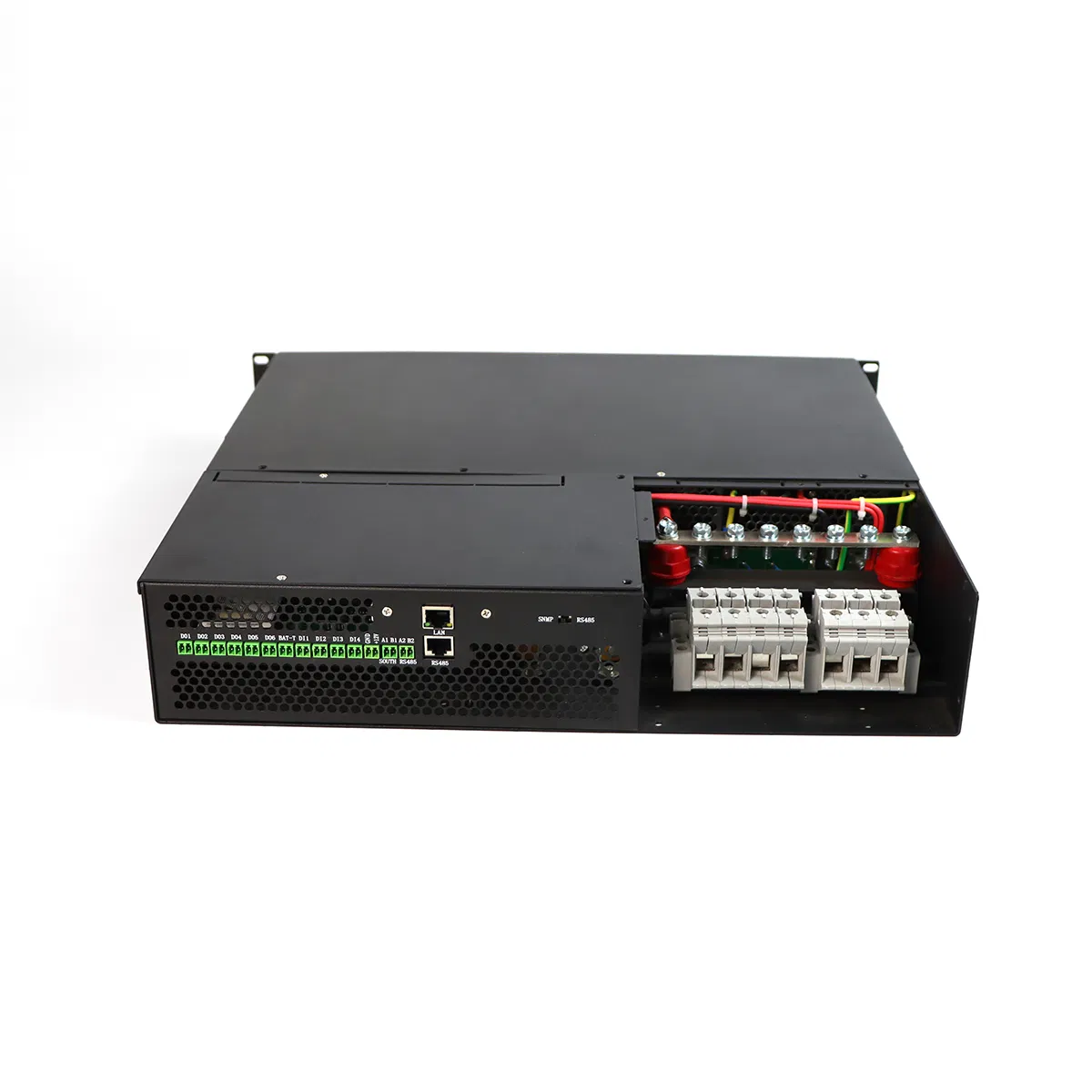

| Parameter | Specification |
|---|---|
| Rectifier Module | BR481800 1PCS |
| Efficiency | 93.2% |
| Power Capacity (Max) | 1800W |

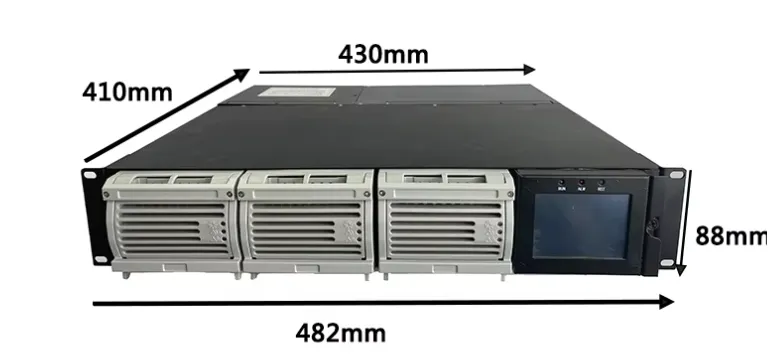

| Dimensions | 482mm(W) x 410mm(D) x 88mm(H) |
| Weight | Approx. 14KG |
| Classification | IP21 |
| Input / Output Characteristics | Monitoring & Environment | ||
|---|---|---|---|
| Input Voltage Range | 85Vac-300Vac | Local Interface | LCD Display, Key Pads, LED |
| Output Voltage | 21-29VDC (26.7V nom.) | Remote Monitor | TCP/IP, RS485, SNMP (Optional) |
| Output Current | Max 66A | Operating Temp. | -40 to +55°C |
| Frequency | 45-65Hz | MTBF | > 100,000 hours |
| Ripple Voltage | ≤200mV | Humidity | 5% to 95% non-condensing |
Our company was established in 2015, specializing in the production of rack inverters, STS, and switching power supplies. Our products are recognized for exceptional performance and reliable quality, exported globally for telecommunications, energy storage, data centers, and industrial plants. We provide comprehensive OEM and ODM services to meet diverse client needs.

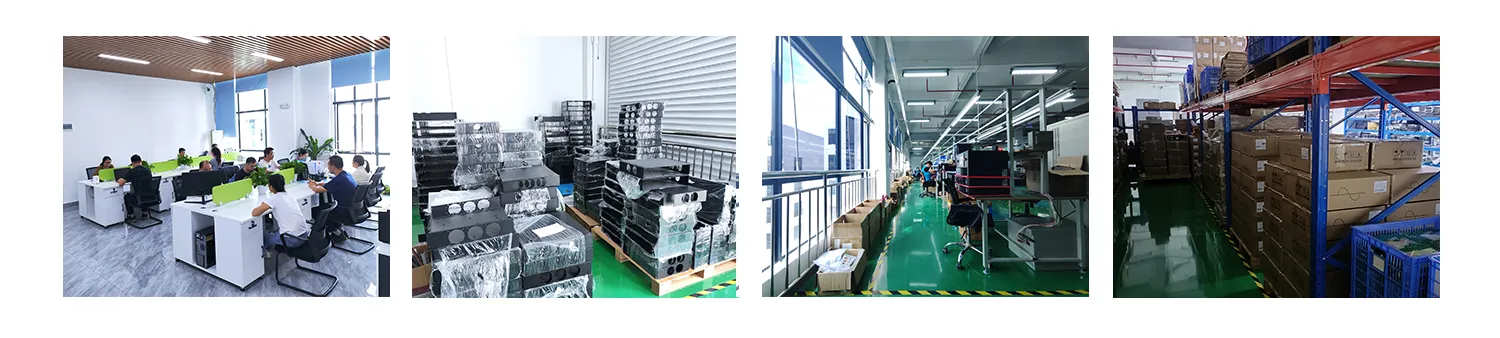

Our facility covers 1000 square meters with a production capacity of 1000 units per month across three advanced technology production lines. We maintain a complete quality control system, from material inspection to SMT, assembly, and rigorous aging tests.
