Complete Set Solar System Energy Storage System 100kwh 150kwh 500kwh 1mwh Commercial Solar Energy Storage System Cabinet

1 / 5

Complete Set Solar System Energy Storage System 100kwh 150kwh 500kwh 1mwh Commercial Solar Energy Storage System Cabinet

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

Solar energy storage system 500kwh

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Hybrid Solar Inverter

System Type

Home Solar Power System

Solar Panel

Mono Solar Panel

Transport Package

Carton/Wooden Box

Origin

Jiangsu, China

HS Code

8501802000

Capacity

4500sets Per Month

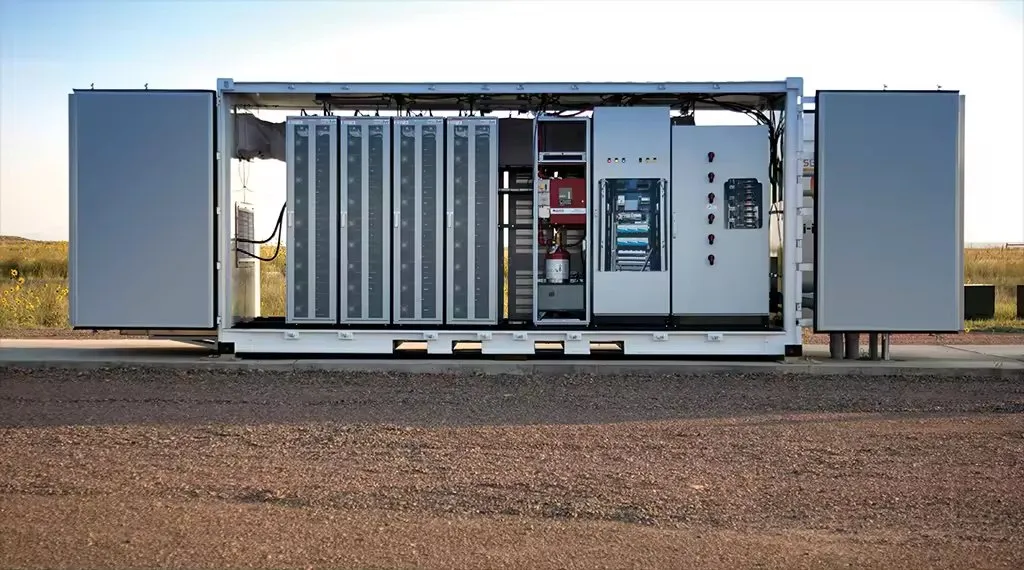

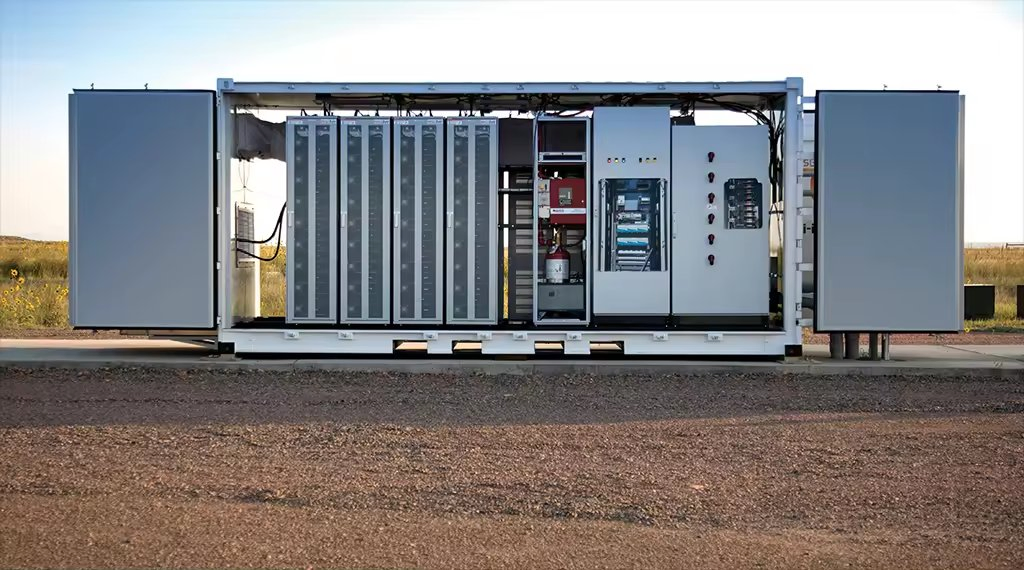

Commercial Solar Energy Storage System Cabinet

📊

Product Parameters

Technical Parameter	100kWh wind cooled type	186kWh wind cooled type	215kWh wind cooled type
Cell Capacity	280Ah
Battery Type	Lifepo4 battery
Nominal Voltage	DC358.4V	DC665.6V	DC768V
Voltage Range	DC313.6-403.2V	DC627.2-748.8V	DC672-864V
Nominal Energy	100kwh	186kwh	215kwh
Battery Cell Equalization	Active equalization
Rated Charge/Discharge Rate	≤0.5C
Battery Pack	7 * 1P16S	13 * 1P16S	15*1P16S
Working Temperature	-40 ° C to 55 ° C
Fire Spray	Heptafluoropropane/perfluorohexanone
Main Materials	Galvanized steel plate
Protection Level	IP54

Note: Product dimensions and physical appearance in this data sheet are nominal. We reserve the right to make the product changes from time to time without prior notification.

☀️

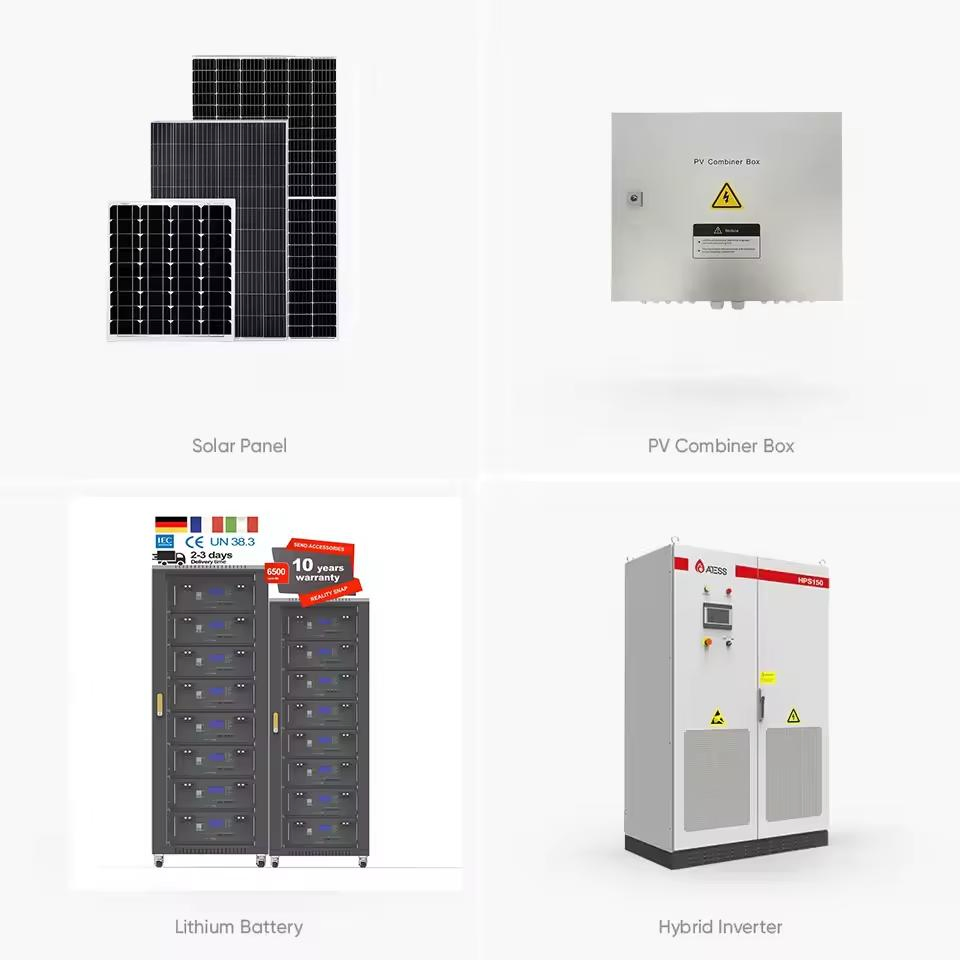

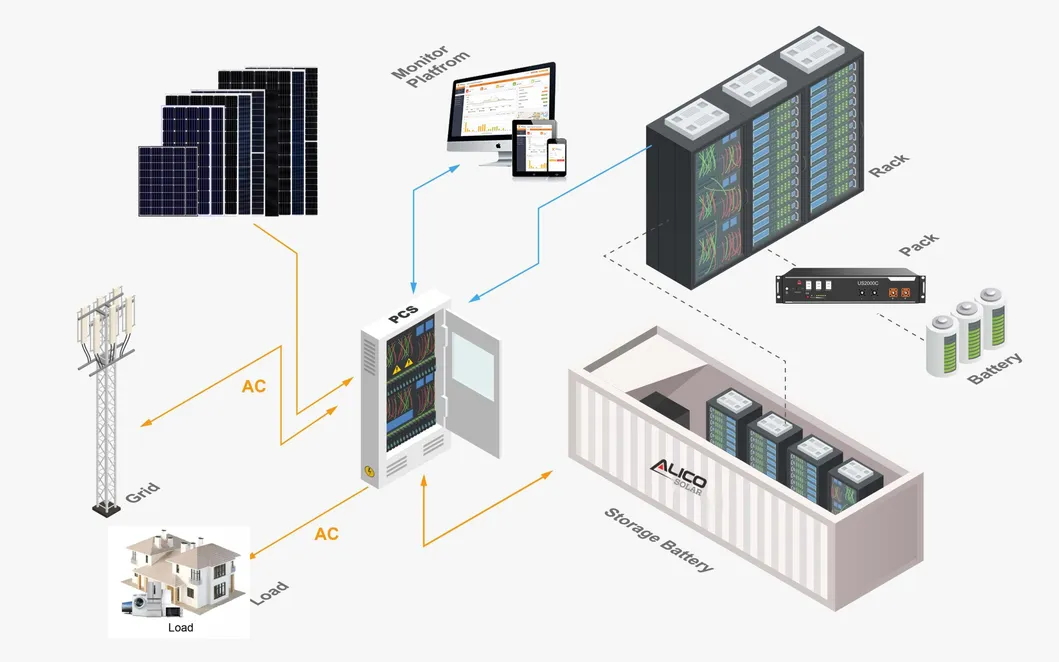

Hybrid Solar System Components

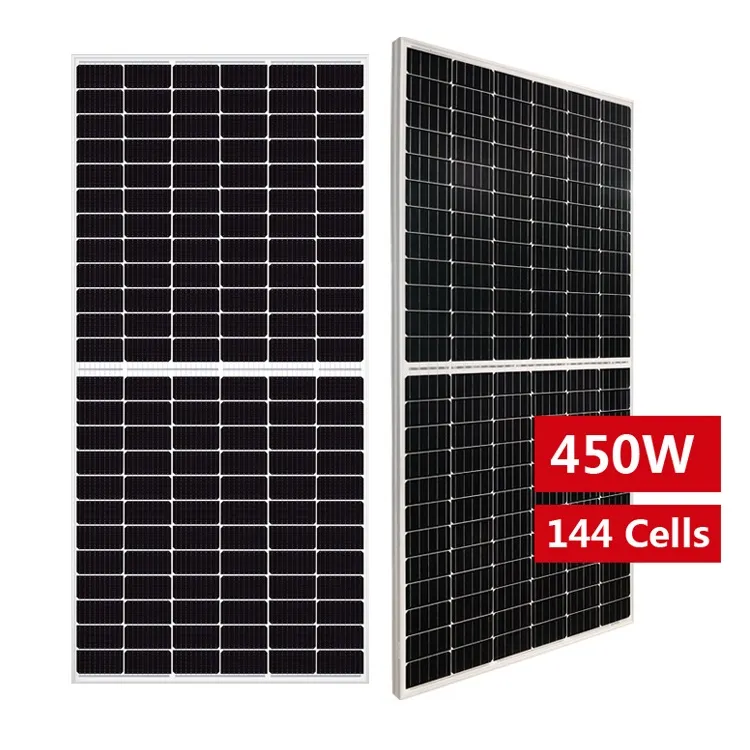

Monocrystalline Solar Panel

Model Type: ASWM6-132-455M
Peak Power Watts: 455w
Open Circuit Voltage: 44.95V
High Efficiency Half Cell Technology
Dimensions: 2108*1048*35mm
Weight: 24kg

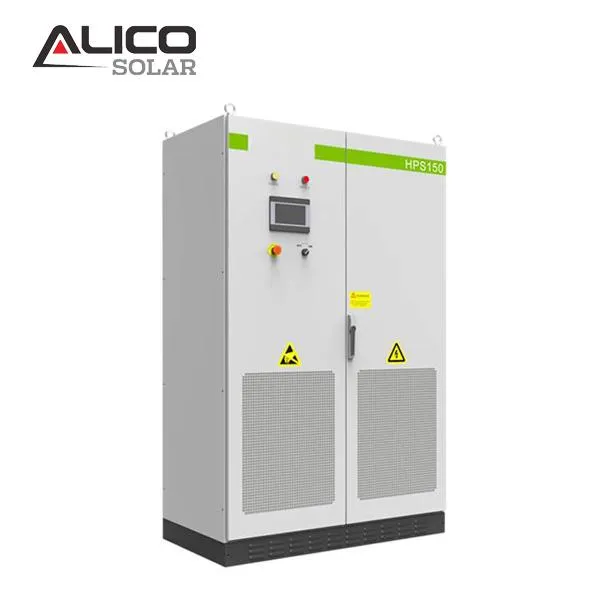

Hybrid Solar Inverter

All in one hybrid design
Seamless on/off grid transfer
Programmable working modes
Supports remote control of DG
Parallel capacity scaling

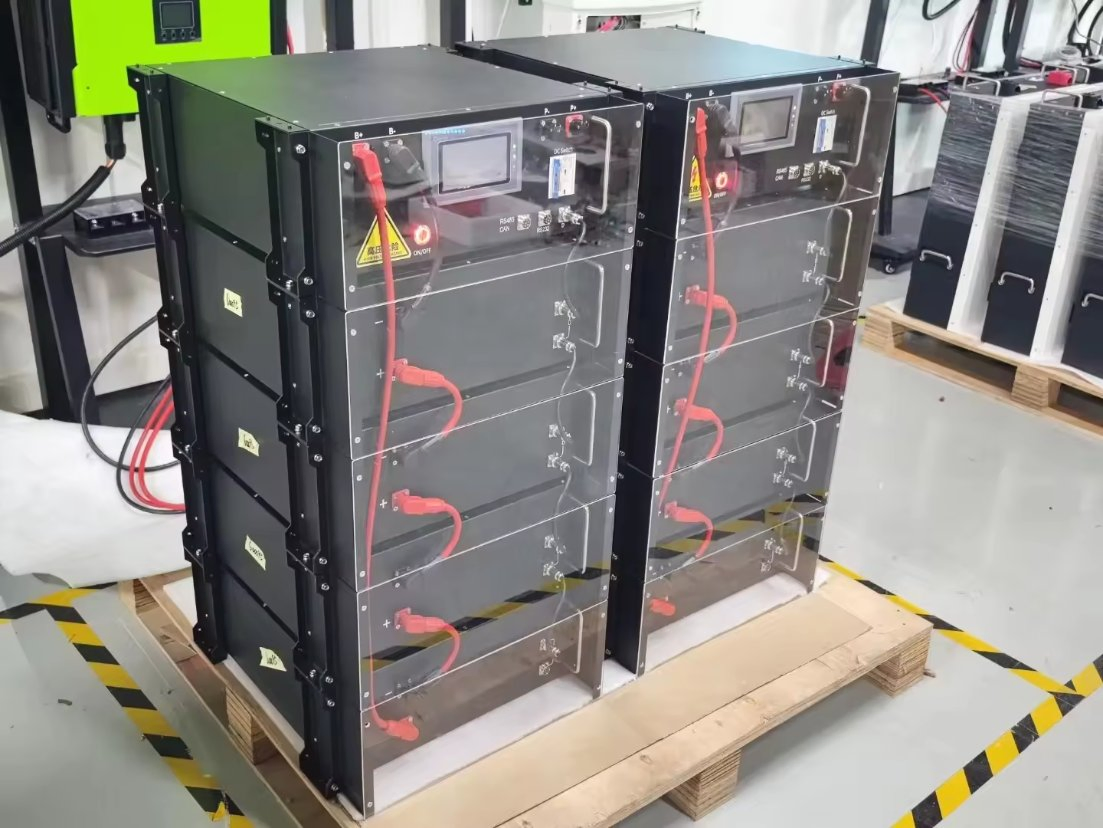

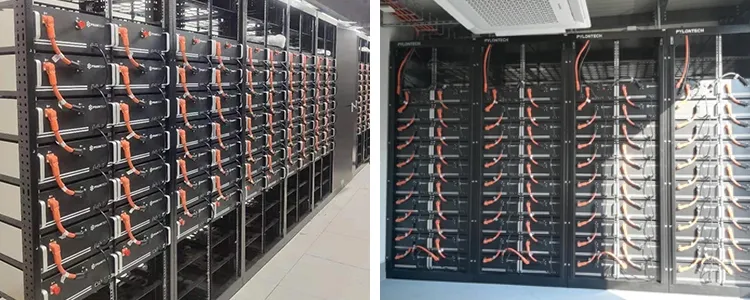

Lithium Battery Storage

Modular and stacked design for easy installation
Flexible capacity: 2.56kwh ~ 25.6kwh
Cobalt-free LiFePO4 safety technology
Wide temp range: -10~50°C

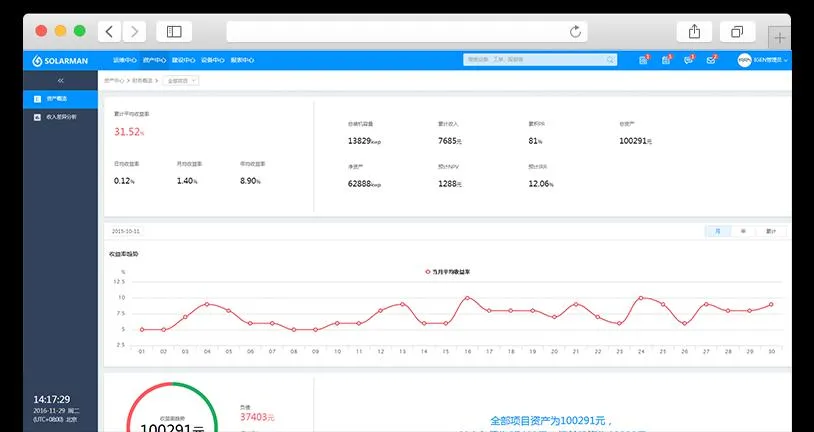

Remote Monitoring & Accessories

Wi-Fi/LAN/GPRS Data Logging
App available for PC, iOS & Android
Mounting Rail & Rail Splice Kits (SUS304)
AC/DC Combine box & PV Cables

🌎

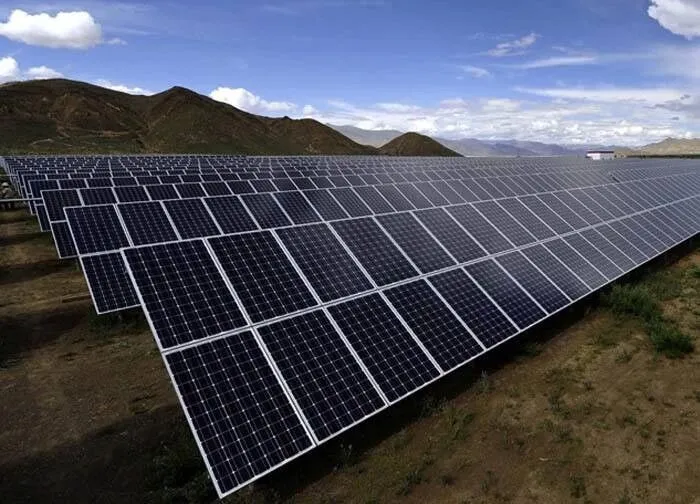

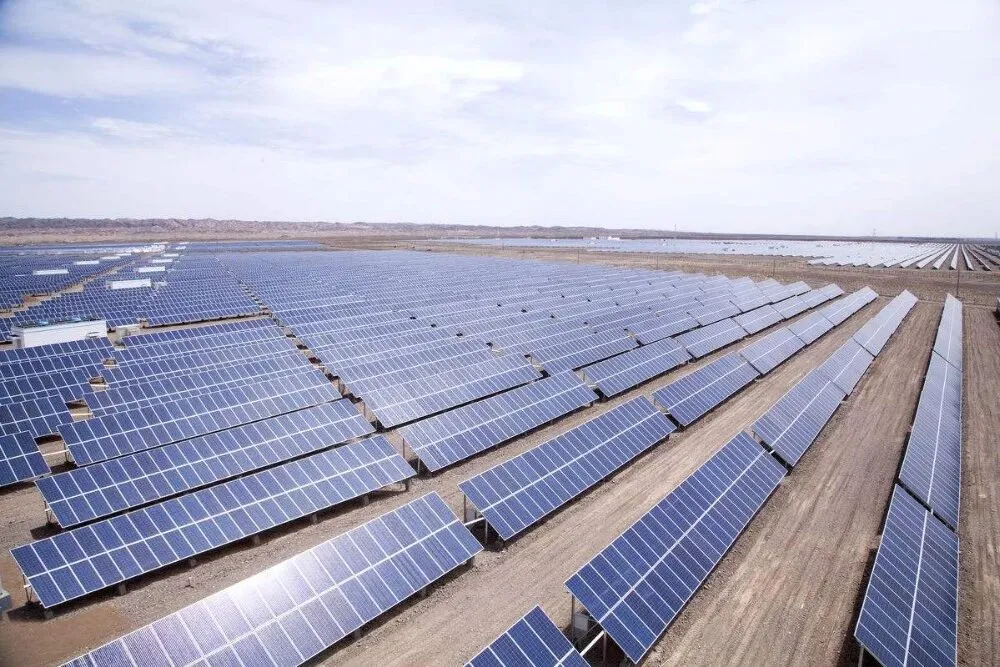

Projects Shown

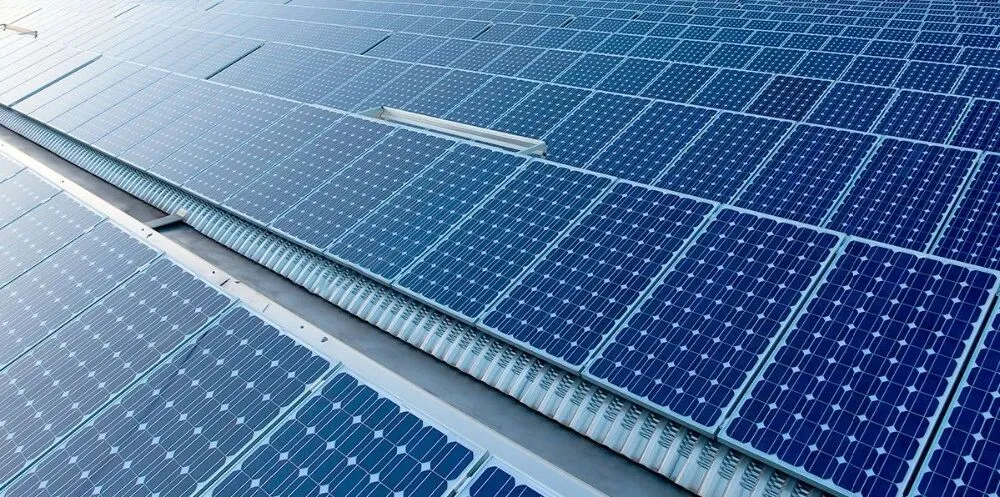

12MW Commercial Metal Roof Solar Plant

Frequently Asked Questions

What are the primary applications for this energy storage system?

The system is designed for versatile use across Residential (Home), Industrial, and Commercial sectors to provide reliable solar energy storage.

What type of batteries are used in the 500kwh system?

We use high-safety LiFePO4 (Lithium Iron Phosphate) batteries with active equalization for maximum efficiency and lifespan.

Can the solar system be monitored remotely?

Yes, the system includes a Data Logging Stick that supports Wi-Fi, LAN, or GPRS, allowing you to monitor performance via a dedicated App on PC, iOS, or Android.

What is the protection level for outdoor installation?

The system cabinet is rated at IP54, providing protection against dust and water splashes, making it suitable for various outdoor environments.

Does the system support both on-grid and off-grid operation?

Yes, the hybrid inverter allows for seamless transfer between on-grid and off-grid modes with programmable working settings.

How is the temperature controlled within the battery cabinet?

The system utilizes an efficient wind cooling method for each battery pack to maintain optimal working temperatures between -40°C and 55°C.
