We are a global leader in smart energy solutions, providing residential, commercial, and utility-scale PV inverters. Our mission is to become the world's largest supplier of smart energy solutions with flexible supply and full compliance.

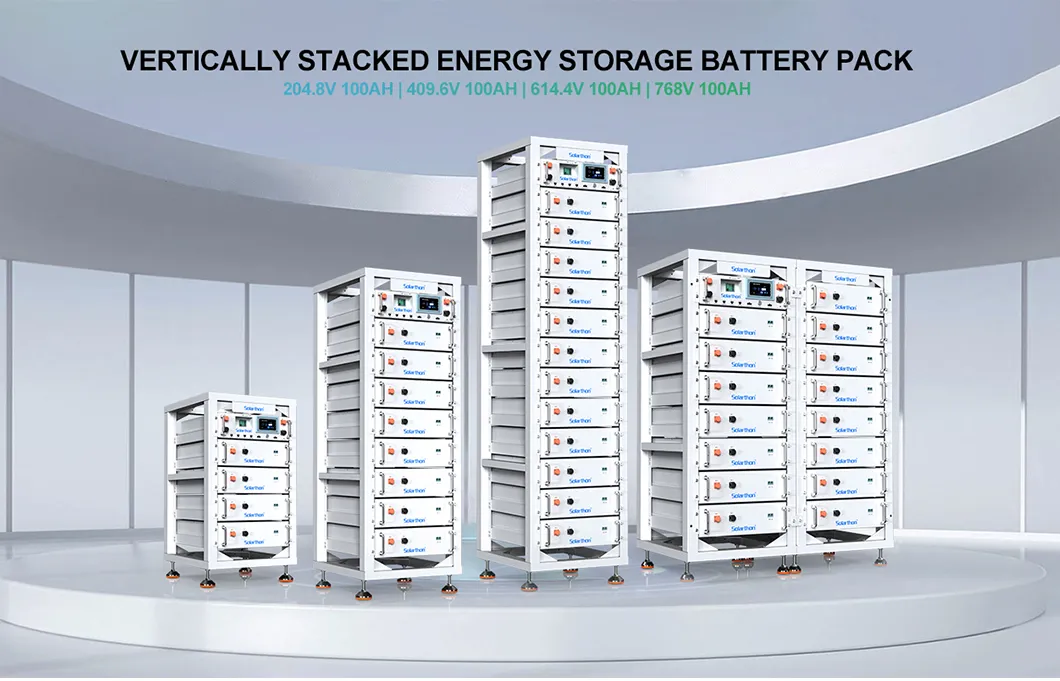

| Model | DQ2910A20-01 | DQ2910B40-01 | DQ2910C60-01 | DQ2910D77-01 |
|---|---|---|---|---|
| Nominal Voltage | 204.8V | 409.6V | 614.4V | 768V |
| Nominal Capacity | 100Ah | 100Ah | 100Ah | 100Ah |
| Cycle Life | ≥6000 | ≥6000 | ≥6000 | ≥6000 |
| Weight | 245kg | 448kg | 650kg | 824kg |
| Warranty | 5 years | 5 years | 5 years | 5 years |

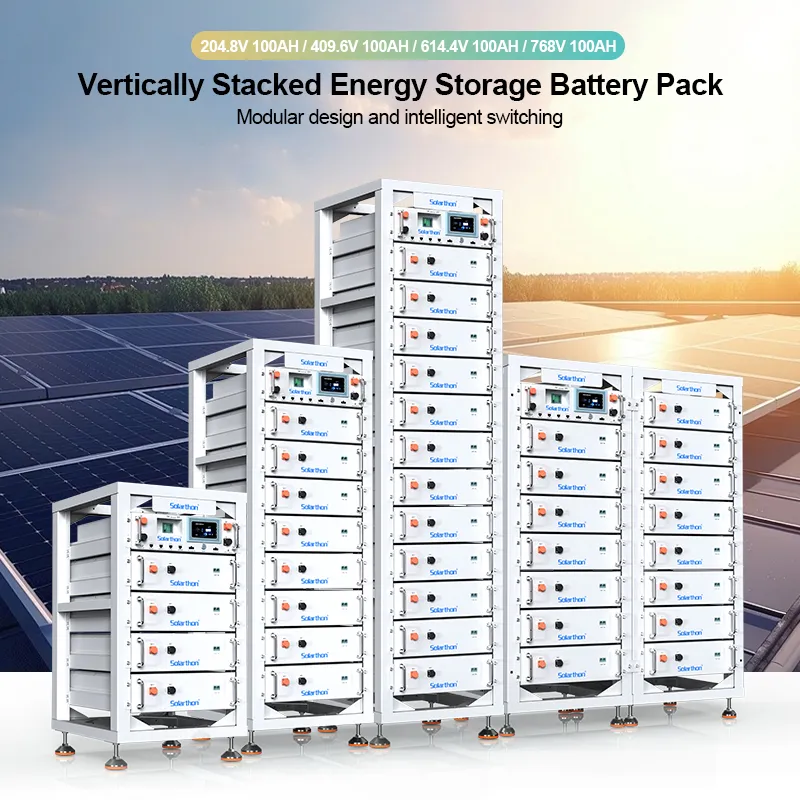

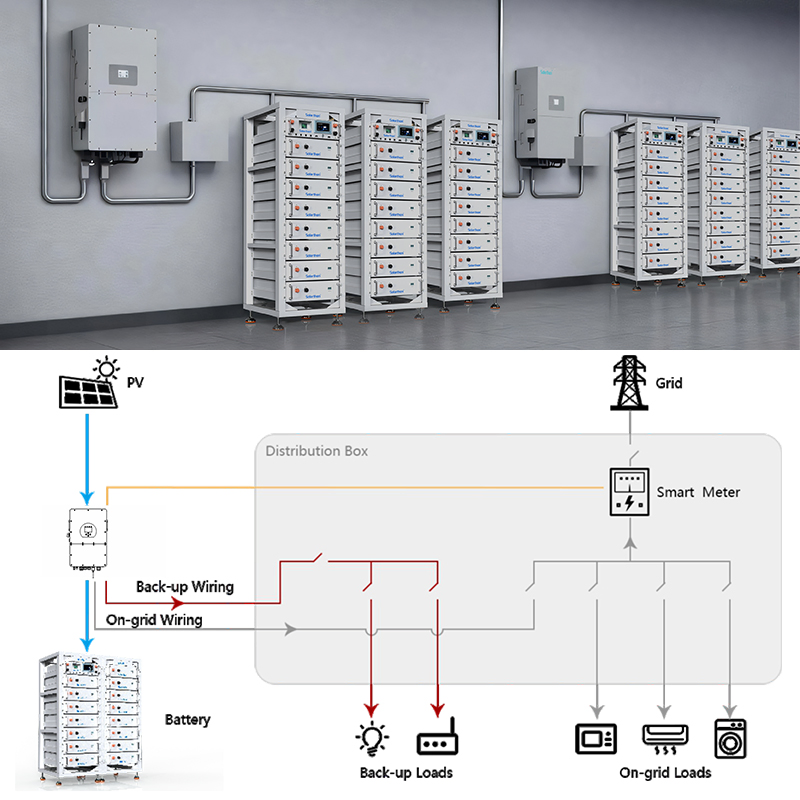

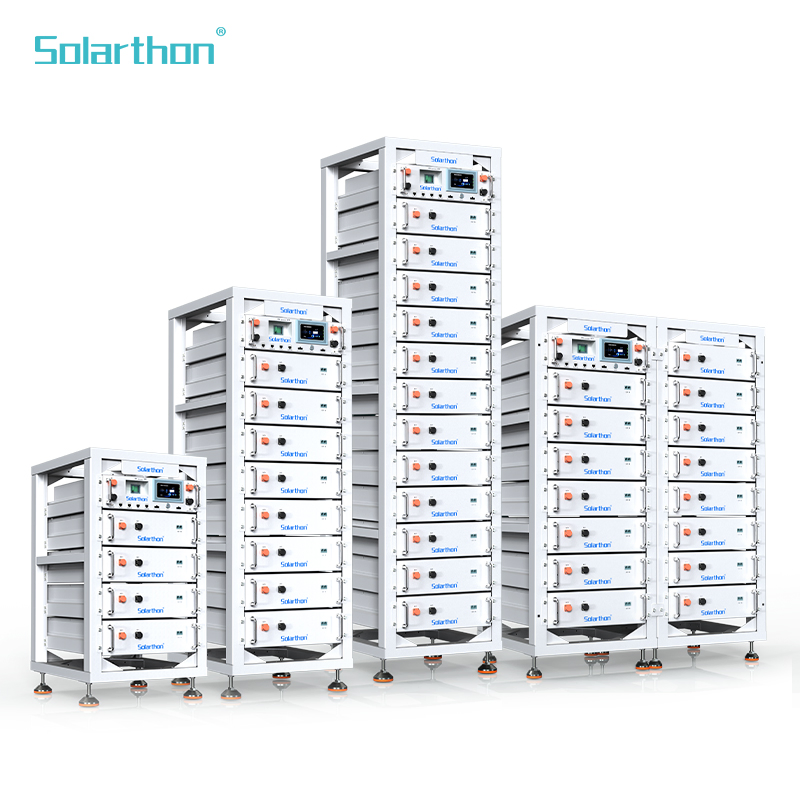

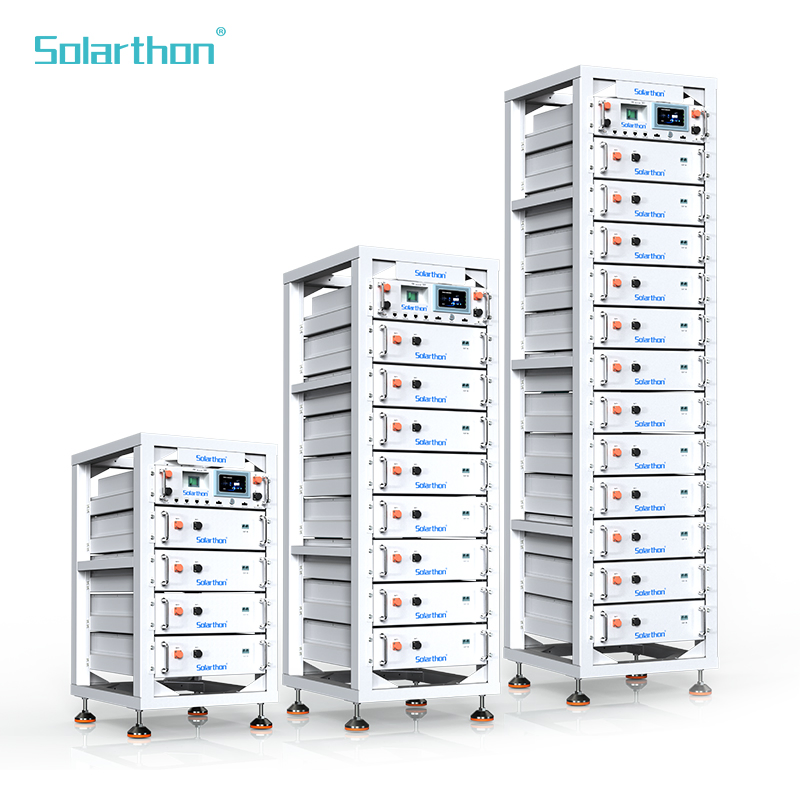

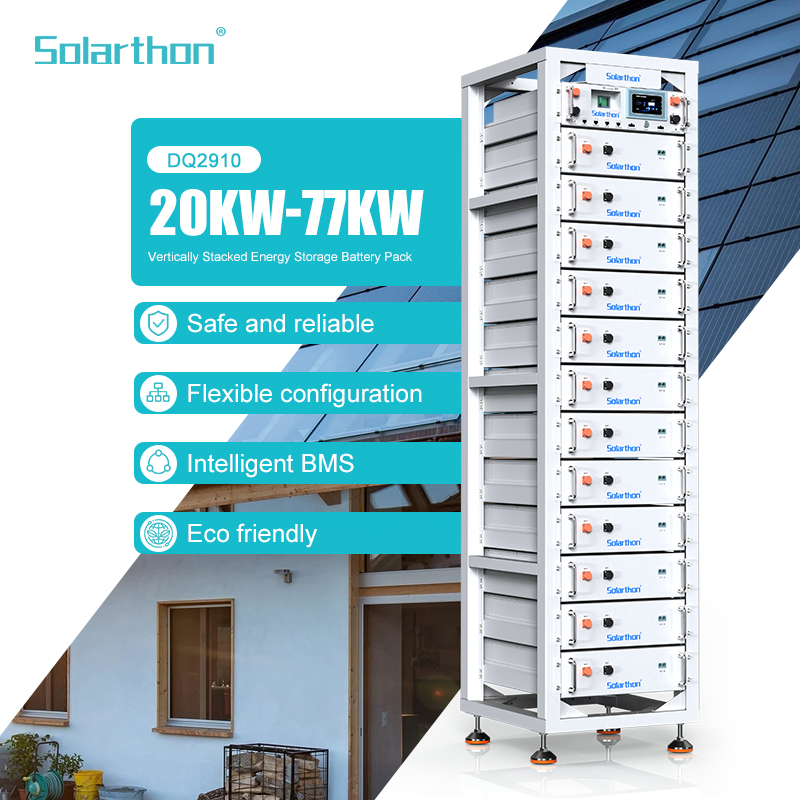

Modular and Scalable: The DQ2910 series features rack-mounted battery modules, each with a capacity of 5.12 kWh. Flexible capacities ranging from 20.48kWh to 76.8kWh can be achieved through series and parallel connections.
Safe and Reliable: Utilizing LiFePO4 chemistry, the module ensures high safety performance, long cycle life, and minimal self-discharge (up to 6 months shelf life).
Equipped with functions for over-discharge, over-charge, over-current, and temperature protection. Automatically manages state of charge and balances cell current/voltage.
