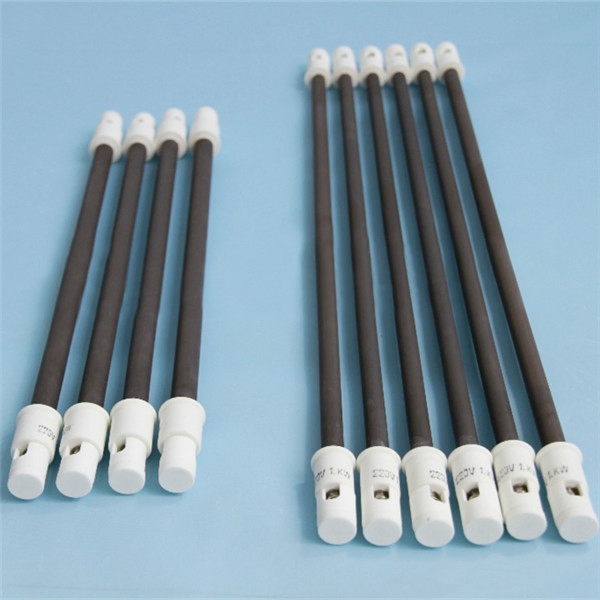

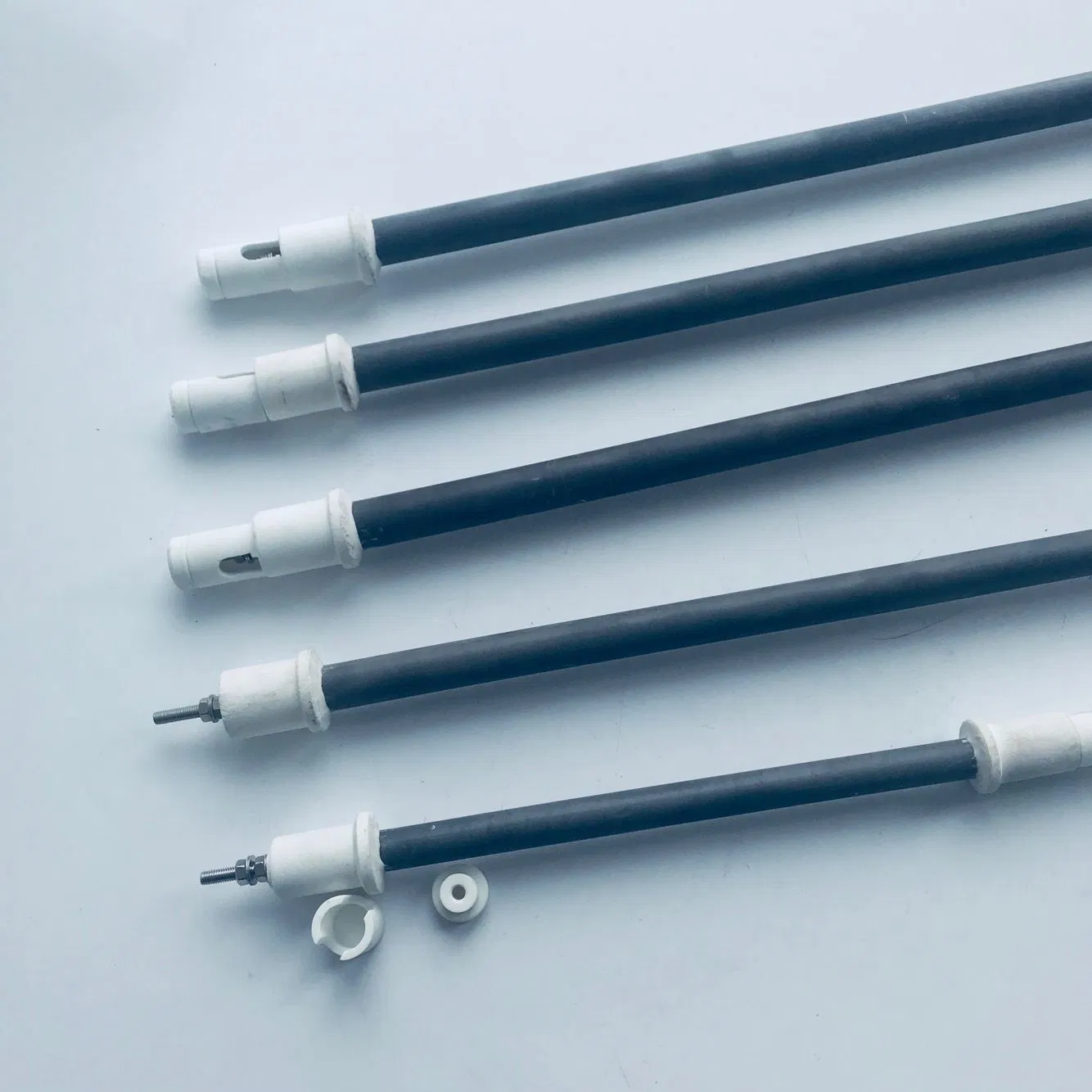

Far Infrared Heating Systems for Baking

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Far Infrared Heating Systems for Baking

Structure

Horizontal Type

Product Name

Ceramic Infrared Tube Heater

Diameters

10mm/12mm/14mm/17mm/20mm

Material

Silicon Carbide

Wavelength

3-50 μ

Energy Saving

30%-50%

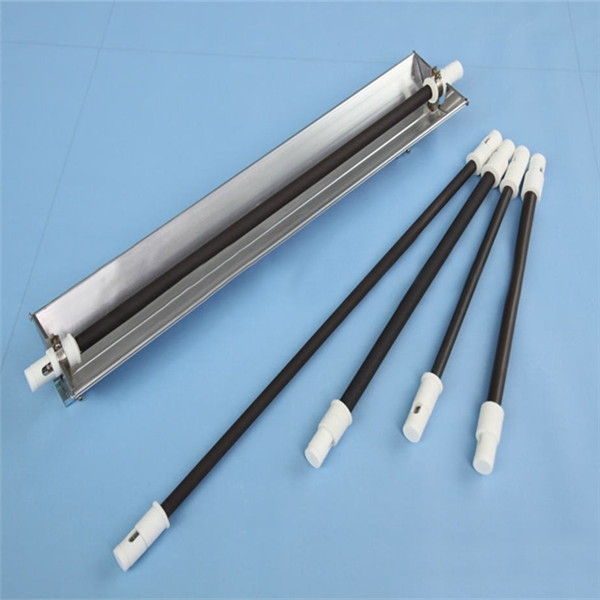

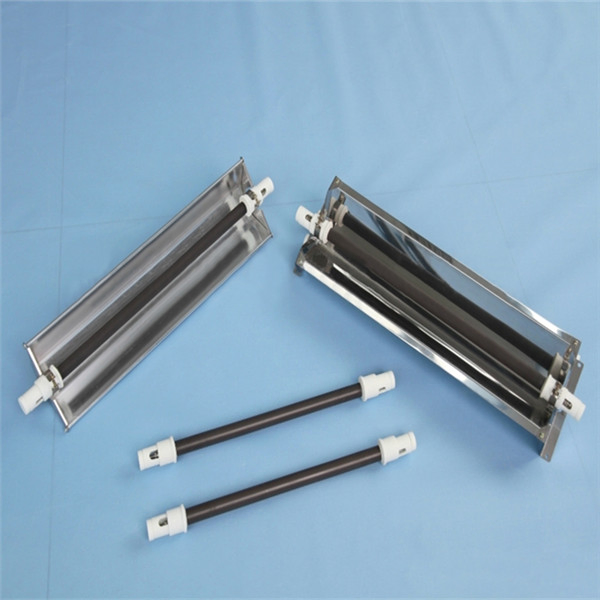

Reflection

Aluminum Case

Power

300W/500W Customized

MOQ

1 Piece

Application

Heating, Drying, Sauna Room

Certification

CE ROHS

HS Code

85168000

Capacity

1000PCS /Month

Technical Parameters

	Tube Material	Carbon silicone ceramic
	Wavelength	3 μ ~ 50 μ
	Diameter	10mm, 12mm, 14mm, 16mm, 20mm (Customizable)
	Wattage	20 ~ 1500W
	Voltages Available	380V, 240V, 220V, 110V, 36V, 24V, 12V
	Max Operating Temp	700ºC
	Heating Elements	Nickel chrome wire
	Diameter Tolerance	±1 mm
	Resistance Tolerance	+10%, -5%

Product Features

✔ Embedding type Sauna Infrared Heaters apply high-quality glaze and ceramic with excellent heat and shock properties.

✔ Low heat loss on non-radiation surfaces, maximizing efficiency.

✔ Significant energy efficiency and environmental protection benefits.

✔ Extreme durability: Can withstand immersion in cold water after power interruption up to forty times without damage.

Customization Options

When inquiring, please provide the following specifications for an accurate quote:

📍 Voltage: 380V, 240V, 220V, 110V or customized.
📍 Wattage: 80W, 100W, 200W, 250W or customized.
📍 Tube Diameter: 10mm to 20mm options.
📍 Length: Fully customizable based on your system.
📍 Quantity: Minimum order quantity 5-10pcs.

Industrial Applications

Drying

Low-temperature drying for Leather, Wood, Precious Metals, Plywood, Fibres, Printing, Film, Paint, Ceramic Glaze, Medicine, Paper, and Food products.

Baking Varnish

Perfect for baking varnish on Car bodies, Motorcycles, Bicycles, Metal Furniture, Sewing Machines, and Refrigerators.

Heating & Forming

Forming, hardening, processing, and preheating of Plastics, PS, and ABS Fiber.

Sterilization

Medical instruments, Drugs, Food packaging, and Dining utensils in commercial or military environments.

Heat Preservation

Dehumidifying and heat preservation for Offices, Auditoriums, Factories, Hospitals, Darkrooms, and Agricultural farms.

Food Processing

Wine and Soy Sauce brewing, Bread fermentation, Biscuit toasting, and Sweet processing.

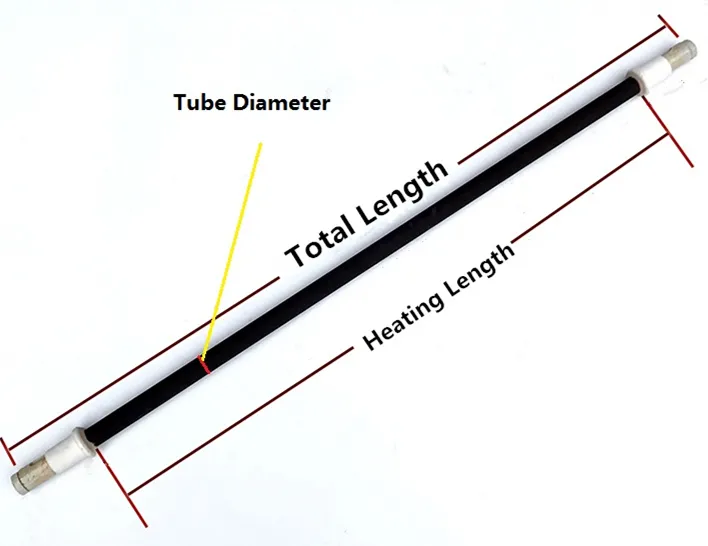

Reference Size Chart

Tube Dia (mm)	Heating Length (mm)	Power (W)	Voltage (V)
12	200mm	200W	220V
12	300mm	300W	220V
14	400mm	400W	220V
14	500mm	500W	220V
14	600mm	600W	220V
16	800mm	800W	220V
16	1000mm	1000W	220V
18	1200mm	1200W	220V
18	1600mm	1600W	220V
20	2000mm	2000W	220V

Frequently Asked Questions

1. What is the wavelength range of the Ceramic Infrared Tube Heater?

The heater provides a far-infrared wavelength range of 3 μ to 50 μ, which is ideal for deep heating and drying applications.

2. How much energy can be saved using this heating system?

Compared to traditional heating methods, our silicon carbide infrared heaters can achieve an energy saving of 30% to 50%.

3. Can the dimensions and power be customized?

Yes, we provide full customization. You can specify the diameter (10mm-20mm), the heating length, and the wattage (20W-1500W) to suit your specific requirements.

4. What is the maximum operating temperature?

These ceramic infrared tube heaters are designed to operate safely and efficiently up to a maximum temperature of 700ºC.

5. Are these heaters resistant to thermal shock?

Absolutely. The radiated element is designed to be highly durable and can withstand multiple cycles of rapid heating and cooling (including water immersion) without damage.

6. What certifications do these heaters have?

Our infrared heating systems meet CE and ROHS specifications, ensuring safety and compliance with international standards.
