Live Racking Solutions for Heavy Duty Warehouse Efficiency

Customization:	Available
After-sales Service:	All Life
Warranty:	One Year

Send Inquiry

Product Description

Technical Parameters

Usage

Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Gravity Rack

Mobility

Adjustable

Height

0-10meter

Weight

500-1500kg

Closed

Semi-closed

Development

Conventional

Serviceability

for Special Purpose

Used Scene

Pallet Density Storage, Cold Warehouse

Load/Unload

Forklift or Forklift Agv

Design

Pallet Size and Weight, Warehouse Size

Surface

Powder Coating or Galvanizing

Origin

China

HS Code

7309000

Capacity

10000 Sets/Year

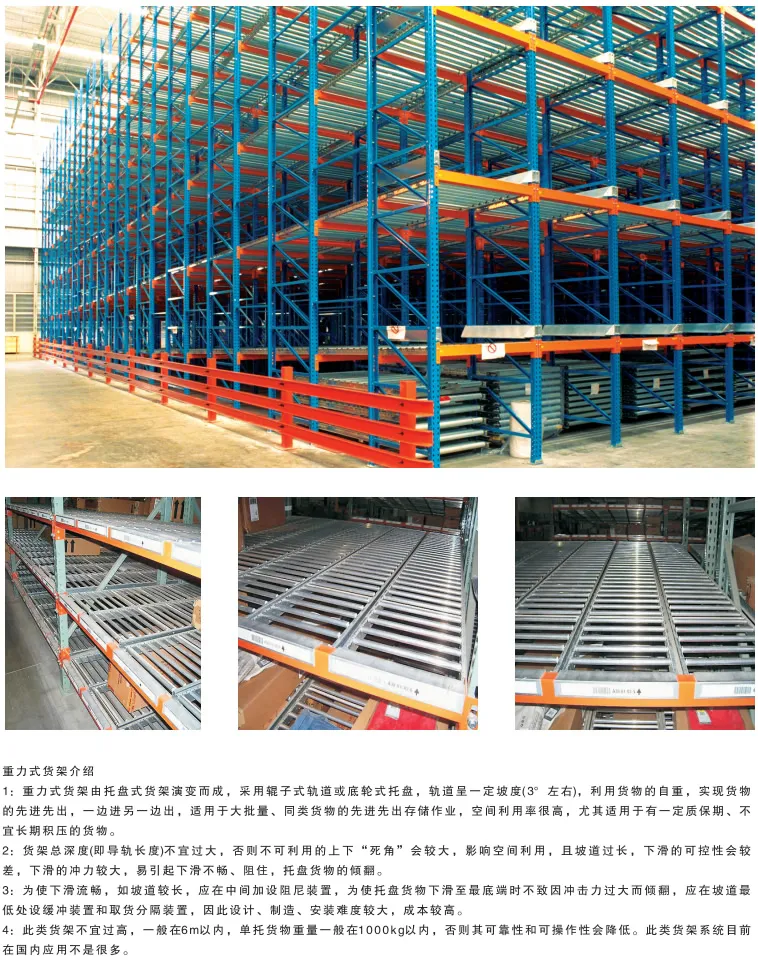

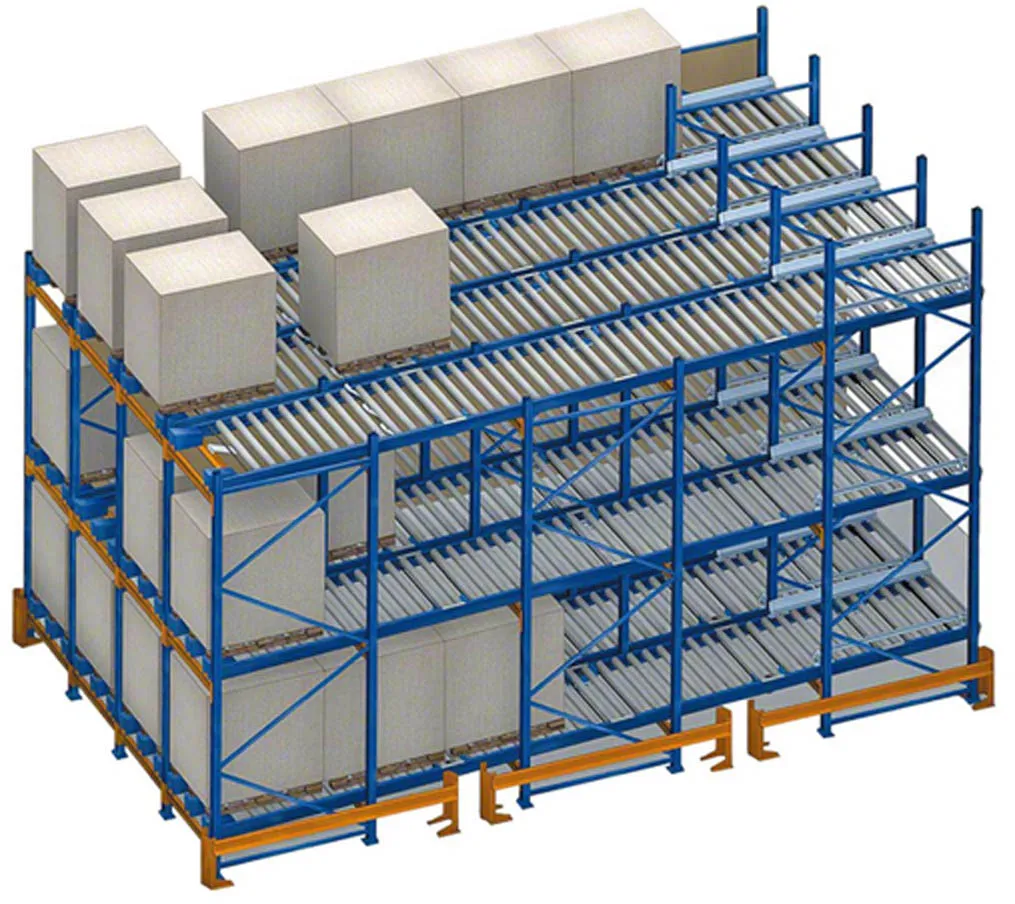

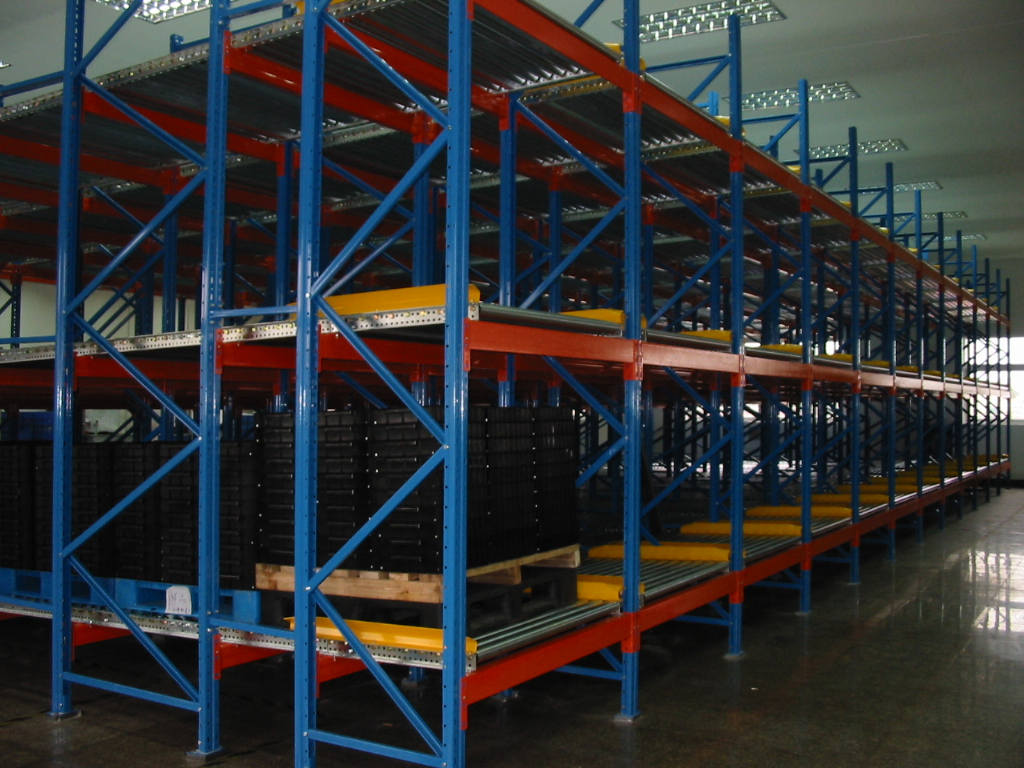

Gravity Flow Racking System Introduction

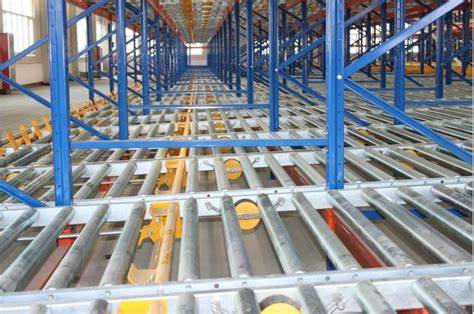

Gravity Flow Racking provides high-density, dynamic warehouse storage efficiency tailored for seamless FIFO (First-In, First-Out) inventory management. It employs inclined roller tracks, allowing goods to glide from the loading point to the picking destination via natural gravity force. This design minimizes manual handling, elevating order-picking efficiency.

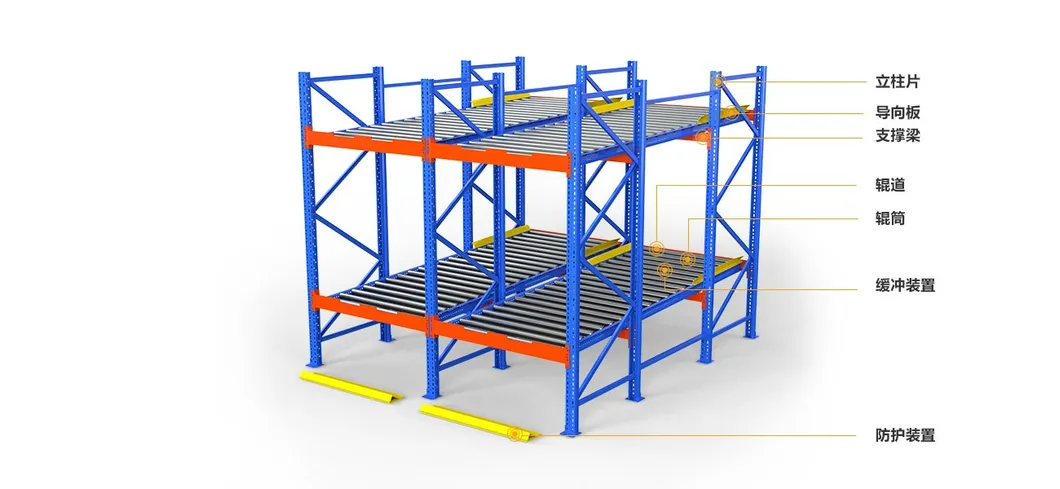

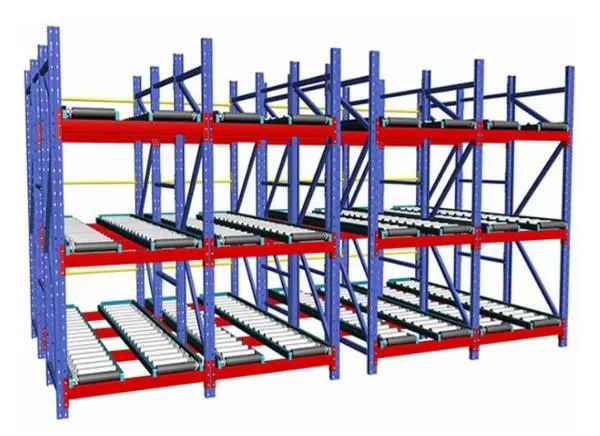

1. Structural Design

Roller Tracks: Precision-engineered inclined steel or polymer rollers with low-friction bearings.
Frame Structure: Robust steel uprights and beams designed to support heavy pallet loads.
Braking System: Integrated speed controllers or wheel brakes for precise movement regulation.
Loading/Unloading Zones: Strategically designated entry and exit points for workflow efficiency.
Material Quality: Galvanized or powder-coated steel for corrosion resistance; rollers made of nylon, polyurethane, or steel.

2. Key Advantages

High-Density Storage: Maximizes warehouse space by eliminating aisle gaps.
FIFO Compliance: Facilitates automatic stock rotation for time-sensitive goods.
Labor Efficiency: Diminishes forklift travel and manual picking time by up to 50%.
Scalability: Modular design allows for seamless expansion or reconfiguration.
Safety: Roller brakes and guardrails ensure load stability and prevent collisions.

3. Applications

This system is ideal for various industries including:

Food & Beverage: Cold storage for perishables ensuring freshness.
E-commerce: High-speed picking for small to medium parcels.
Automotive: Efficient storage of tires, batteries, and kits.
Pharmaceuticals: Critical FIFO management for expiration dates.
Retail: Rapid replenishment of high-turnover items.

4. Technical Specifications

Parameter	Specification
Load Capacity	500-2,000 kg per lane
Roller Pitch	Adjustable 75-150 mm
Incline Angle	3°-7° optimized for gravity flow
System Height	Customizable 2-12 meters
Compliance	FEM 10.2.02, OSHA, or ISO standards

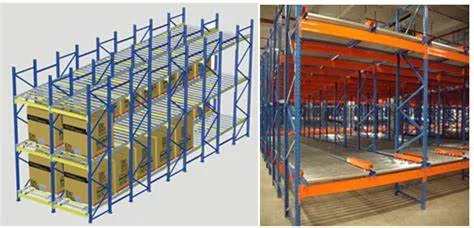

5. Types of Flow Racking

Type	Features	Use Case
Carton Flow Racking	Designed for boxed items with rollers spaced for small SKUs.	Retail warehouses and pharmacies.

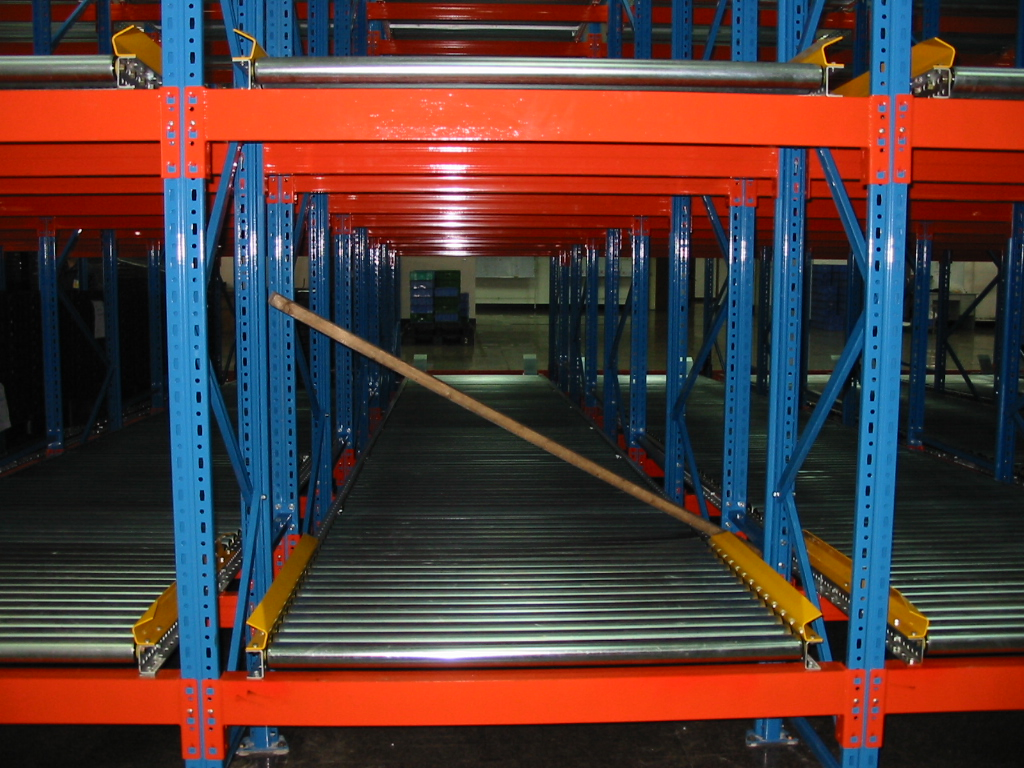

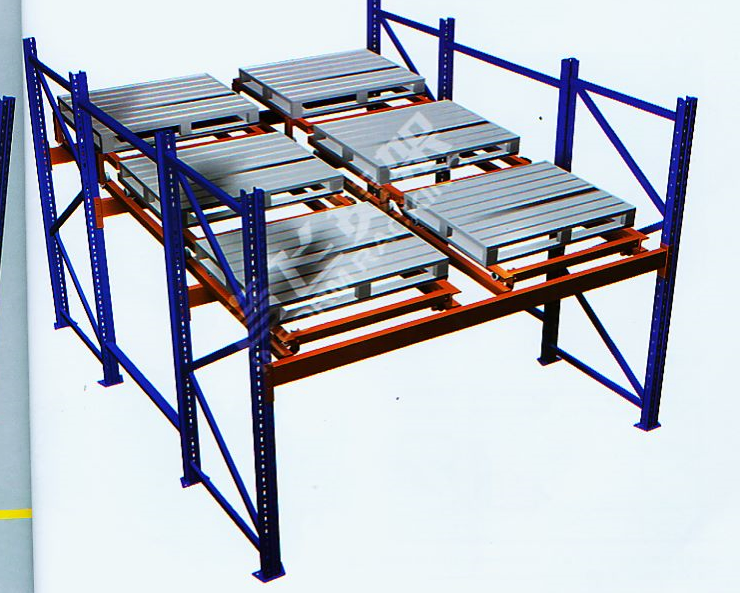

Pallet Flow Racking	Heavy-duty rollers designed for full pallet loads.	Bulk storage like beverages.
Hybrid Systems	Blends flow lanes with static shelving.	Mixed inventory environments.

6. Installation & Safety Guidelines

Floor Preparation: Floor must be leveled to maintain consistent incline angles.
Load Testing: Verification of roller speed and braking before full operation.
Safety Features: Installation of guardrails and photoelectric sensors.
Maintenance: Annual lubrication of rollers and quarterly alignment inspections.

7. Comparison with Static Shelving

Feature	Gravity Flow Racking	Static Shelving
Space Utilization	High-density, no aisles	Requires aisles, less efficient
Workflow	Seamless FIFO automation	Manual FIFO/LIFO management
Labor Cost	Lower picking time	Higher manual handling costs
Investment	Higher initial outlay	Lower initial costs

Frequently Asked Questions

Q: How does the Gravity Flow Racking system work? A: It uses inclined roller tracks and gravity to move pallets or cartons from the loading side to the picking side automatically, ensuring a First-In, First-Out (FIFO) flow.

Q: What is the benefit of the braking system in flow racks? A: The braking system or speed controllers regulate the speed of moving pallets to prevent collisions and ensure they reach the picking face safely.

Q: Can the system be used in cold storage environments? A: Yes, it is highly suitable for cold warehouses and food storage where high-density storage and strict FIFO rotation are required.

Q: Is the system customizable for different pallet sizes? A: Absolutely. The roller pitch and lane width can be customized to match your specific pallet dimensions and weight requirements.

Q: How often does the system require maintenance? A: We recommend annual lubrication of the rollers and quarterly inspections of the alignment and braking components to ensure long-term reliability.

Q: What is the typical height range for this racking system? A: The system height is customizable, generally ranging from 2 meters up to 12 meters, depending on your warehouse ceiling height and forklift capabilities.
