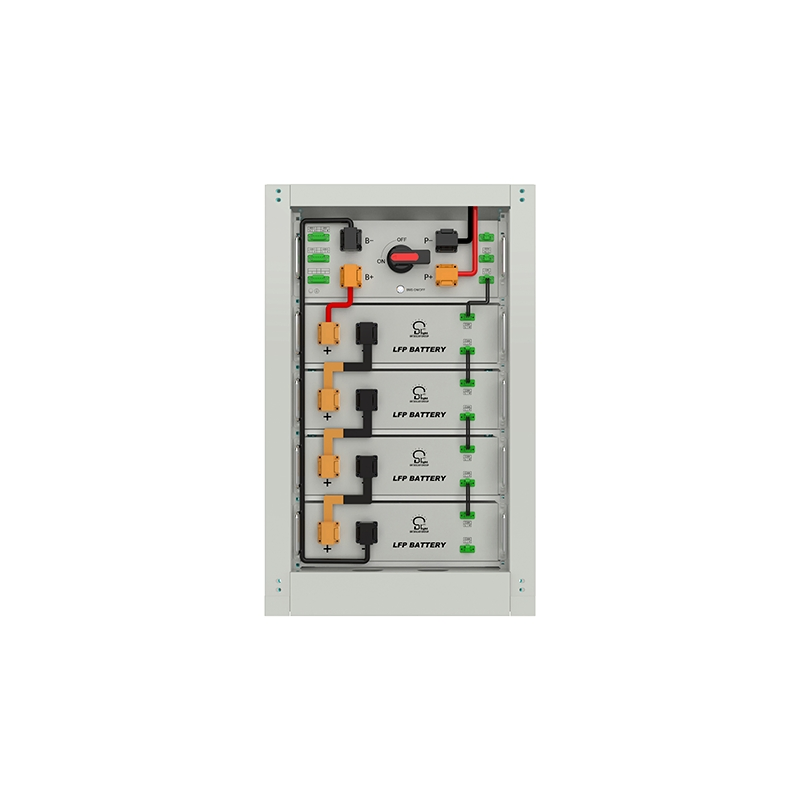

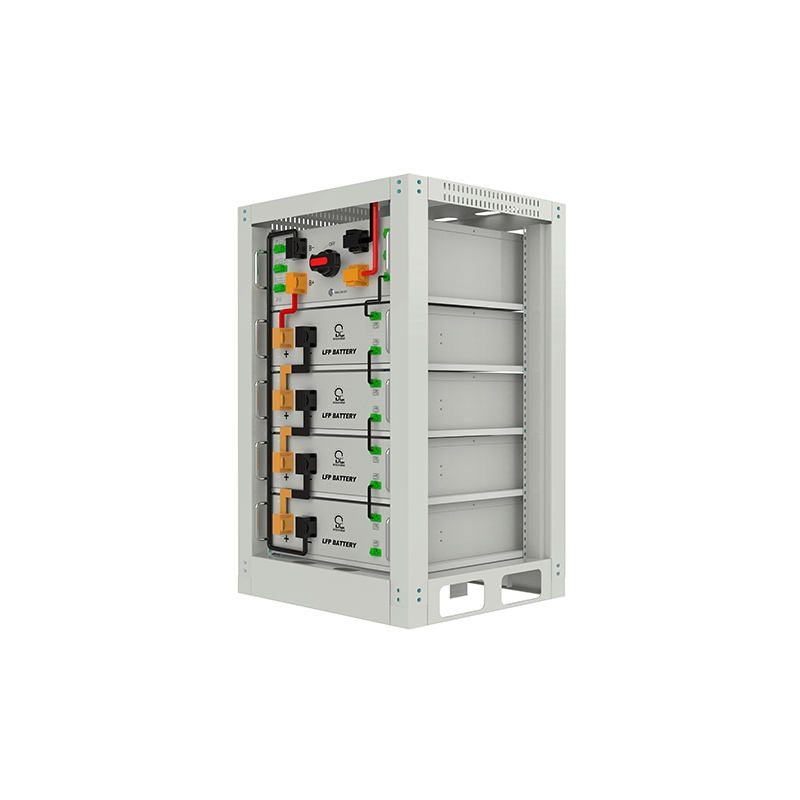

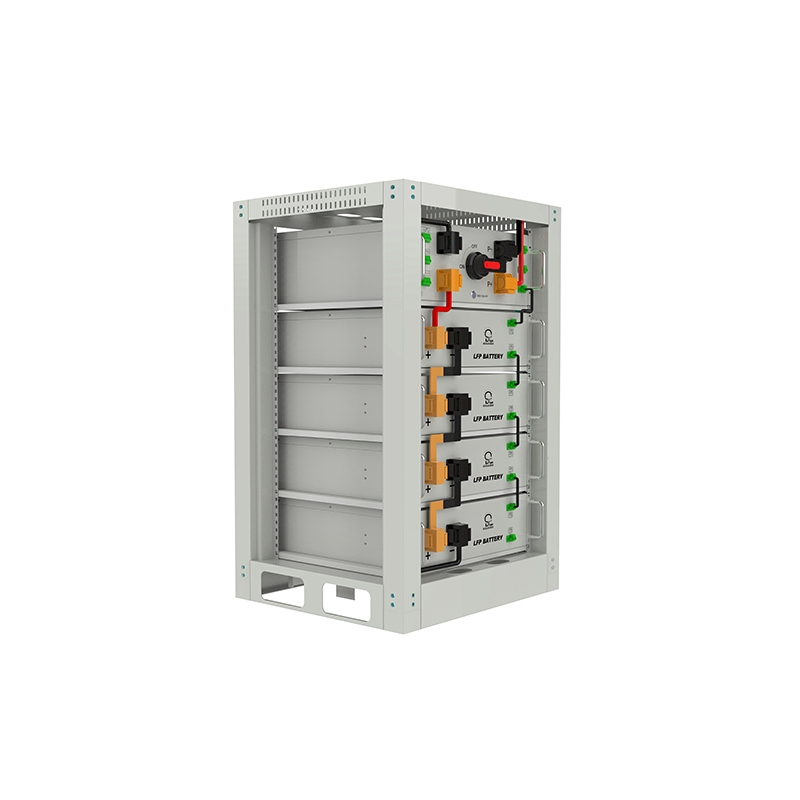

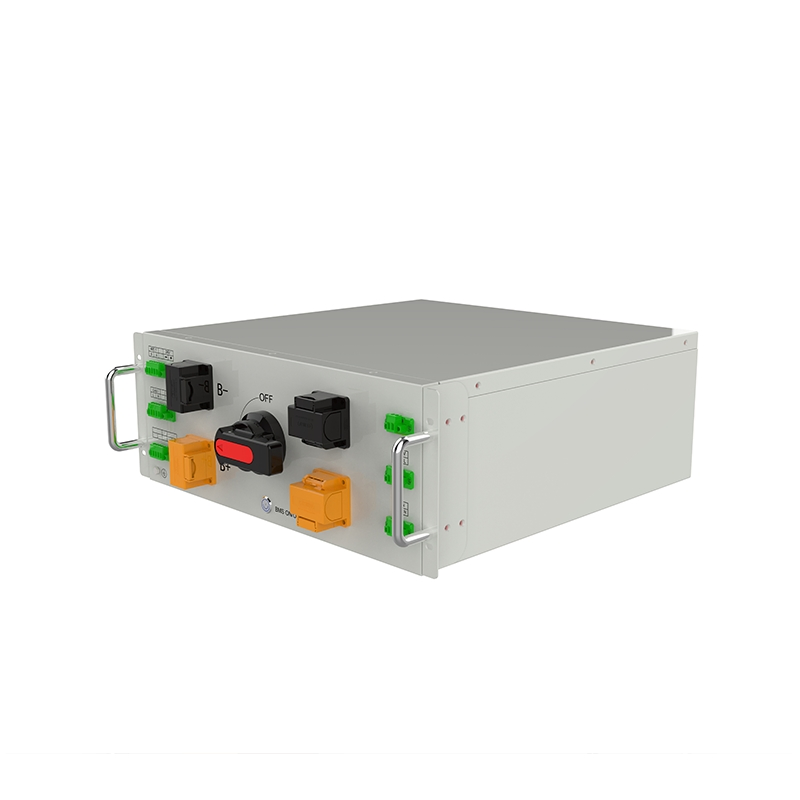

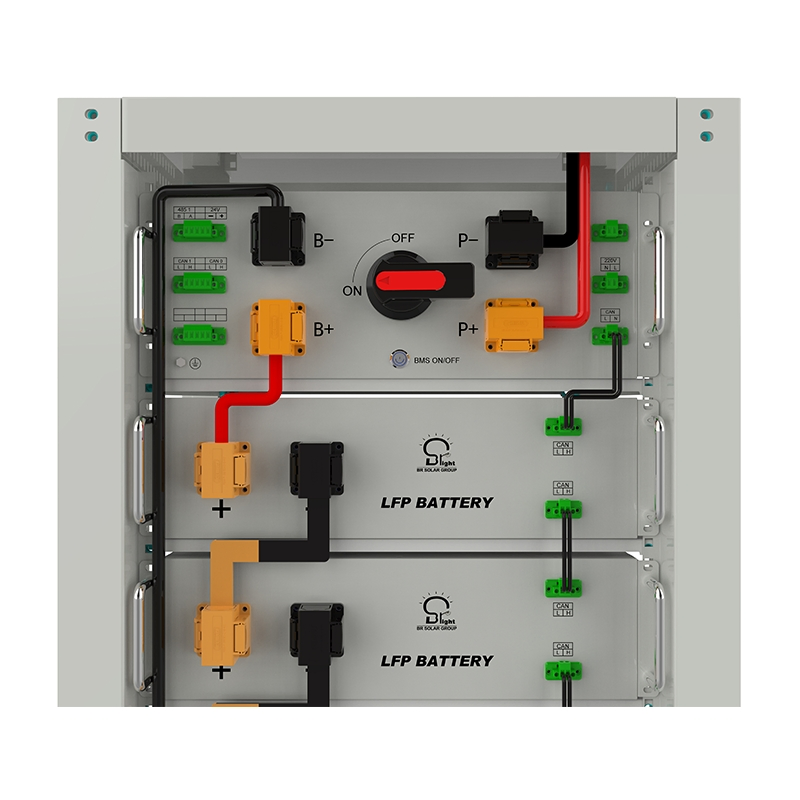

High Voltage Stacked Lithium Battery 106ah 20kw Deep Cycle Rack-Mounted Lithium Battery System for Home Use

1 / 5

High Voltage Stacked Lithium Battery 106ah 20kw Deep Cycle Rack-Mounted Lithium Battery System for Home Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

BR-BLH Lithium Battery

Rechargeable

Yes

Size

680*485*180mm

Nominal Capacity

5/7.5/10kwh

Cycle Life

More Than 6000 Times

Material

LiFePO4 Battery

Display

LCD Indicator

Battery Cell

3.2V 50ah Prismatic Cell

Inverter Matched

Solax, Deye, Goodwe, Growatt, Victron, Sofar, Gmde

HS Code

8507600090

Production Capacity

100000PCS/Month

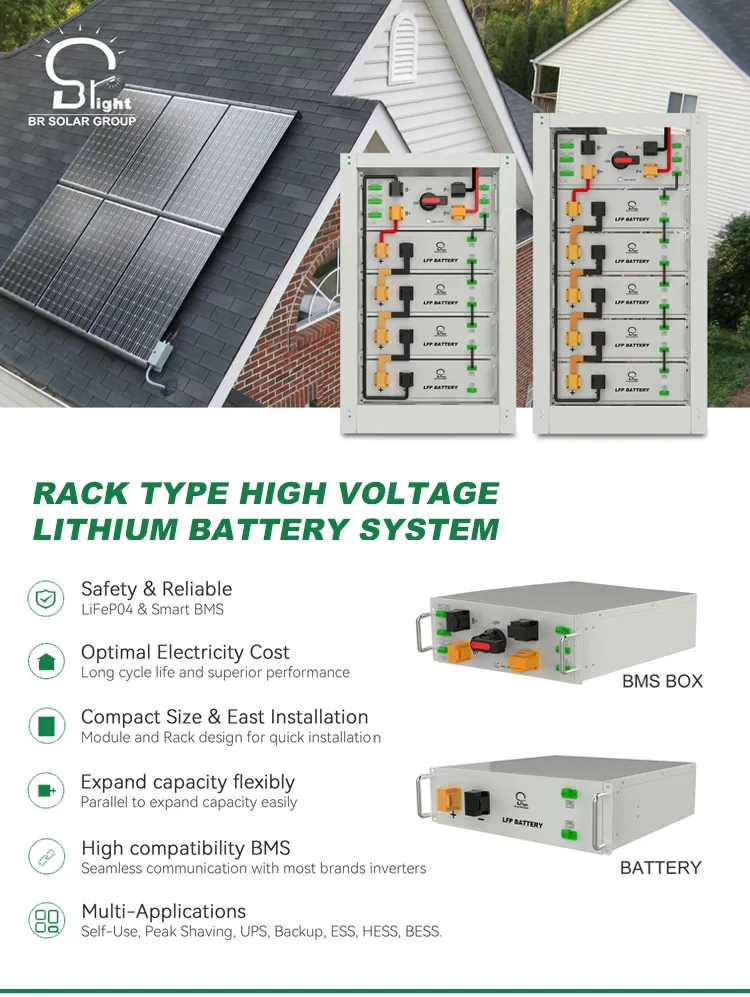

High Voltage Stacked Lithium Battery System

Technical Parameters

MODEL	BRLF-HV15K15SN	BRLF-HV20K15SN	BRLF-HV25K15SN	BRLF-HV30K15SN	BRLF-HV35K15SN	BRLF-HV40K15SN
Nominal Voltage	144V	192V	240V	288V	336V	384V
Nominal Capacity	106AH
Nominal Energy (KWH)	15.26KWH	20.35KWH	25.44KWH	30.52KWH	35.61KWh	40.7KWH
Weight(kg)	165KG	210KG	258KG	305KG	352KG	406KG
Communication	RS485/RS232/CAN
Design Life	15 years+
Cycle Life	(0.5C/0.5C-80% D0D) >6000 times

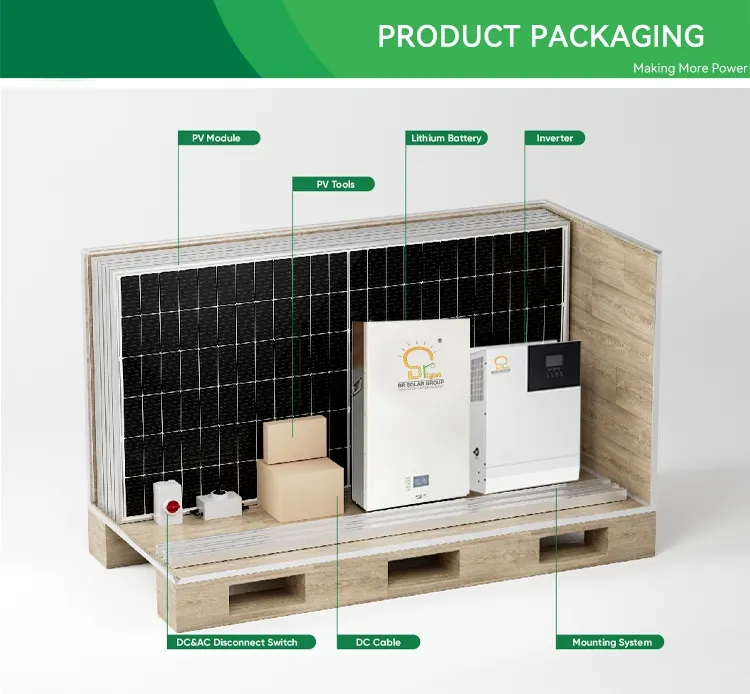

Packaging & Delivery

Package Size

80.00cm * 50.00cm * 30.00cm

Package Gross Weight

9.100kg

Transport Package

Standard Export Carton with Foam Inside

Frequently Asked Questions

Q: What is the expected cycle life of this LiFePO4 battery?

A: The battery offers a deep cycle life of more than 6000 times at 80% DOD (Depth of Discharge), ensuring over 15 years of design life.

Q: Which inverter brands are compatible with this system?

A: Our lithium battery system is matched and tested with major inverter brands including Solax, Deye, Goodwe, Growatt, Victron, Sofar, and Gmde.

Q: Does the battery include a monitoring system?

A: Yes, it features a built-in LCD indicator to monitor battery status and supports RS485/RS232/CAN communication protocols.

Q: Can I connect multiple units together?

A: Yes, the system supports series functions, allowing for up to 16 units to be connected in series to meet higher voltage requirements.

Q: What certifications does this battery hold for international safety?

A: The battery system is fully certified with CE, IEC, UL, UN38.3, and MSDS standards, ensuring safety during transport and use.

Q: What are the recommended operating temperatures?

A: The recommended charging temperature is between -10ºC and 50ºC, and the discharge temperature is between -15ºC and 50ºC.
