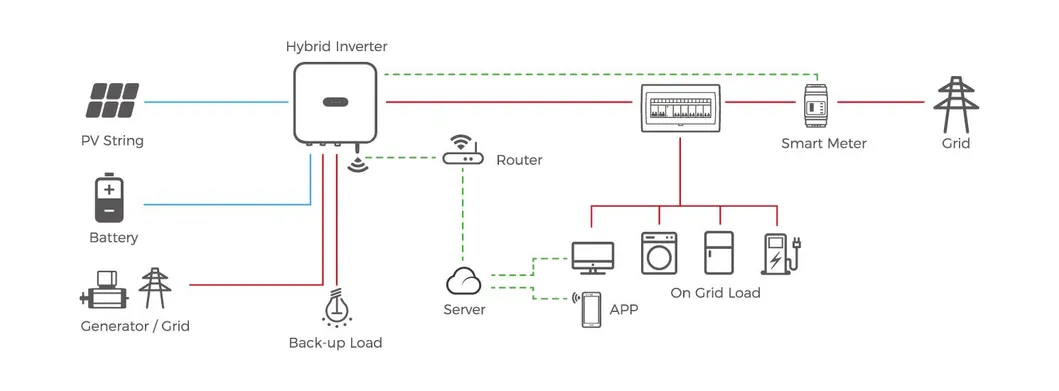

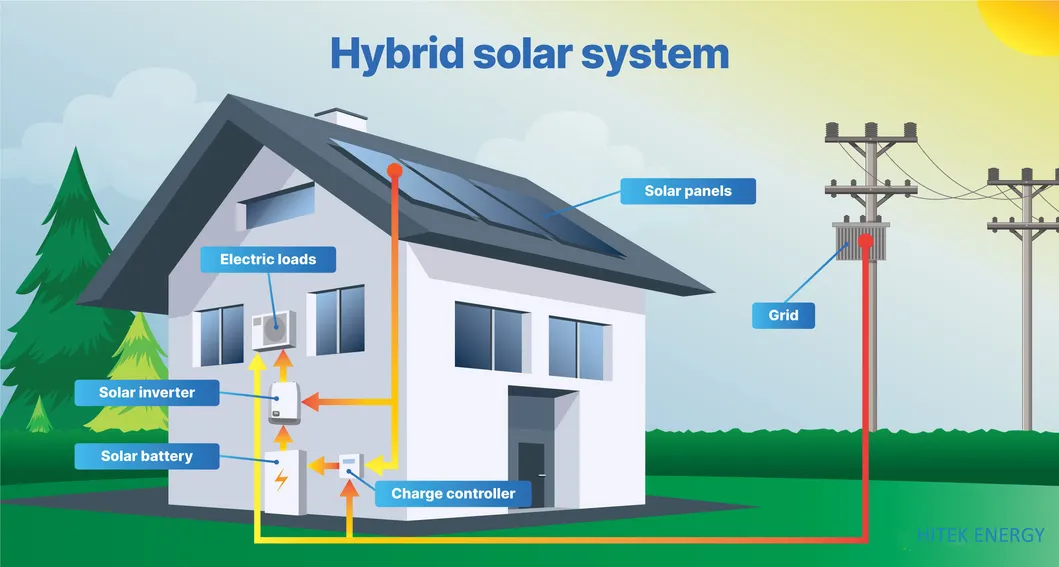

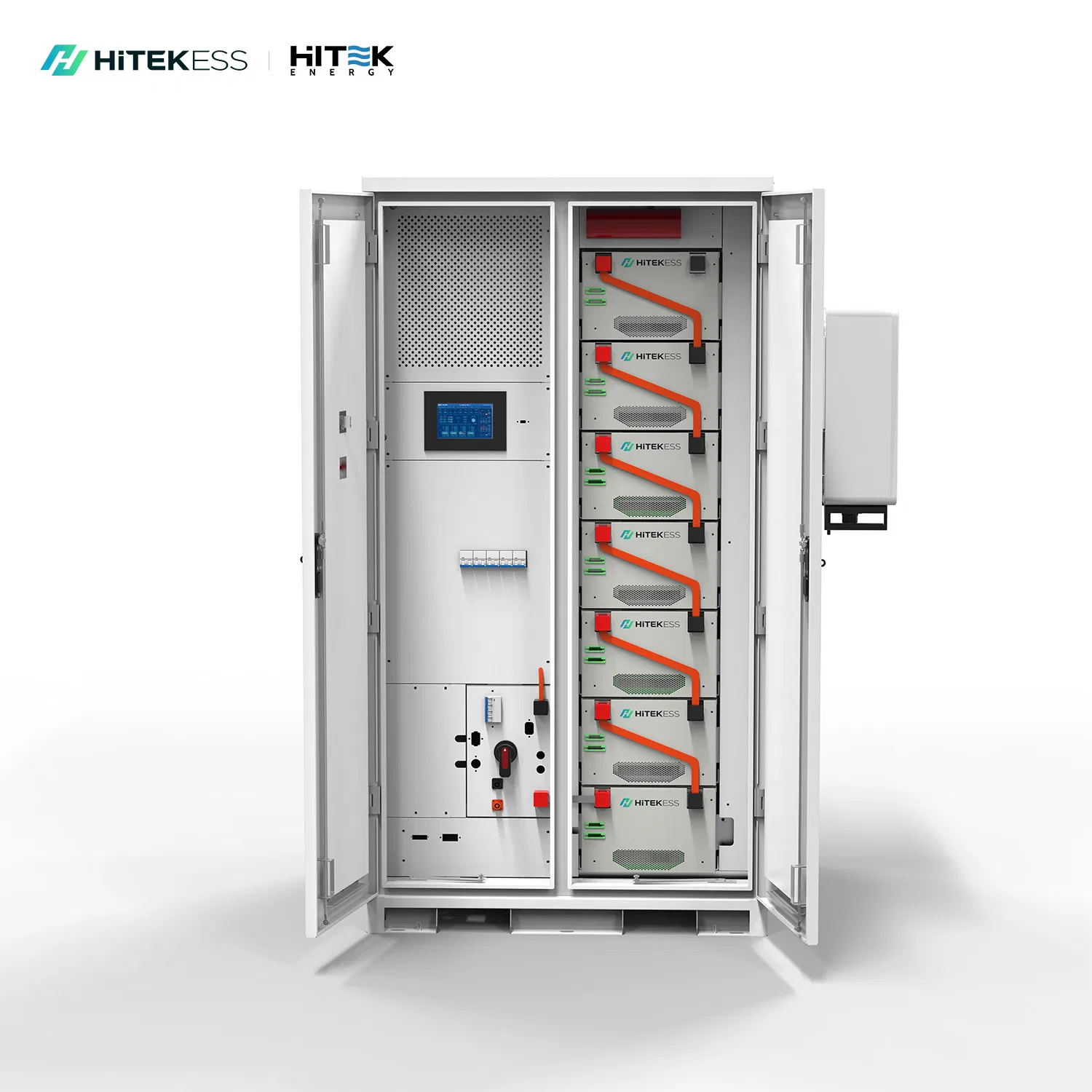

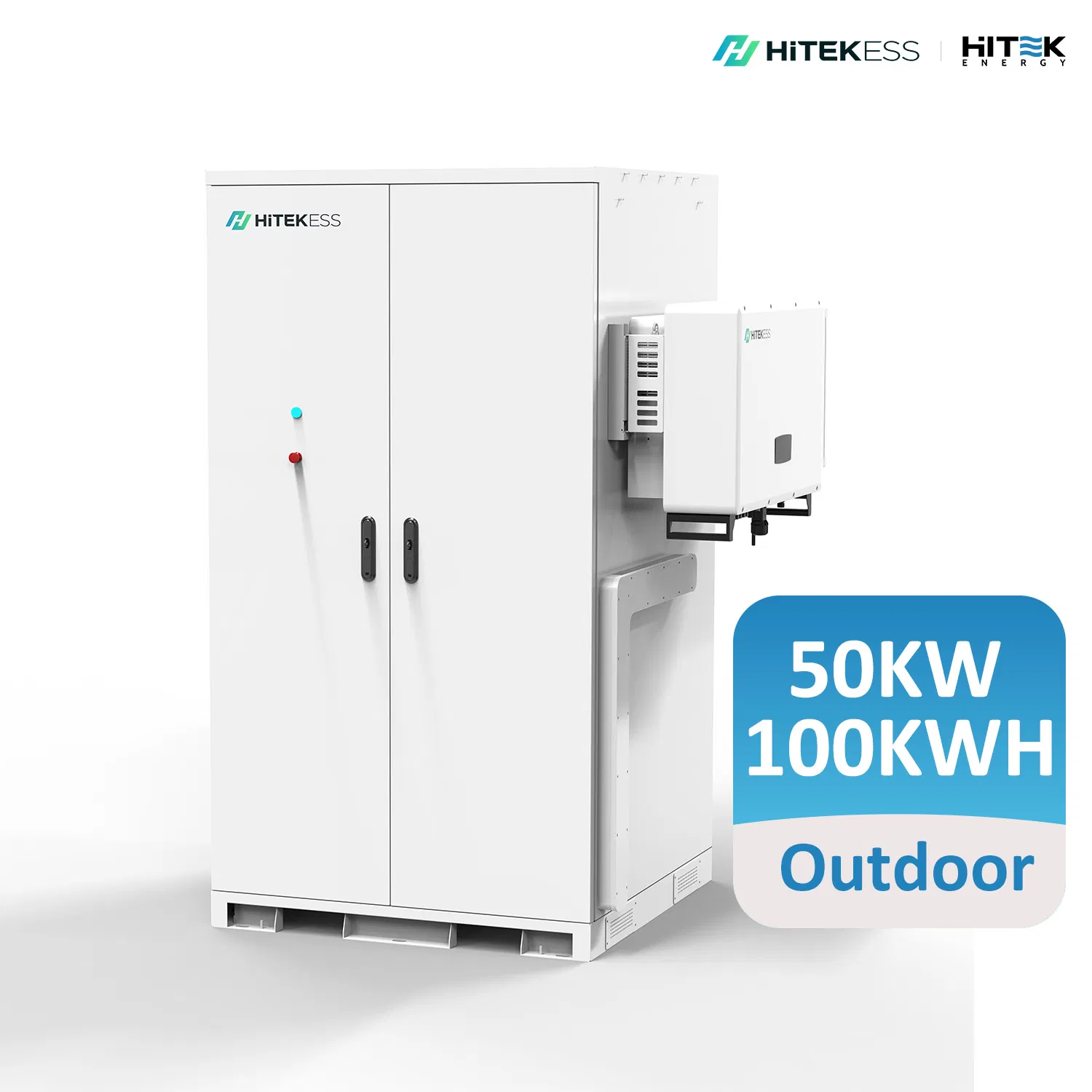

The Hybrid system is a combination of solar energy storage with grid connection. It has battery backup to store power and has the ability to feed surplus electricity into main grid.
| 50KW SOLAR SYSTEM CONFIGURATION | |||||
|---|---|---|---|---|---|
| No. | Product name | Specification | Unit | Qty | Remark |
| 1 | Solar Module | BSM560M10-72HPH | pcs | 96 | Totally 53.76KW |
| 2 | PV Combiner Box | 6 input and 6 output | pc | 1 | 1000V DC |
| 3 | Hybrid Inverter | BSE50KH3 | pc | 1 | 3 Phase 400V 50Hz |
| 4 | Lithium Battery | 51.2V 280Ah | pack | 7 | Totally 100.352KWH |
| 5 | HV Control box | High Voltage | pc | 1 | - |
| 6 | Battery Rack | Standard Rack | set | 1 | - |
| 7 | Cables | Battery-inverter cable | pcs | 2 | 35mm2 cable |
| 8 | Monitoring | WiFi Monitoring | set | 1 | Remote Access |

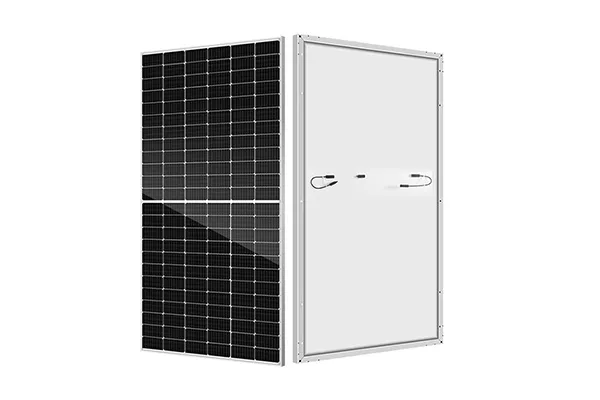

Model: HT560M-72
Peak Power: 560Wp
Dimensions: 2279*1134*35mm

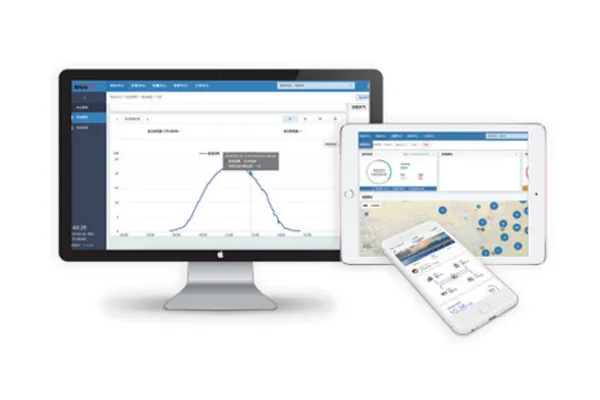

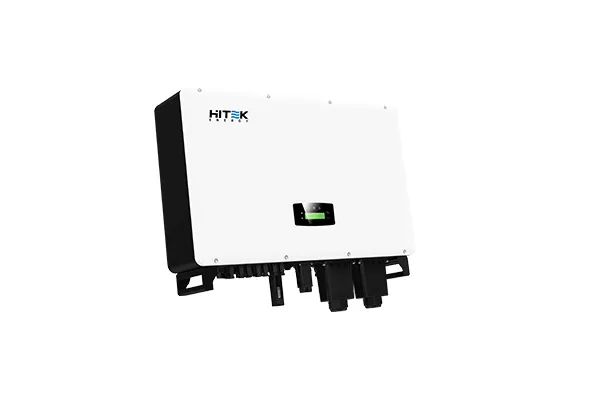

Smart Monitoring & Remote Upgrade
Built-in Anti-feed-in Function
Configurable Operation Modes
One-click installation
Real-time data security
Lifecycle data storage

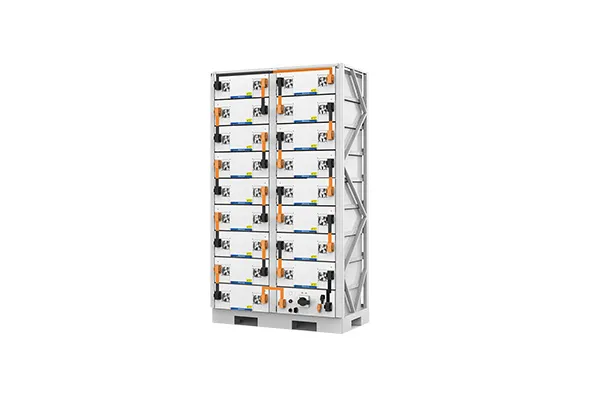

LiFePO4 Lithium Ion
6000+ Cycle Life
90% DOD, Maintenance-free

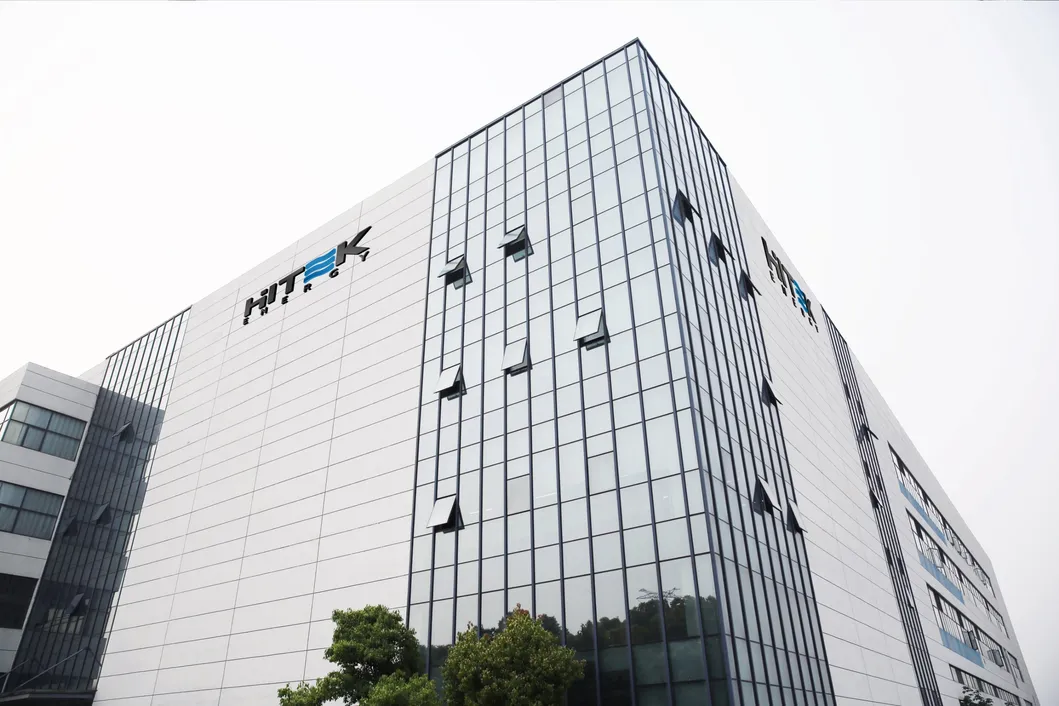

Founded in 2018. As a superior photovoltaic manufacturer, we are dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
