Modular Metal Furniture System for Efficient Manufacturing Solutions

Customization:	Available
After-sales Service:	Full Drawing, Install Guide or Training
Connection Form:	Bolt Connection

i

Basic Specifications

Model NO.

GY-SW1452

Material

Steel Structure

Usage

Warehouse, Workshop, Hangars

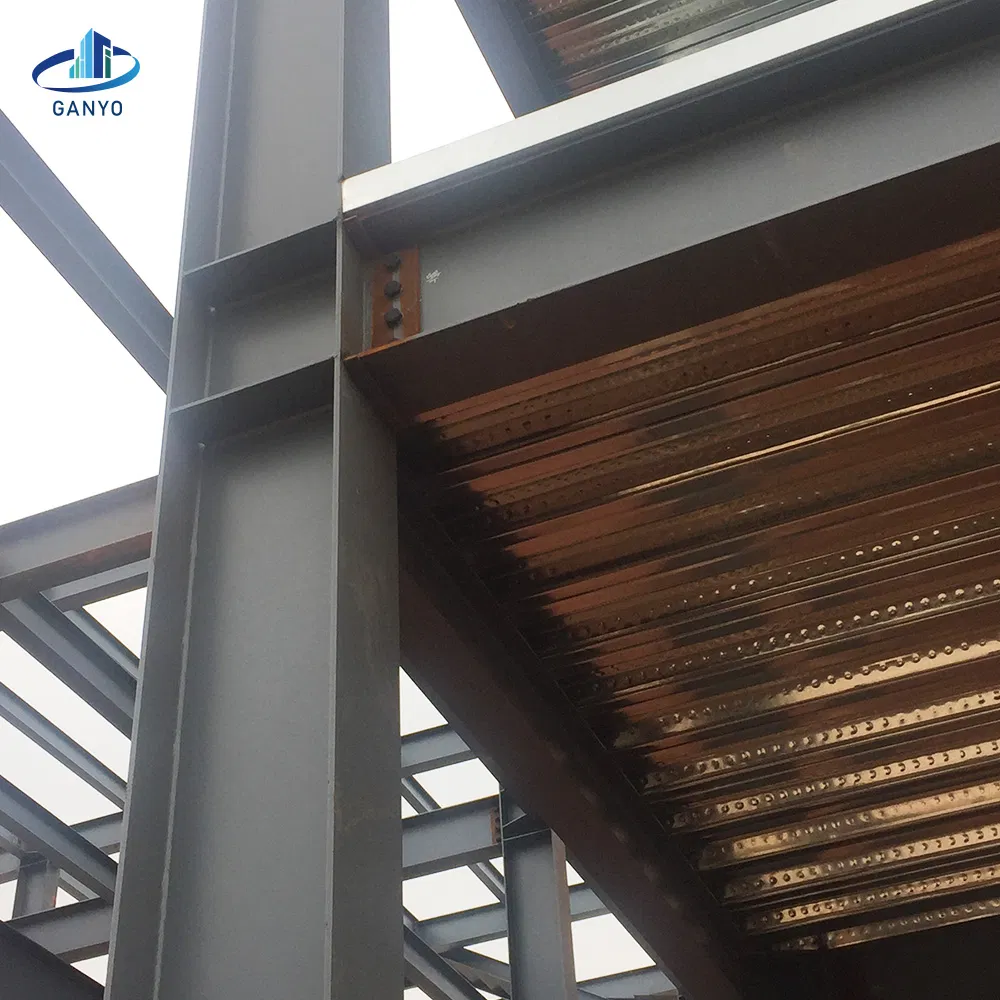

Structure Frame

Portal Frame

Steel Code

Q355 & Q235

H Steel Type

Hot Rolled or Welded

Wind Loading

80km/H-120km/H

Seismic Grade

7 Grade

Connection

Bolts Connection

Surface Treatment

Painting or Galvanized

✔

Advantages of Steel Structure Building

★Flexible layout for various industrial needs.
★High seismic and wind resistance with strong plasticity.
★Quick assembly and exceptionally long service life.
★Lightweight construction with high quality-to-cost ratio.
★Environmental friendly: 100% recycled or degradable materials.

⚙

Technical Specifications

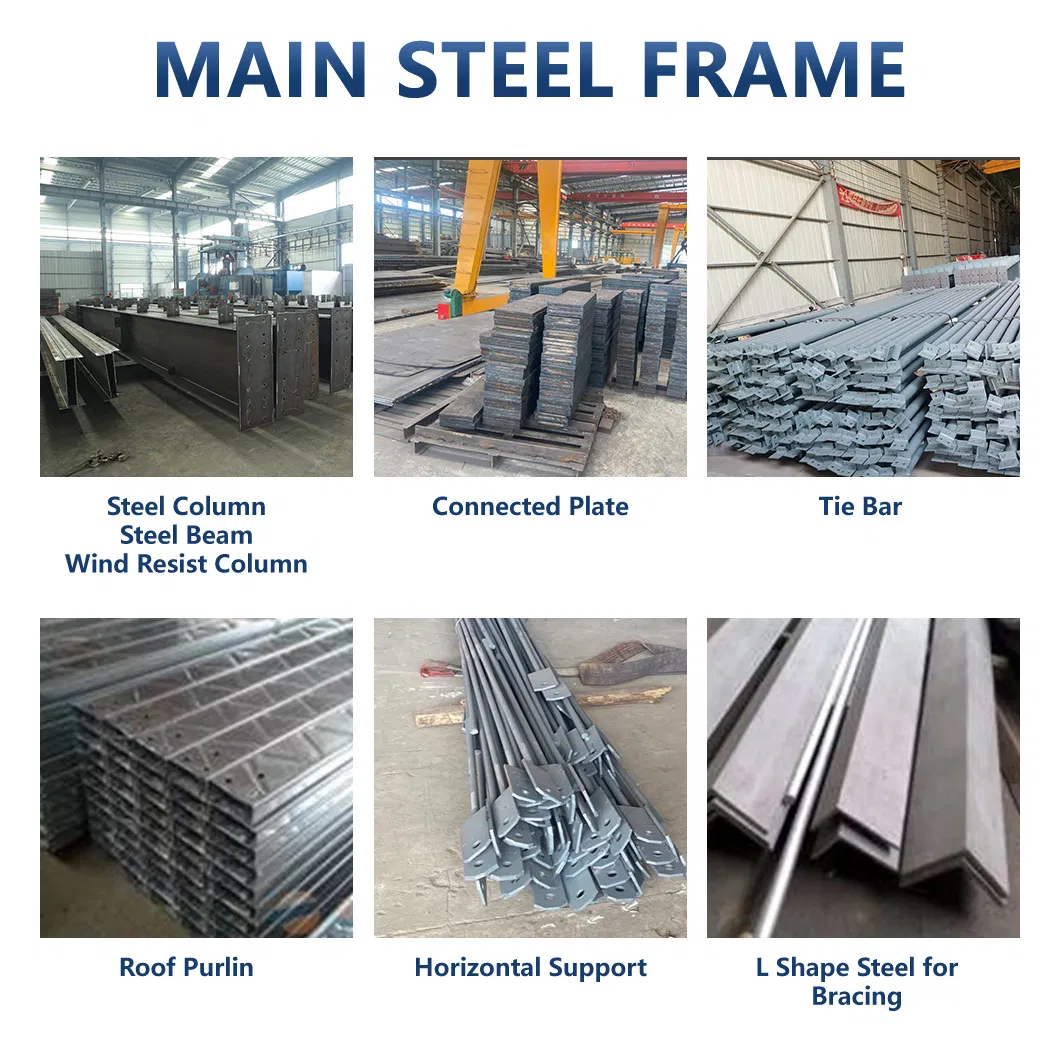

Component	Description	Material/Grade
Steel Column/Beam	Hot rolled H-beam or welded H beam	Q355B
Tie Bar	¢89*3 Steel pipe	Q235B
Horizontal Support	¢20 Round steel	Q235B
Roof/Wall Purlin	C-section steel C1605020*2.0	Q235B Galvanized

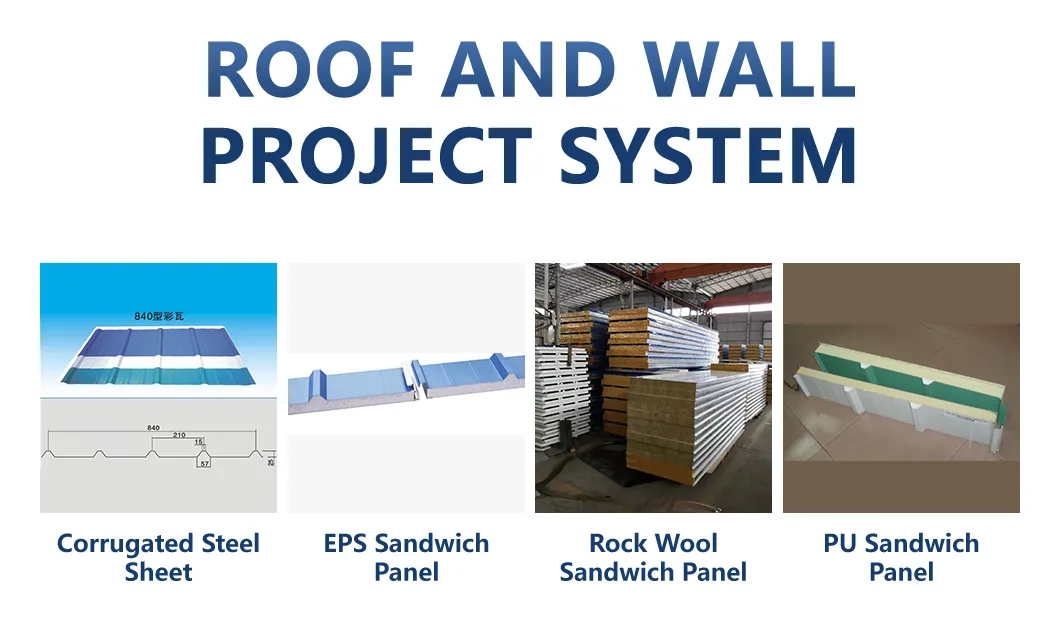

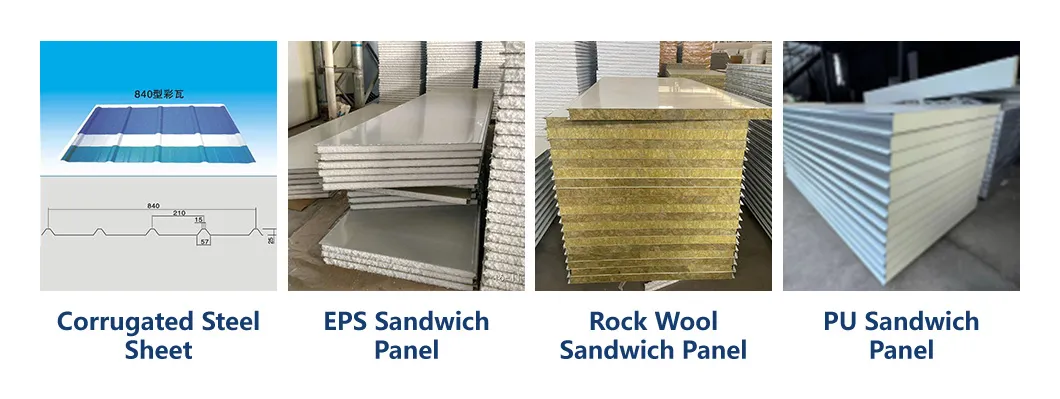

Roof Cladding	EPS/Rock Wool/PU Sandwich Panel or Corrugated Sheet	Optional Thickness

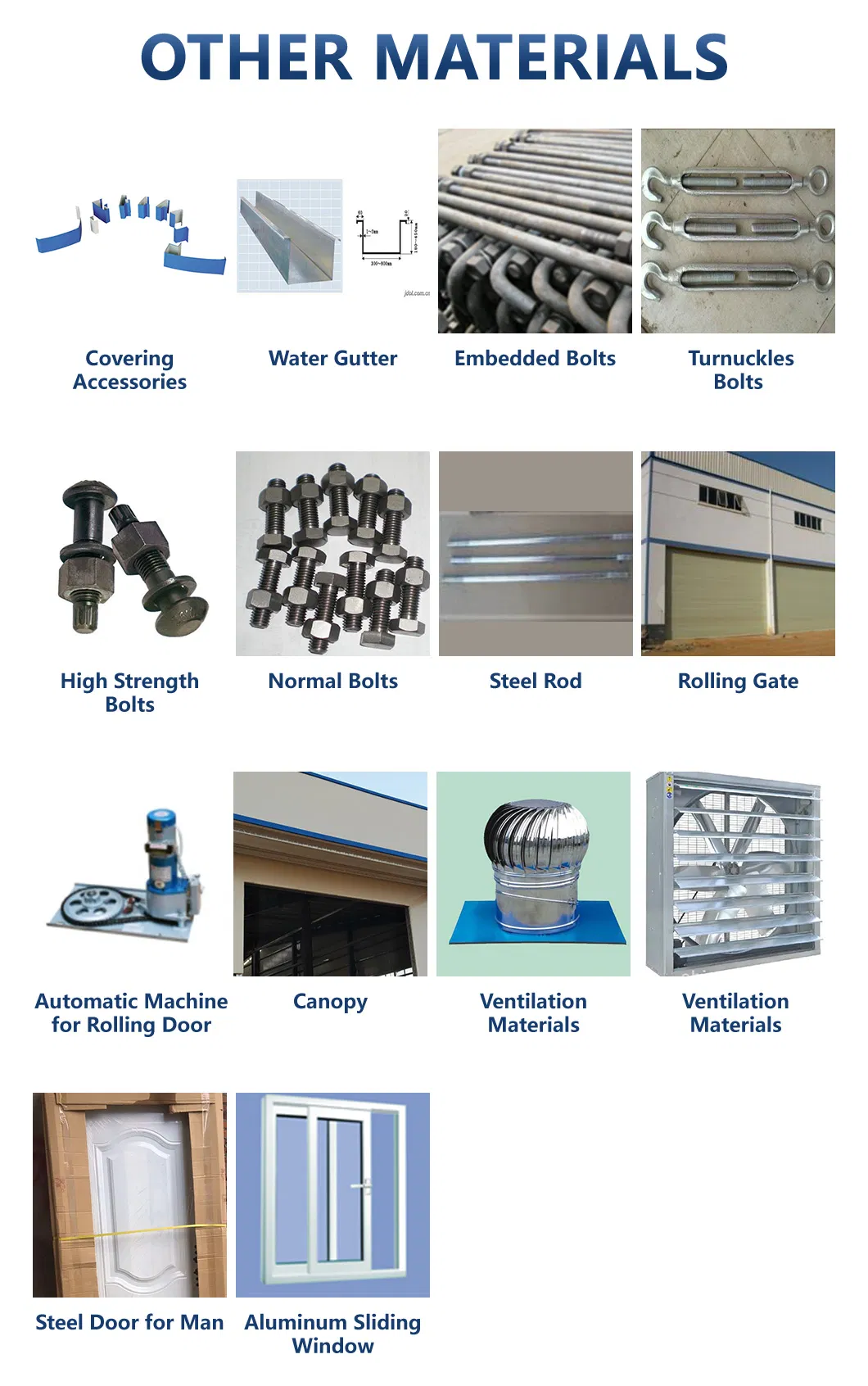

Accessories	Stainless steel gutters, downpipes, high-strength bolts	Standard Grade

⚓

Construction & Design

◈

Professional Services

Professional Design & Engineering

Complete structural solutions for industrial buildings tailored to your specific loading and size requirements.

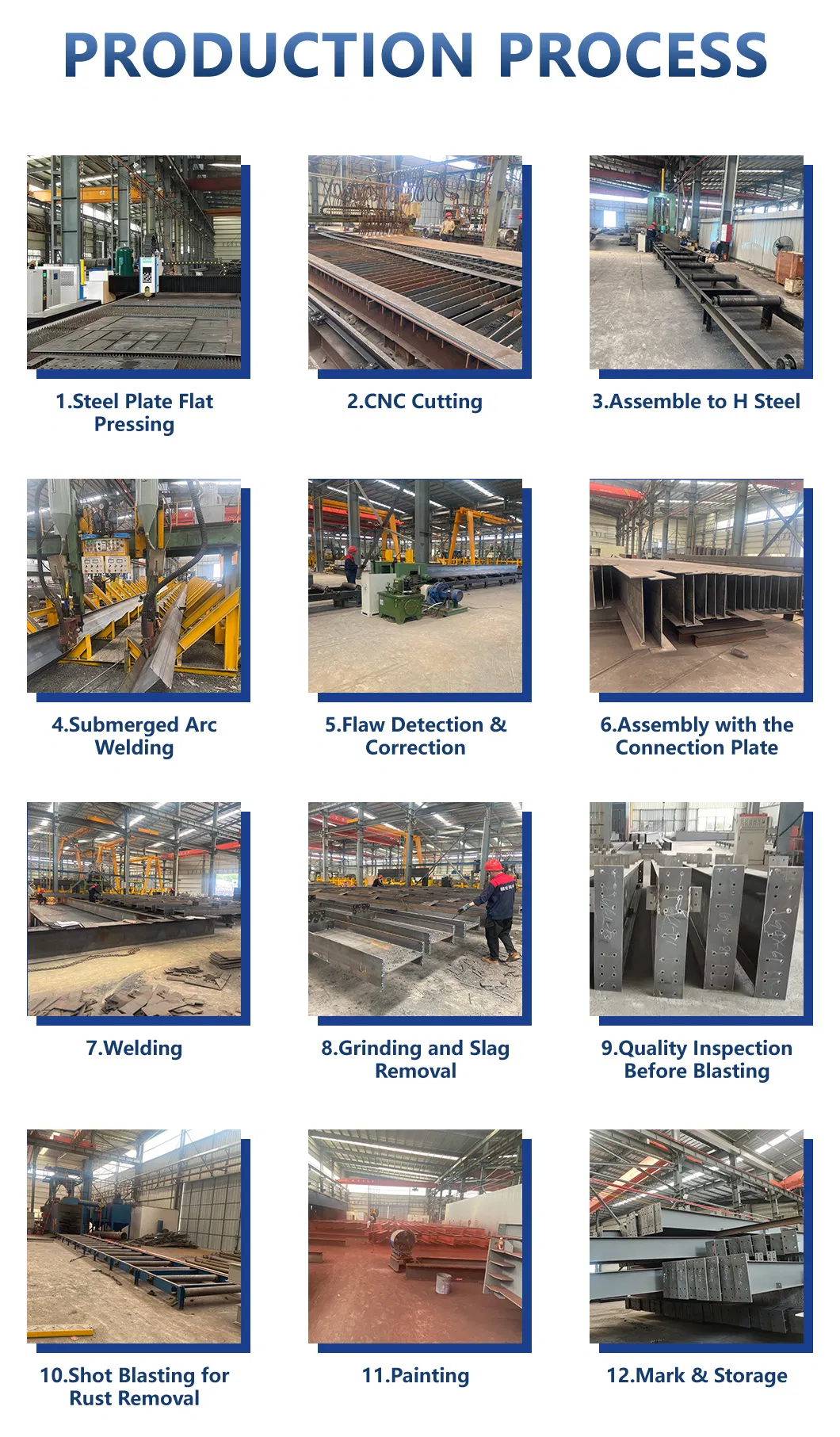

Quality Procurement & Manufacturing

Sourcing high-grade materials and manufacturing under strict ISO standards to ensure high-tech precision.

Site Management & Supervision

Deployment of expert engineers to oversee site installation and provide technical guidance for construction teams.

?

Customization Factors

To provide an accurate design, please consider the following:

Local Weather: Wind speed, snow load, and seismic rating.
Dimensions: Total length, width, and eave height.
Purpose: Workshop, warehouse, office, or accommodation.
Internal Equipment: Need for cranes (lifting capacity/height).
Insulation: Type of sandwich panels or single steel sheets.

Q

Frequently Asked Questions

Q: Are you a manufacturing factory?

A: Yes, we are a manufacturing factory. We welcome clients to visit our facility to see our professional quality control process and high-tech fabrication.

Q: How do you ensure product quality?

A: We check products at all manufacturing stages—from raw materials to finished goods. Third-party testing like SGS and BV is also available.

Q: Can you provide customized design services?

A: Absolutely. Our design team creates full solution drawings based on your specific environmental conditions and functional requirements.

Q: Do you offer on-site installation support?

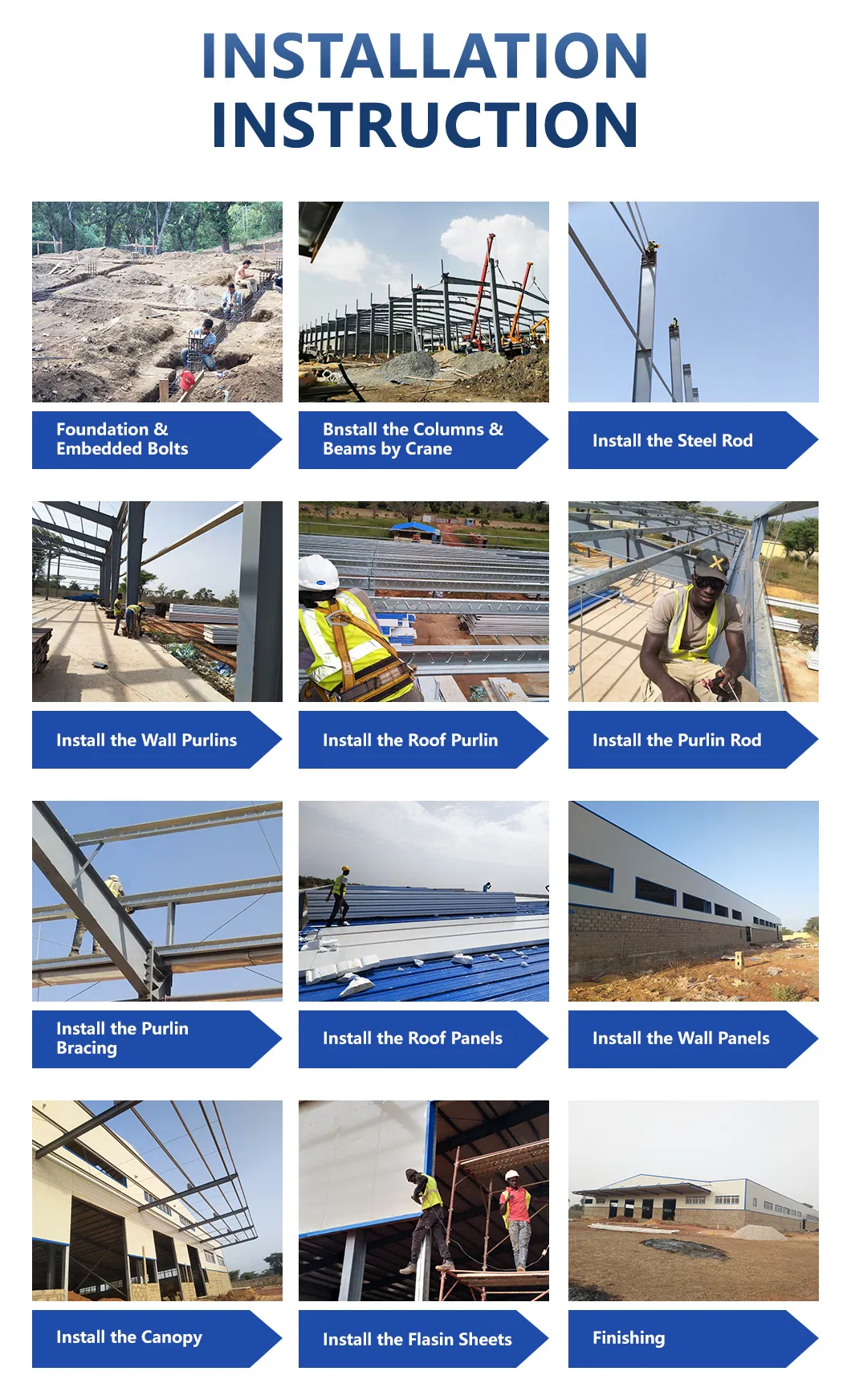

A: We provide detailed 3D installation drawings and videos. If required, we can send engineers for on-site supervision and training for an additional fee.

Q: What is the typical production capacity?

A: Our current production capacity is approximately 2000 tons of steel structures per month, ensuring timely delivery for large-scale projects.

Q: What surface treatments are available?

A: We offer various options including industrial-grade painting in any color or hot-dip galvanization for superior corrosion resistance.
