Modular Pallet Flow Rack System Scalable Design for Flexible Warehouse Layouts

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Pallet Flow Rack

Material

Steel (Q235)

Usage

Warehouse, Industrial, Food & Beverage, Supermarket

Height

5-15m

Load Capacity

200-2000kg

Pallet Size

1*1.2m or Customized

Mobility

Combined

Structure

Rack

Product Description

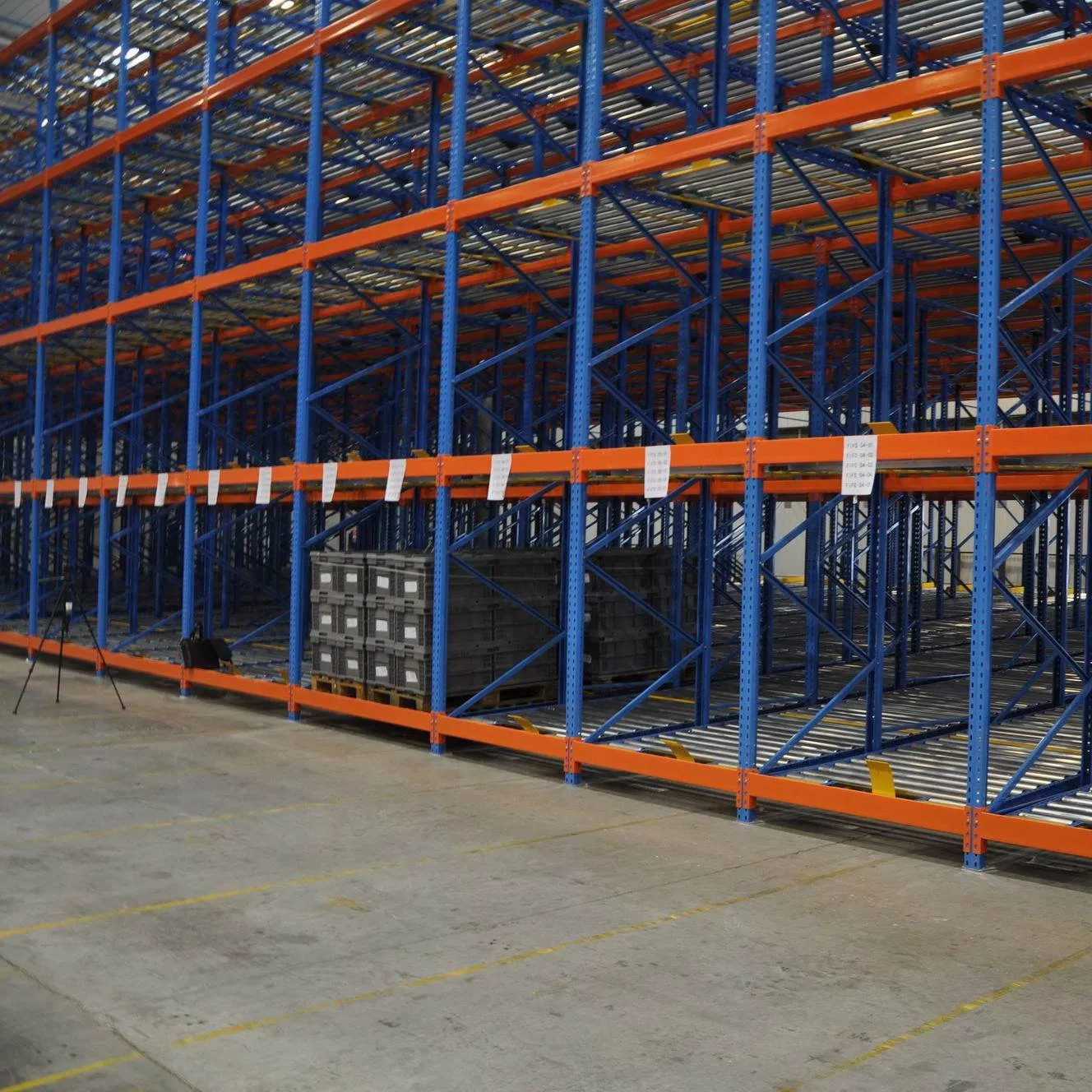

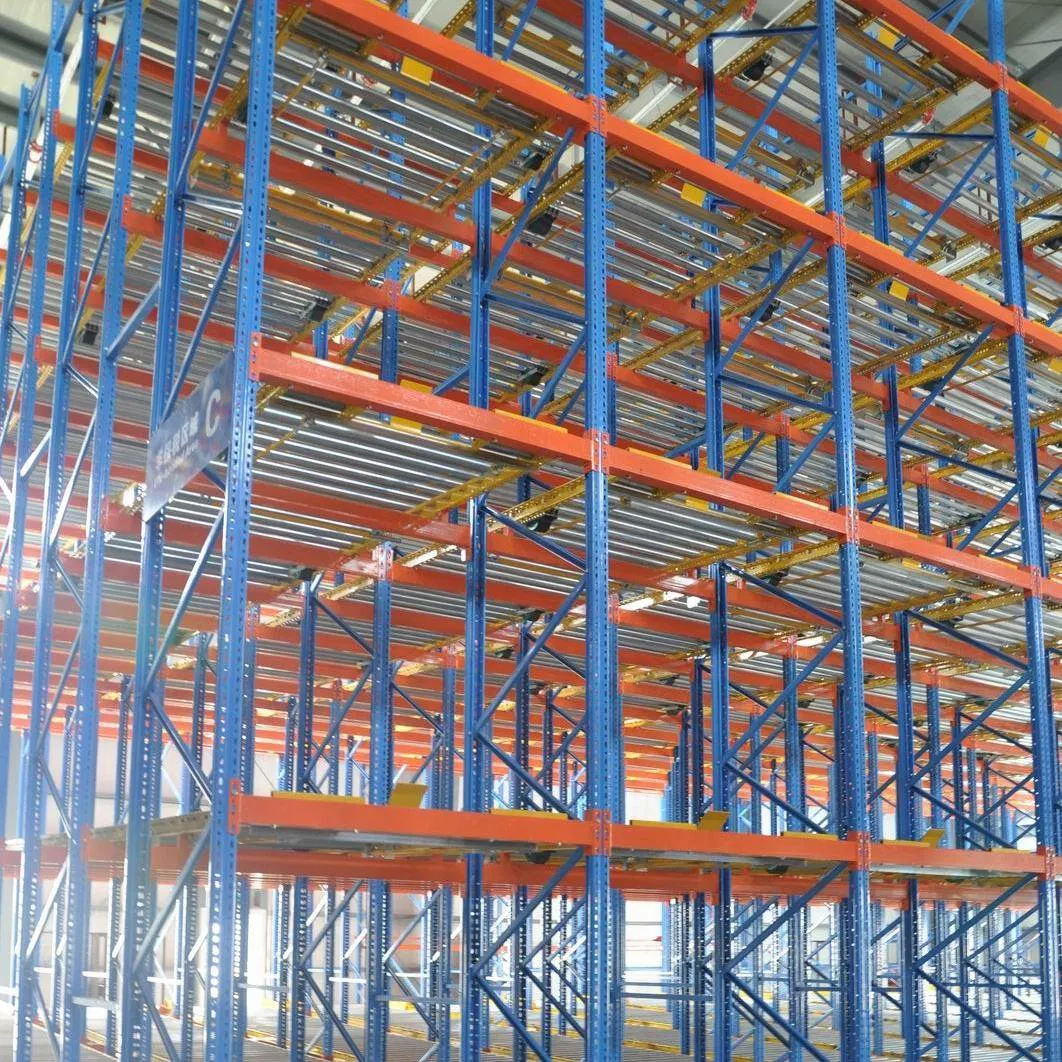

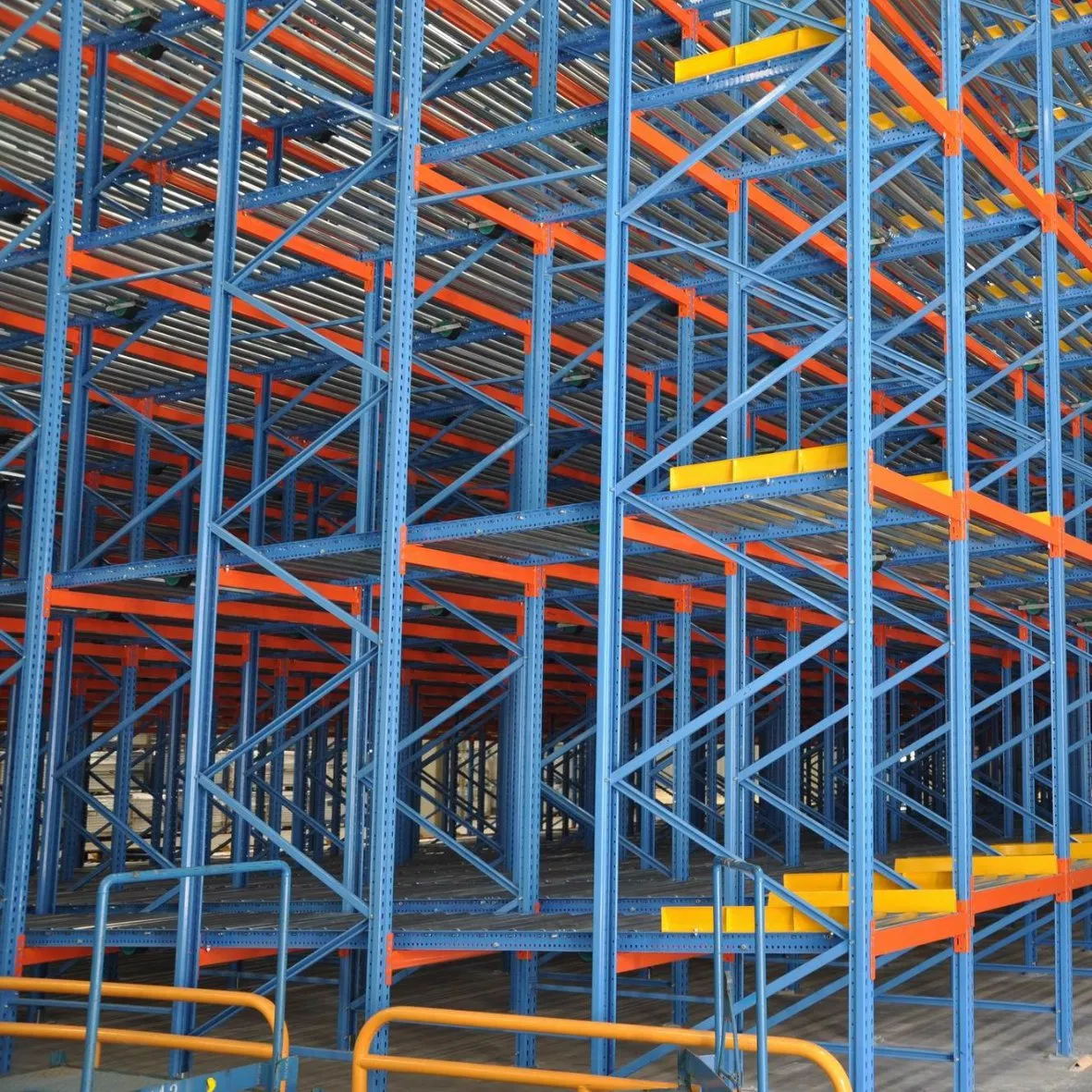

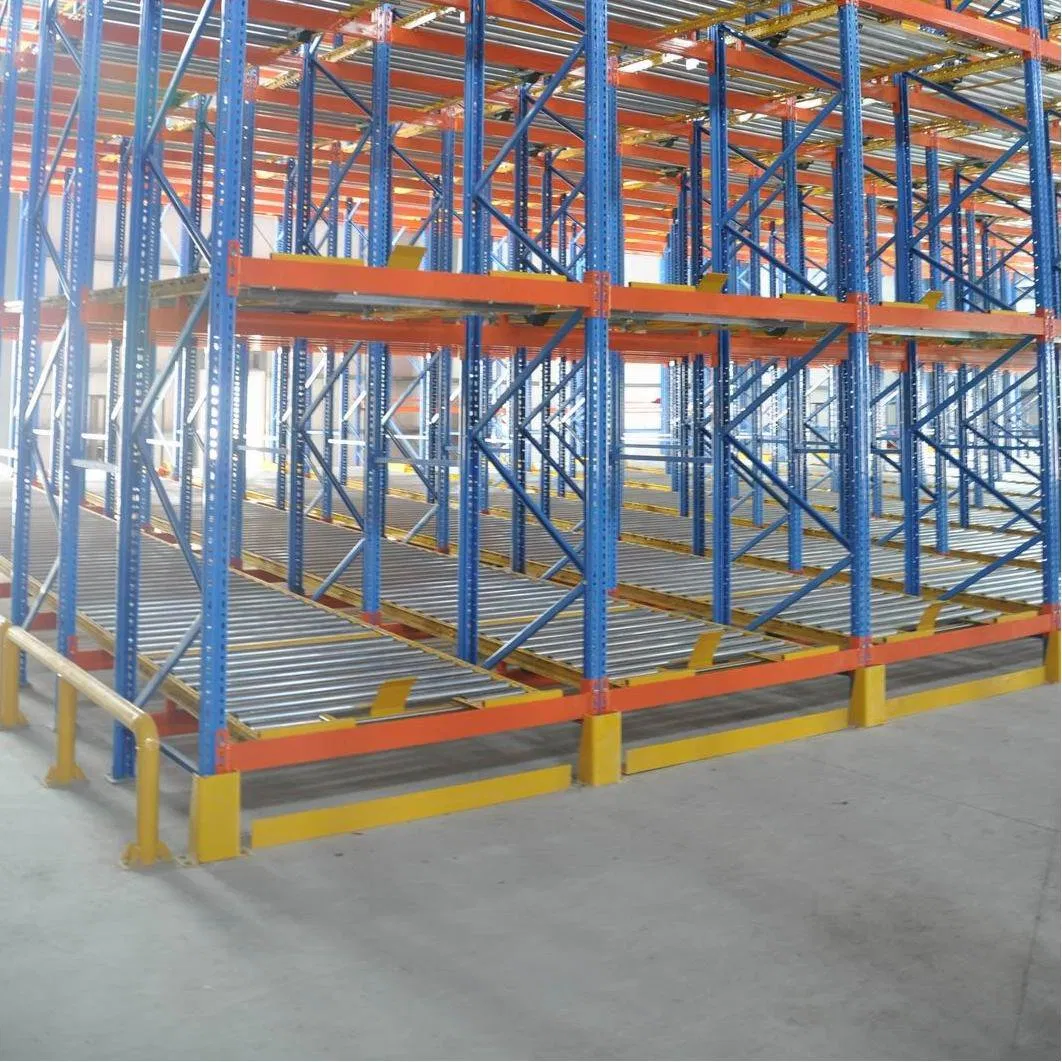

Live Racking — also known as 'Pallet Live Storage' or 'Pallet Flow Rack' — enables you to perfectly operate stored product rotation with the FIFO (First-in, First-out) system. This is ideal for critical stock turnover control in warehouses with space constraints. Stored goods with expiry dates or specific product batches are significantly easier to monitor.

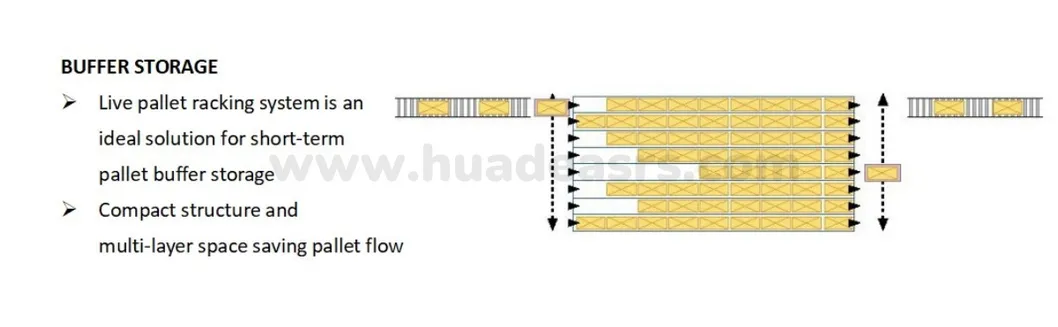

These systems are used as buffer storage for shipping, production, and incoming/outgoing goods. Dynamic flow racks work via gravity flow alone and do not require any electrical source. The design of the gravity roller conveyors can be adapted to specific goods using different roll divisions and brake rollers.

Features & Advantages:

Accommodates non-standard and non-uniform pallets.
Minimizes plastic pallet surfing issues.
Adaptable to all major manufacturers' rack structures.
Resistant to corrosion and reduces costly maintenance.
Robust, low-profile mounting brackets for maximum durability.

Technical Parameters

Product Name	Storage Racking	Style	Gravity Rack
Material	High-grade Steel	Colour	Blue, white, orange, green, etc.
Feature	Corrosion Protection	Size	Customizable
Application	Widely used in heavy industries and high-density storage

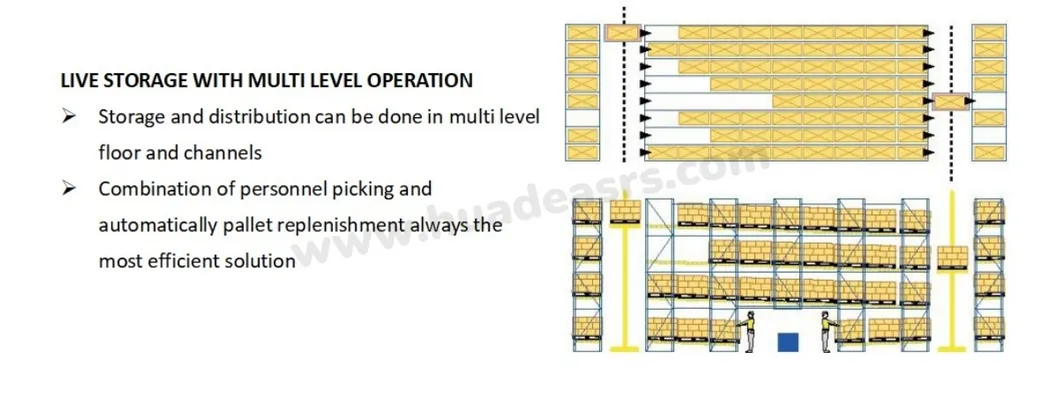

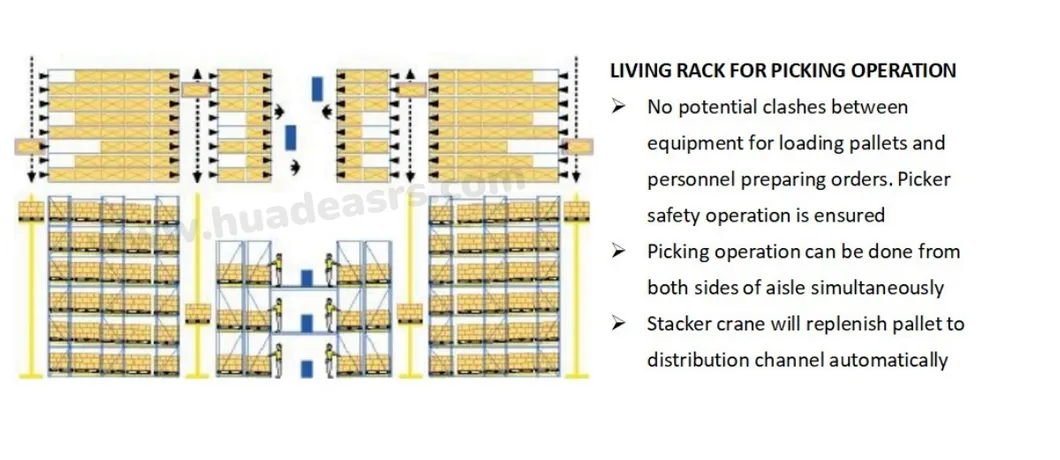

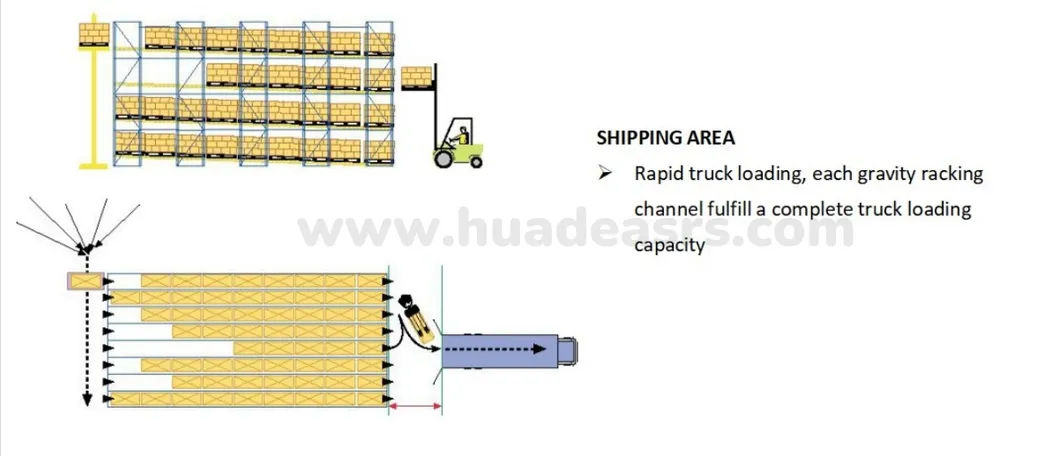

Applications & Scenarios

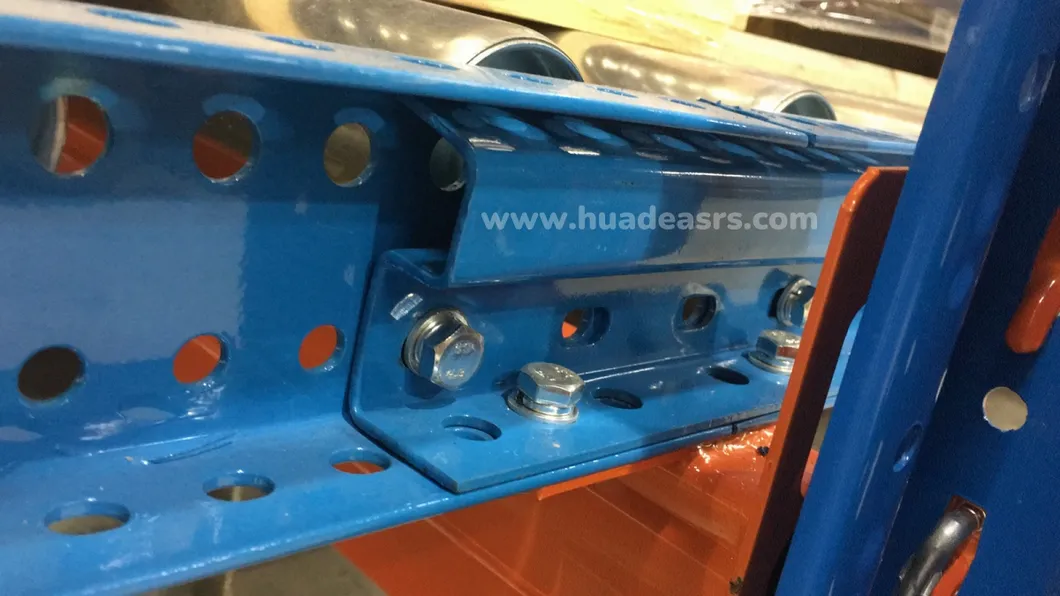

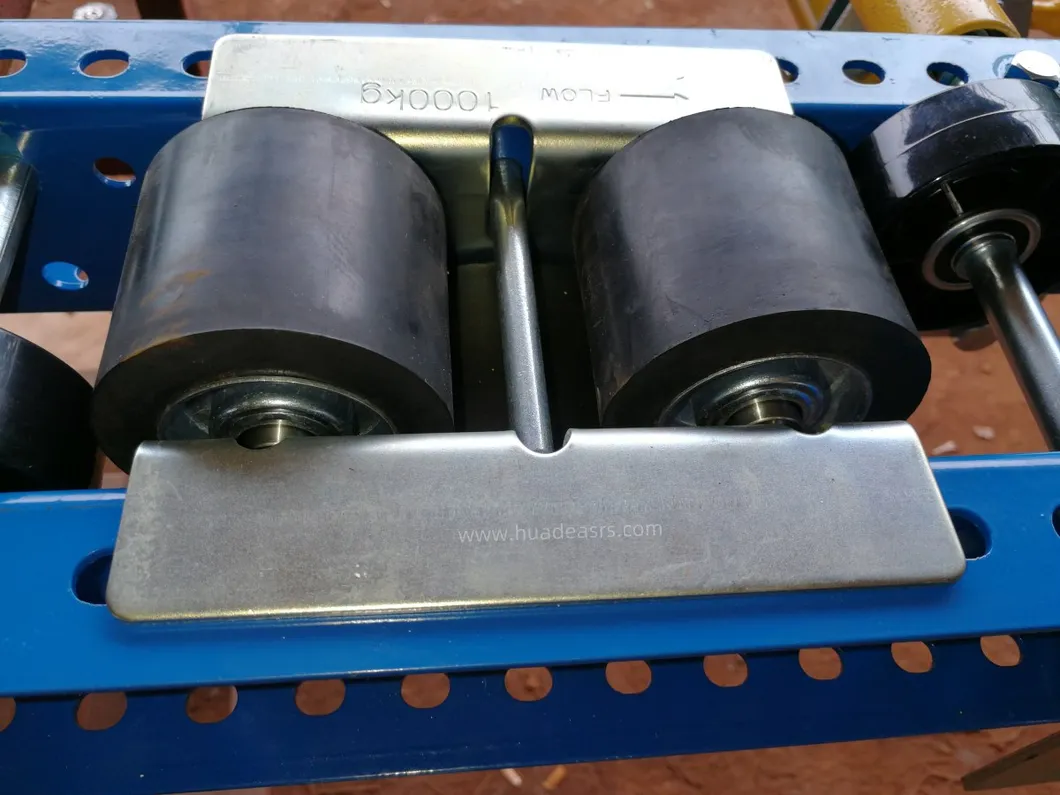

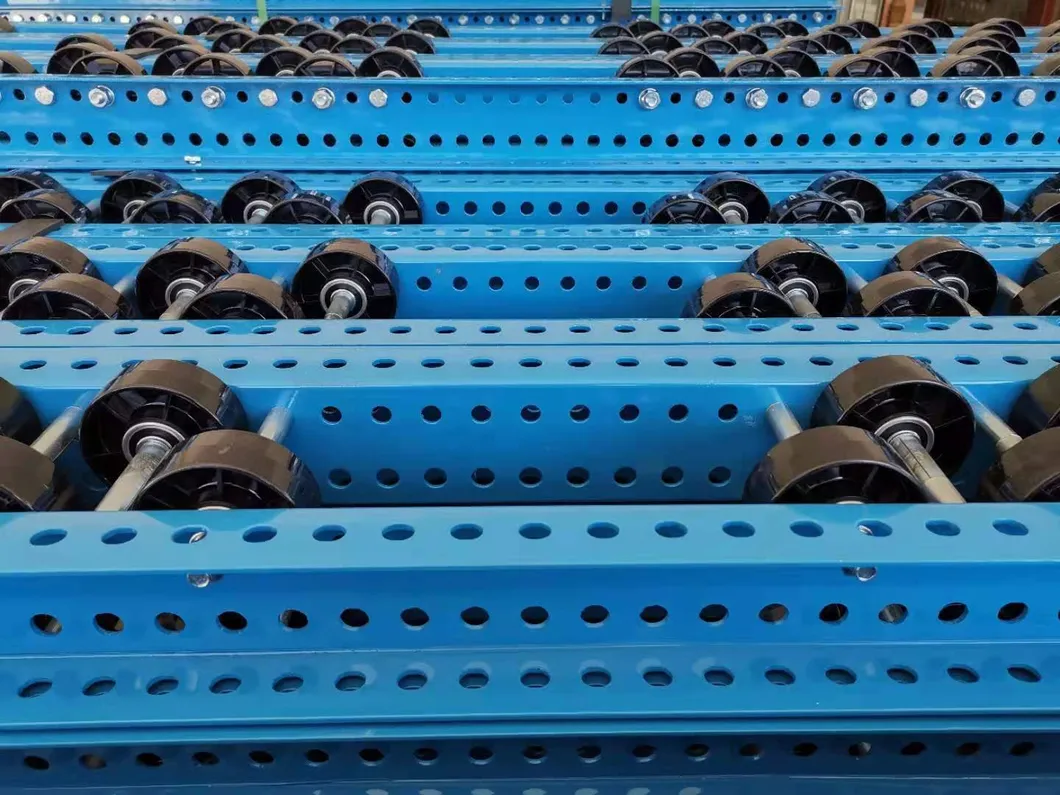

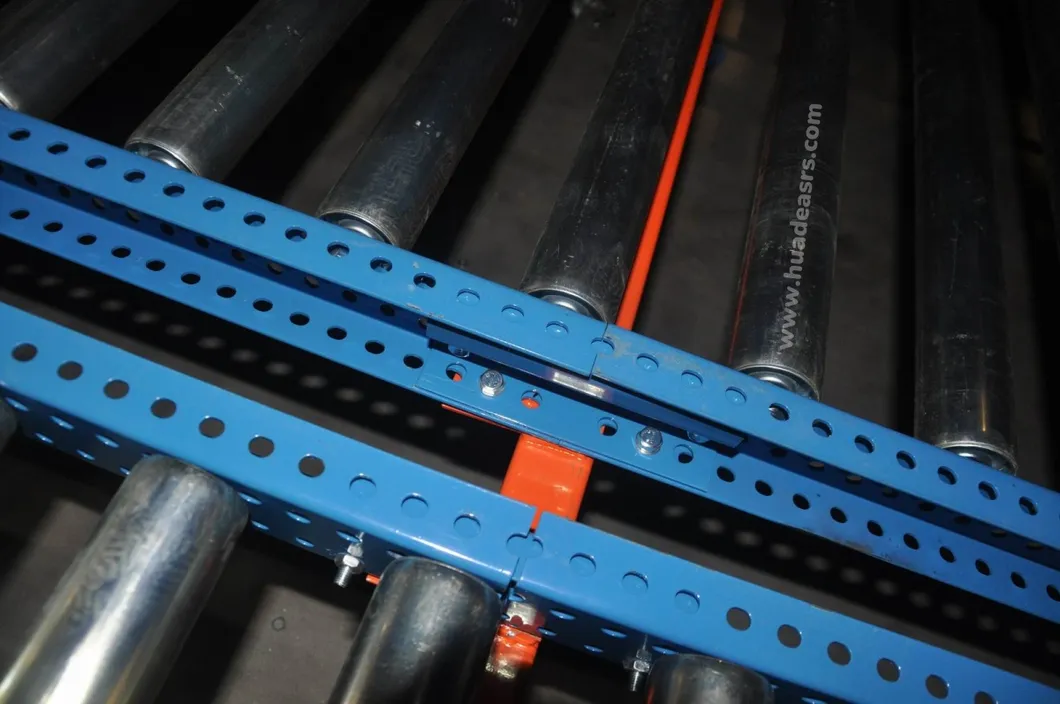

Design Details

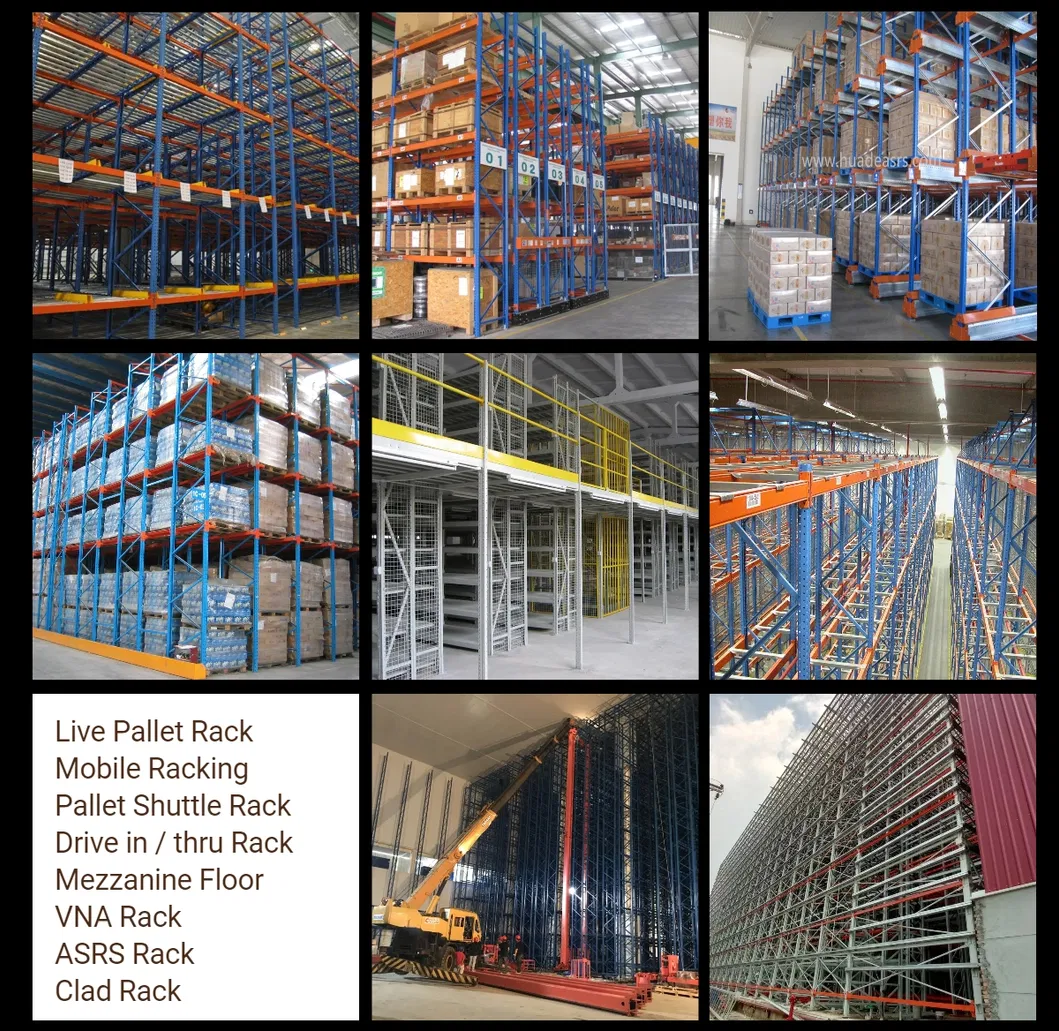

Product Showcase

Frequently Asked Questions

What types of automated storage solutions are available?

We offer Pallet Type AS/RS (Unitload), Miniload systems for boxes/crates, Shuttle Storage, and Rack-supported buildings, alongside semi-automated solutions like Radio Shuttle and Electrical Mobile Racking.

How does a Pallet Flow Rack system work?

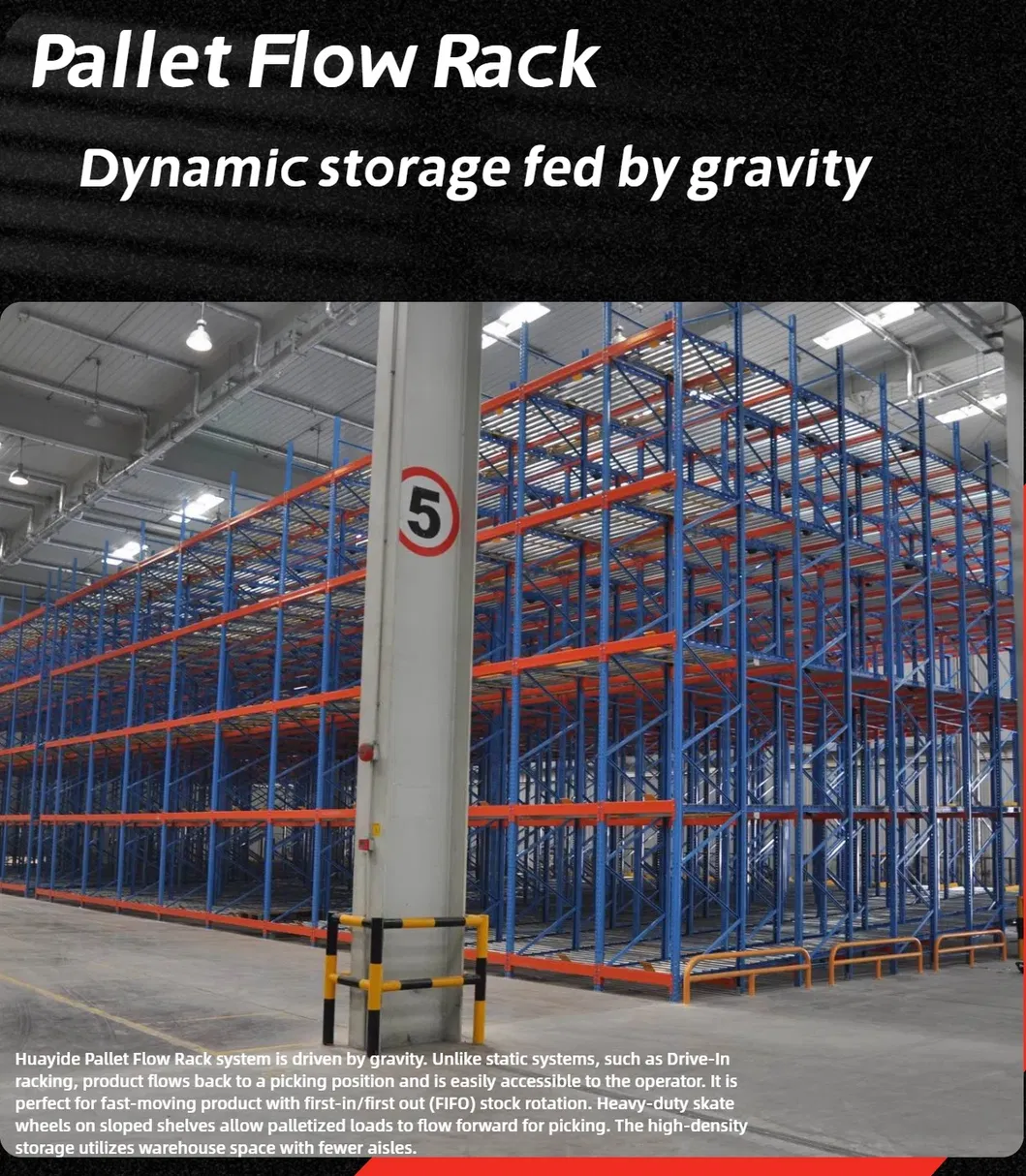

Dynamic flow racks operate via gravity flow. Pallets are loaded from one side and slide down on roller conveyors to the removal side, perfectly supporting FIFO (First-in, First-out) logistics.

Does the system require an electrical power source?

No, gravity flow racks operate purely on gravity and mechanical brake rollers, making them an energy-efficient and cost-effective storage solution.

What is the typical project workflow for a warehouse solution?

The process involves 6 steps: Defining objectives, Measuring data, Analyzing operating systems, Designing the model, Validating feasibility/costs, and finally presenting the best solution.

Can these racks handle non-standard pallets?

Yes, our systems are designed to accommodate non-standard and non-uniform pallets, and the roller divisions can be adapted to specific load requirements.

What services are included in a turnkey solution?

Turnkey solutions include engineering consulting, design, manufacturing, implementation, training, commissioning, and comprehensive after-sales service.
