Our rectifiers bring advanced technology to the DC power industry. Innovative engineering combines the best in efficiency and reliability to meet the power requirements for a variety of system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical and industrial uses.

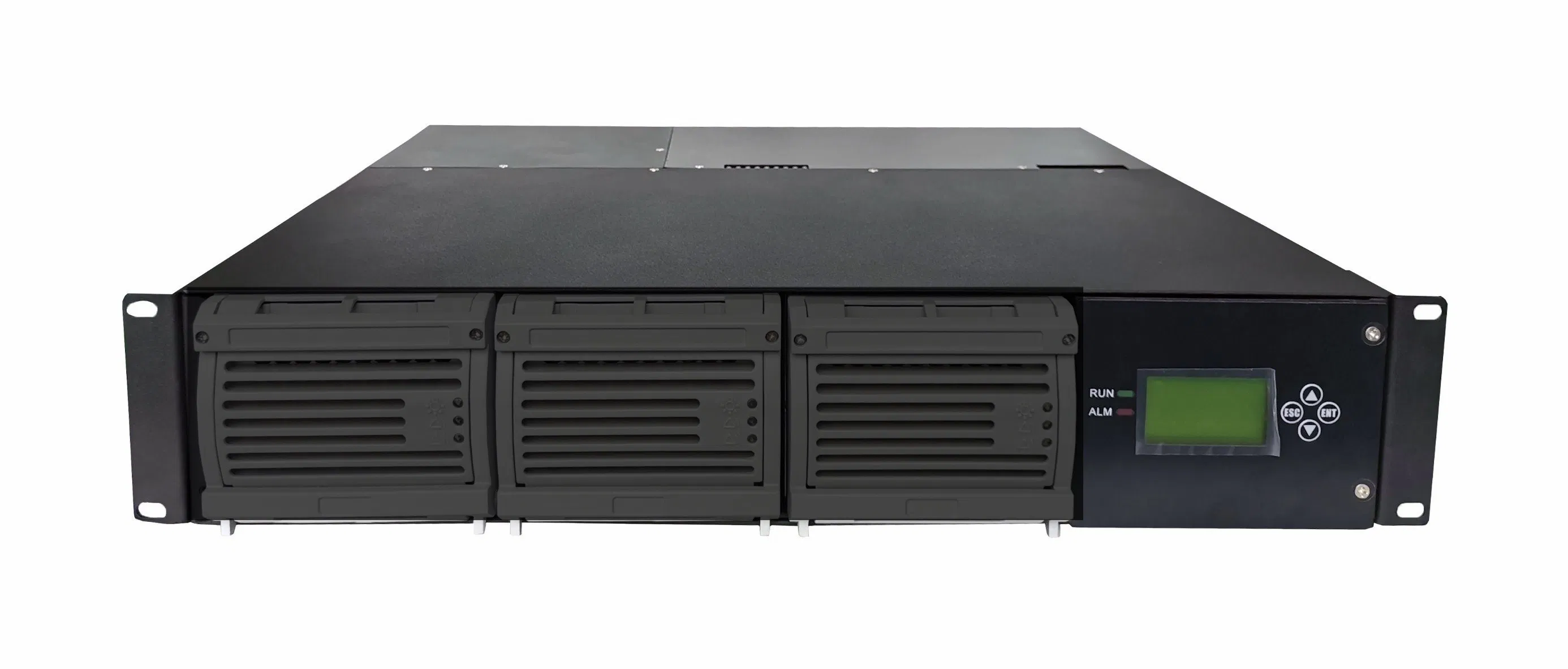

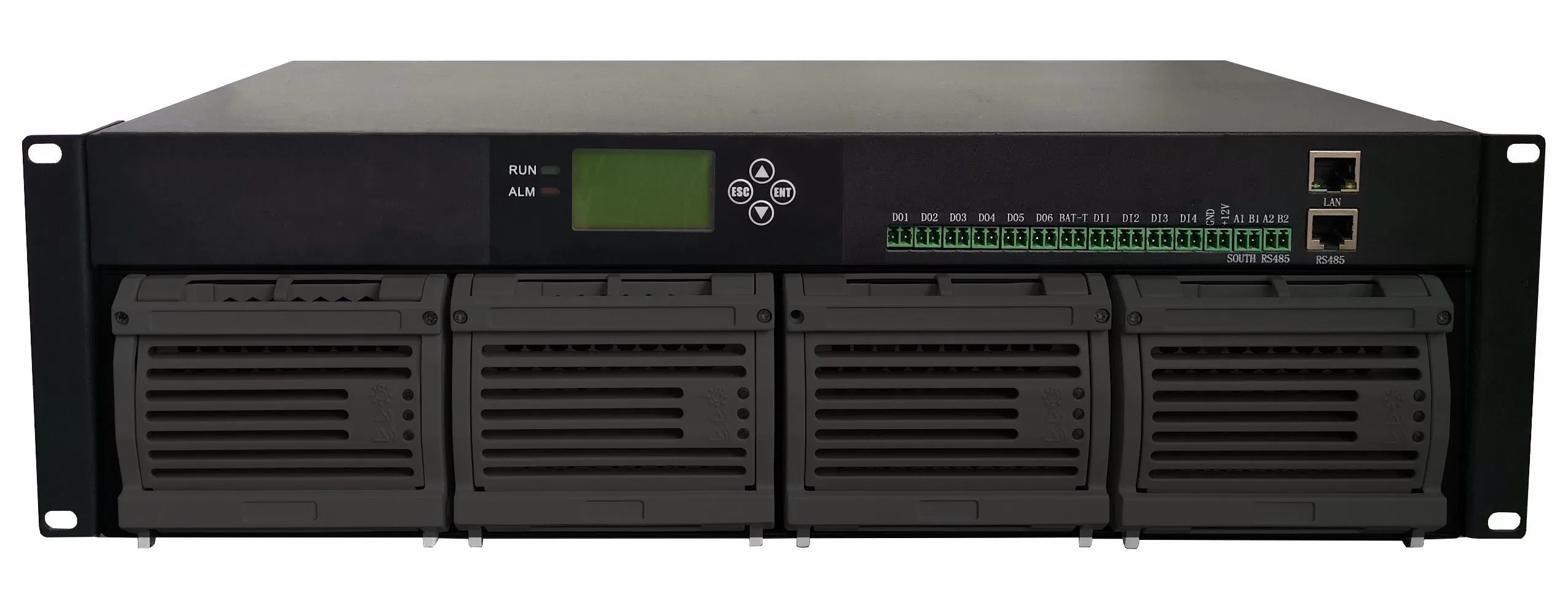

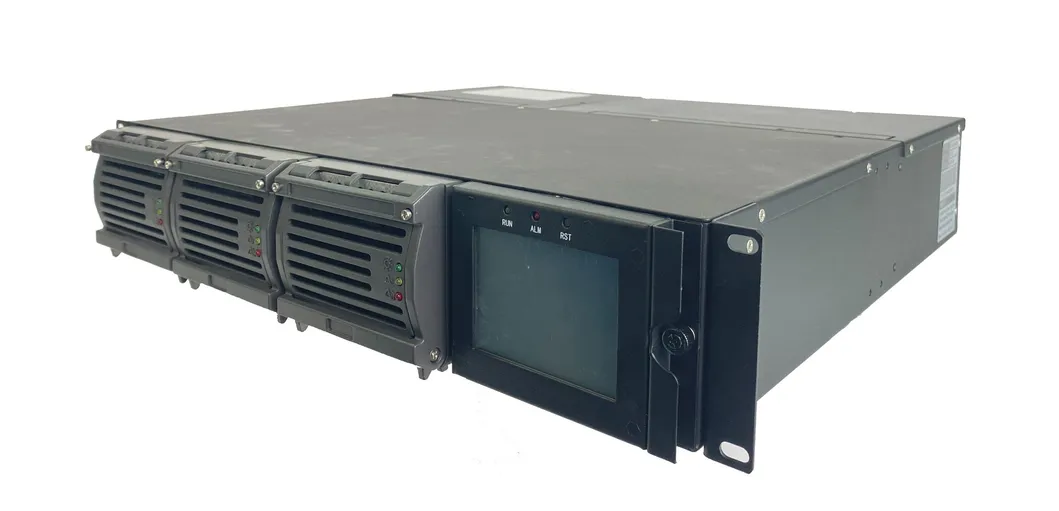

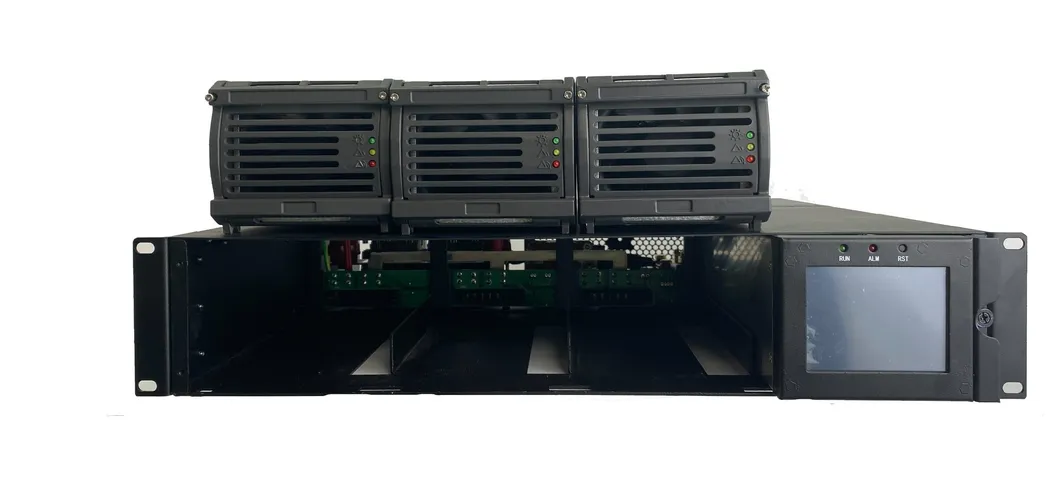

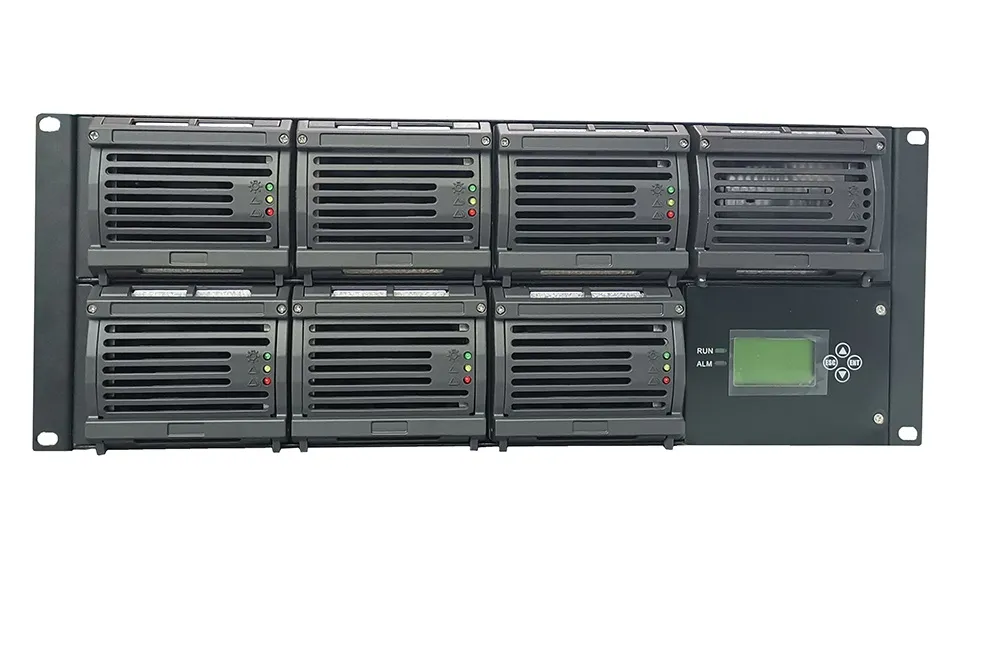

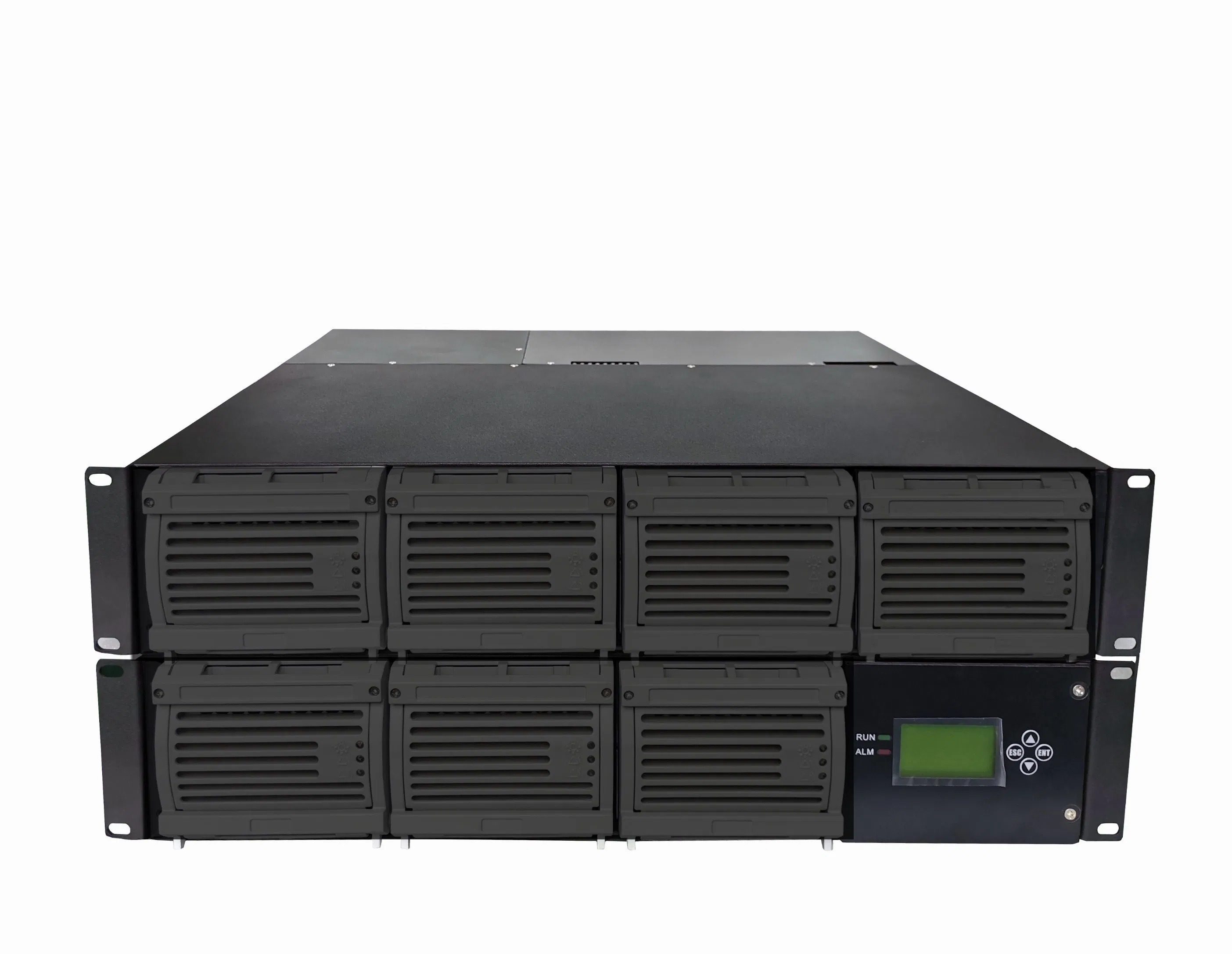

The fan cooled rectifier module has extremely high density providing the most power in the least amount of space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U 19in shelf.

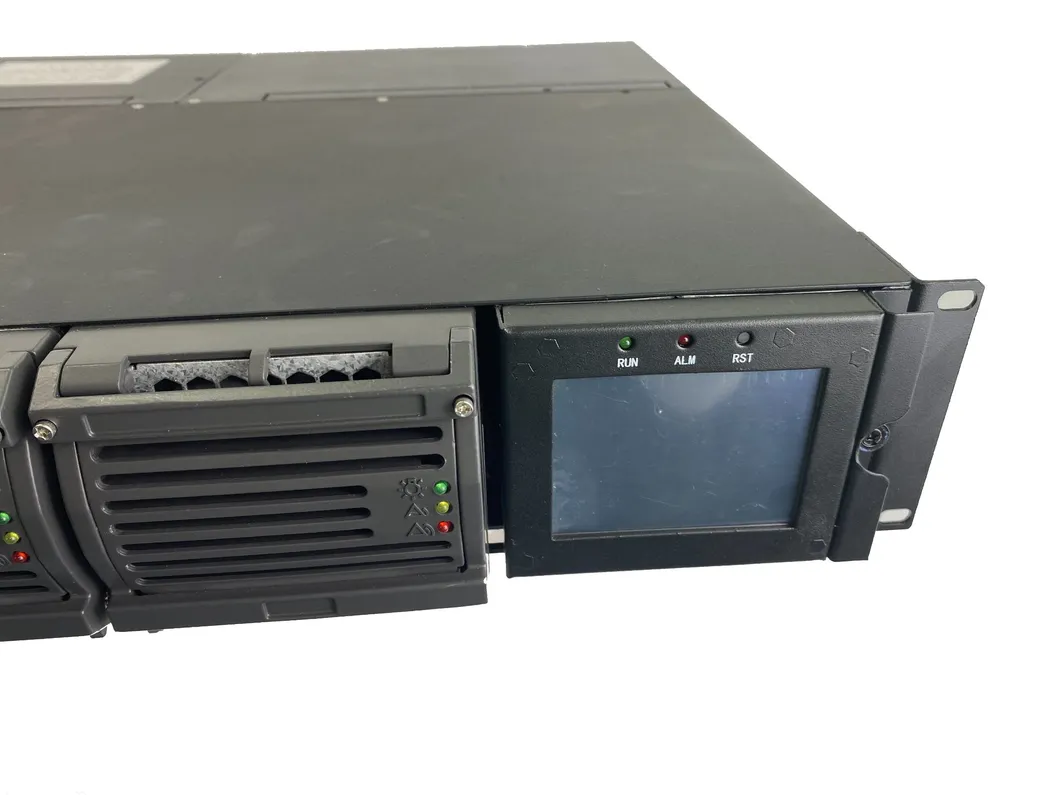

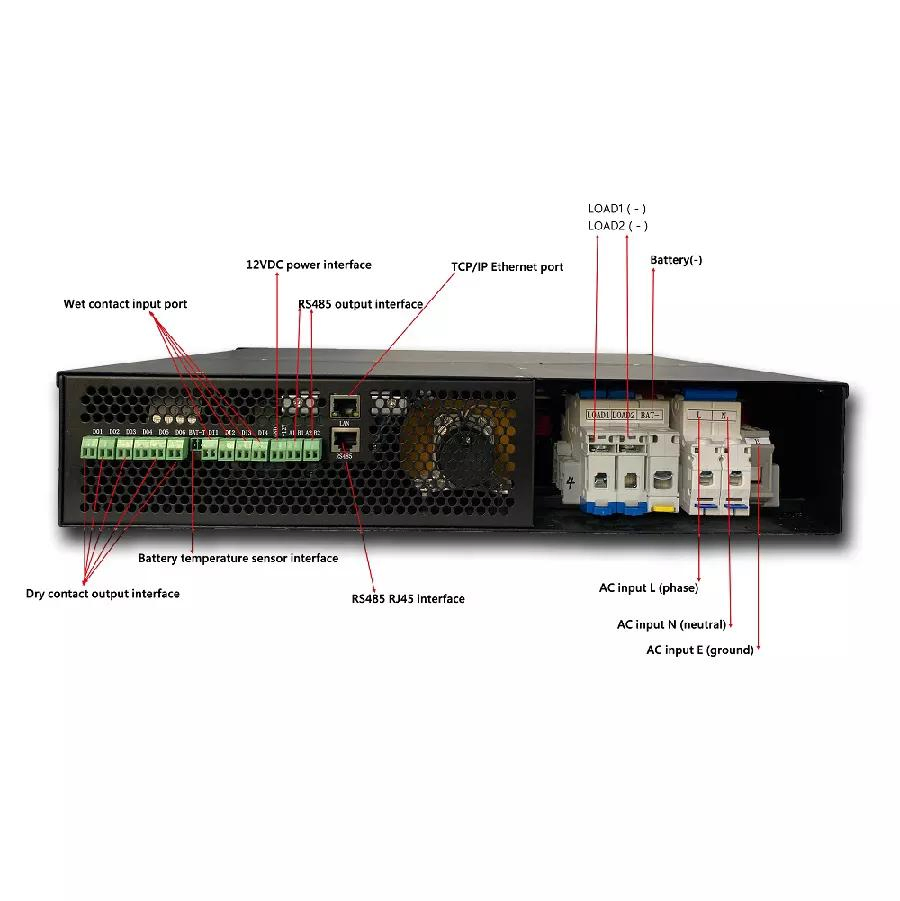

Local and remote setup, adjustment and control is a simple, single-step process with the rectifier System Controller. By utilizing TCP/IP technology, complete configuration and monitoring of power equipment is possible through a standard browser interface.
| MODEL | 30A Series | 70A Series | 110A Series | |
|---|---|---|---|---|
| Environmental | Operating Temp | -40°C ~ 55°C | ||
| Altitude | ≤ 2000m | |||
| AC Input | Input Range | 90VAC ~ 280VAC | 323-437VAC | |
| Power Factor | ≥ 0.99 | |||
| DC Output | Nominal Voltage | 220VDC | ||
| Capacity | 7.5kW | 17.5kW | 27.5kW | |
| Efficiency | ≥ 93.2% | |||
High Frequency Conversion: The converter utilizes Switch Mode techniques operating at 20 KHz and above. Resettable Fuses are provided to protect the module against failure of control circuits.
Intelligent Cooling: Switching ON and OFF the fan is temperature controlled. In case of fan failure, the module switches off above 70°C and restores automatically when cooled.
Operating Modes: Supports "Auto Float cum-Boost charger" modes. Float voltage for VRLA battery is 2.25V and Boost is 2.3V/Cell.
