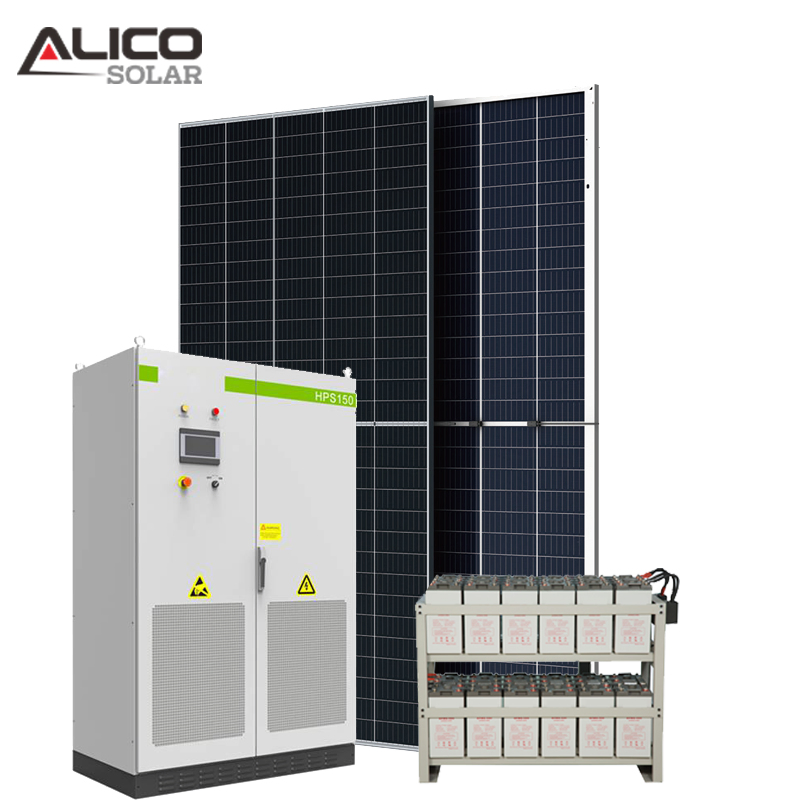

| Component Name | 2000KW On & Off & Hybrid System Description | Quantity |
|---|---|---|
| Solar Panel | Mono 550Watt PV Module | 3636 Pieces |
| DC Disconnect Switch | IP66 1000VDC 16A | 2 Set |
| On-Grid Inverter | 120KW Three Phase | 18 Set |
| AC Disconnect Switch | IP 66 1000VDC 32A | 1 Set |

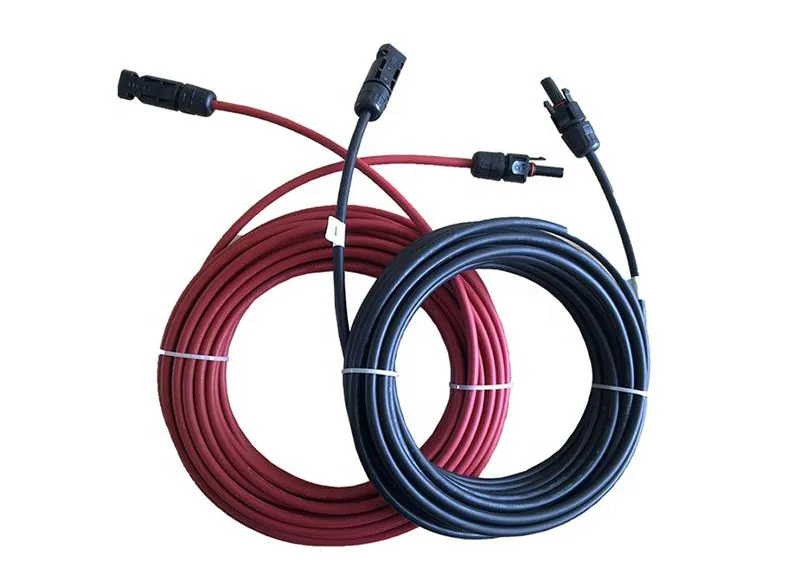

| DC Cable | 6 mm2 | 8000 Meters |
| MC4 Connector | 6 mm2 1000VDC | 20 Pairs |
| Mounting System | Standards Pitched Roof (Customized Optional) | 1 Set |
| PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 10 Set |
| Off-grid Inverter | 500KW Three Phase | 4 Sets |
| Hybrid Inverter | 500KW Three Phase | 4 Sets |
| Battery bank | Gel / OPZV / Lithium batteries | Multiple sets |
Note: Product dimensions and physical appearance are nominal. The manufacturer reserves the right to make product changes from time to time without prior notification.
| 1. Solar Panel | 2. On-Grid Inverter | 3. Switch Box | 4. Power Meter |

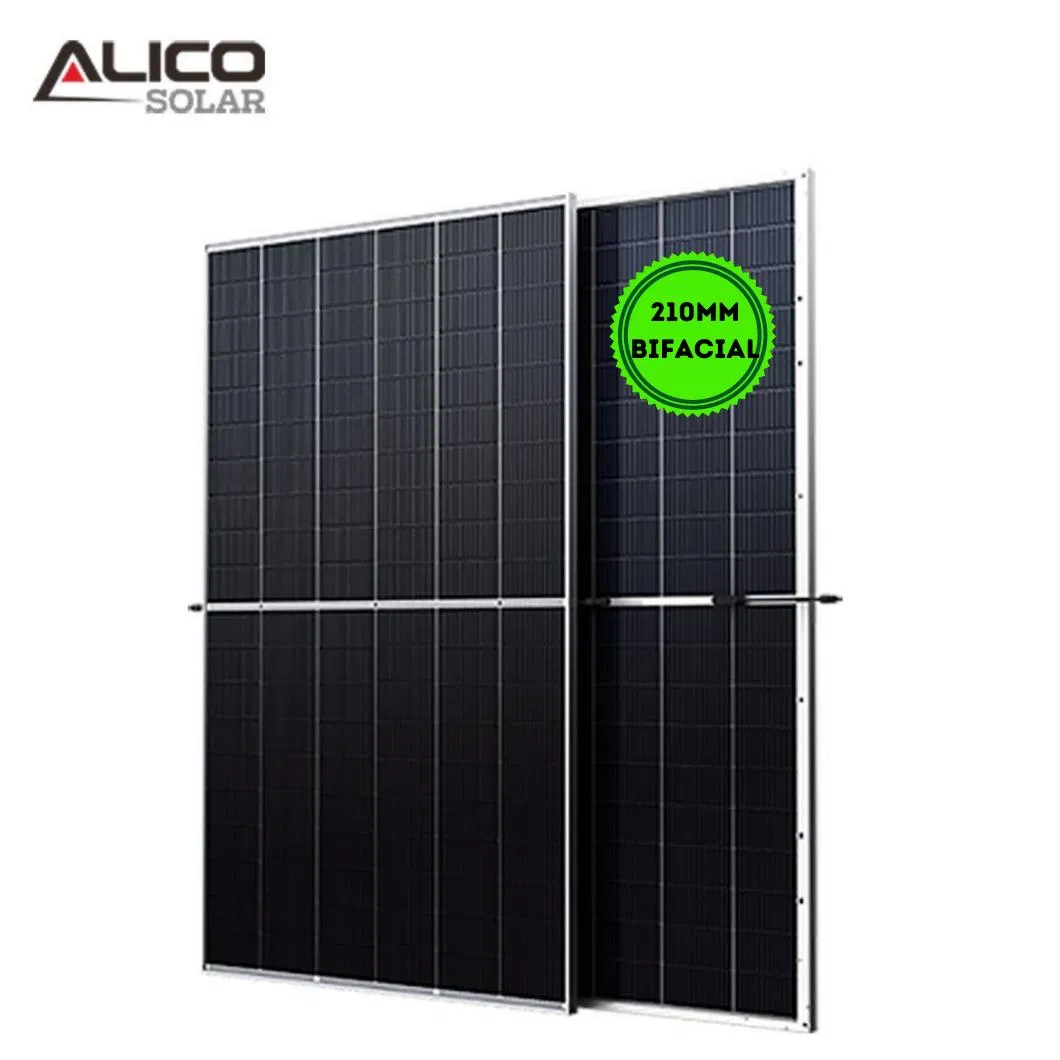

Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard quality
12 years warranty quality
30 years warranty power

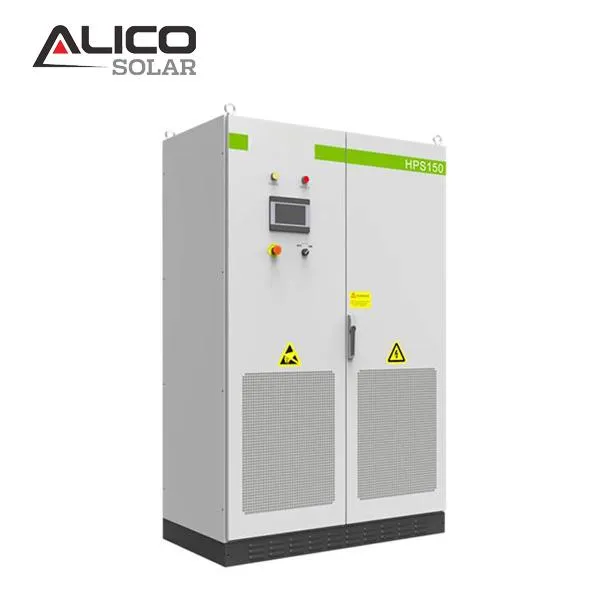

Max. DC Input Power: 1000KW*2
Max. DC Input Voltage: 1200V
MPPT Voltage Range: 90-1000V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380V; 400V
Warranty: 5-10 Years

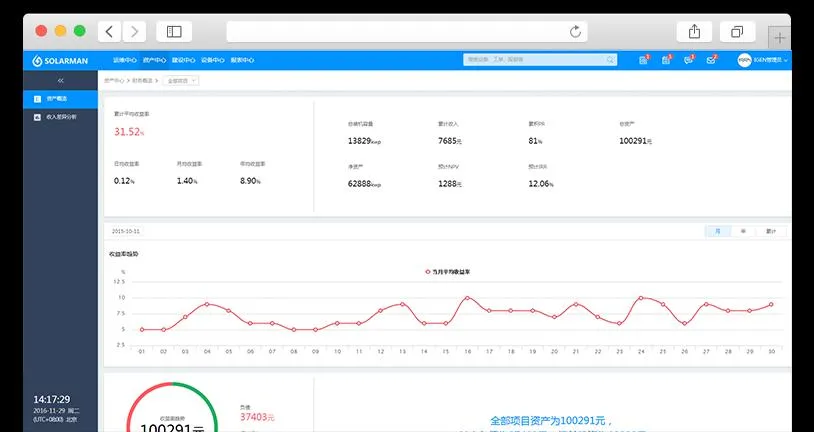

Wifi/Lan/GPRS Monitoring Optional
Data Logging Stick allows you to receive information from your solar power system in real-time. Accessible via web server, Wi-Fi, Lan, or GPRS. App available for PC, iOS & Android.

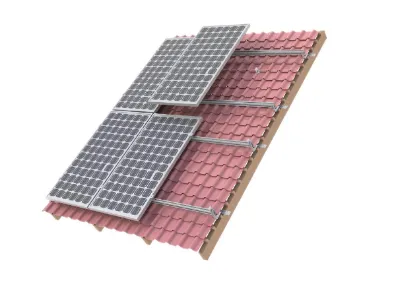

Mounting Rail & Splice Kit: AI6005 & SUS304 Bolt
Mid & End Clamps: 35-50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clips & Grounding Lugs Optional
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL) / 1000VDC(TUV)
Rated Current: 55A / 70A
Lifetime: ≤25 Years

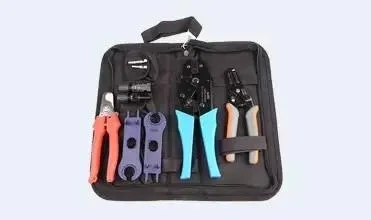

Wire Cable Cutter & Stripper
MC3/MC4 Crimper
MC4 Connectors Assembly & Disassembly Tools
